Fatshark Attitude V3 Setup with P4

Joined
Jan 2, 2017
Messages
23
Reaction score
1
Age
28
hey guys, I've been flying racing quads for about a year now and just picked up a P4 to start up my aerial videography business. I have a set of fatshark attitude v3 goggles which I use to fly my alien 5" build, is there anyway I can setup my V3s to work with the Phantom? Any help is greatly appreciated!

Joined
May 25, 2015
Messages
1,219
Reaction score
373
Age
80
Location
London UK
You need goggles with an HDMI input if you want to use them with your P4, so I think sadly, the answer is no.

Joined
Jan 2, 2017
Messages
23
Reaction score
1
Age
28
You need goggles with an HDMI input if you want to use them with your P4, so I think sadly, the answer is no.
Maybe I can use a converter or something to convert the hdmi to composite?

Joined
May 25, 2015
Messages
1,219
Reaction score
373
Age
80
Location
London UK
This thread indicates that it's possible, but results not good? HDMI to RCA converter to connect FS Attitude tp Ph4

To use the HDMI feed, you either need to buy the DJI HDMI module for your controller, or use a tablet like the Nvidia Shield K1 which has HDMI out. (On the goggles side, other possibility would be to upgrade to the Dominator V3 if you're feeling rich!)

  • Like
Reactions: steal2bits

msinger

Approved Vendor
Joined
Oct 30, 2014
Messages
31,114
Reaction score
10,348
Location
Harrisburg, PA (US)
Here's what you must do:

1) Install the HDMI output module on the back of your Phantom remote controller like this.
2) Upgrade the remote controller firmware from within DJI GO (if prompted to do so).
3) Connect the goggles to the HDMI output module with a mini HDMI cable.

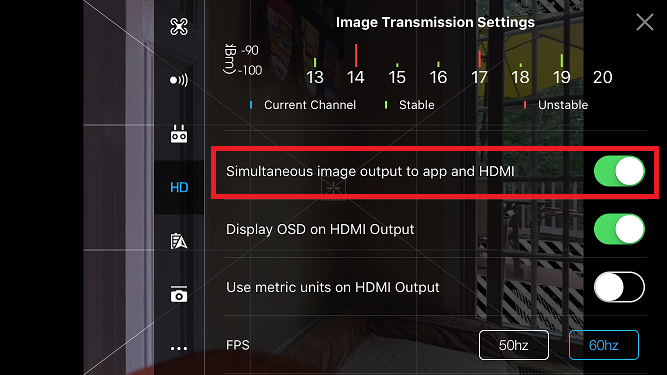

4) Enable the image output in the following section of DJI GO:


Joined
Jan 2, 2017
Messages
23
Reaction score
1
Age
28
Here's what you must do:

1) Install the HDMI output module on the back of your Phantom remote controller like this.
2) Upgrade the remote controller firmware from within DJI GO (if prompted to do so).
3) Connect the goggles to the HDMI output module with a mini HDMI cable.
4) Enable the image output in the following section of DJI GO:

View attachment 72248
Thanks msinger but my fatshark only has component hook ups.. Do you think it would work if I hooked up a hdmi to component adapter to the dji hdmi box before plugging in to my goggles?

Joined
May 23, 2016
Messages
946
Reaction score
214
Age
56
On my views it's going to be;
- more complicated setup with more cables and box
- increased risk of video loss (plug disconnect, cheap hardware)
- RC battery drain, not sure how many mAh required for the box? Supported by RC?
- quality loss as reported by some pilot

For me sounds like buying high grade disc player but cheap speakers.. but can understand money side.

Sent from my iPhone using PhantomPilots

Last edited:
Joined
Jan 2, 2017
Messages
23
Reaction score
1
Age
28
On my views it's going to be;
- more complicated setup with more cables and box
- increased risk of video loss (plug disconnect, cheap hardware)
- RC battery drain, not sure how many mAh required for the box? Supported by RC?
- quality loss as reported by some pilot

For me sounds like buying high grade disc player but cheap speakers.. but can understand money side.

Sent from my iPhone using PhantomPilots
Thanks for the input, I'll probably just stick to using my iPad Air. I don't really need the FPV goggles since I'm using it to record Real Estate and Wedding videos anyways.. Just thought it would be cool to try it out. May wait until DJI comes out with some cool affordable goggles or something.

Thanks again,
SoyFPV

Joined
May 23, 2016
Messages
946
Reaction score
214
Age
56
Thanks for reply, you will also look more professional. Note the optional HDMI board is an excellent investment. I'm using it with Dominator V3 but also for public video feed on TV monitors.


Sent from my iPhone using PhantomPilots

Joined
Jan 2, 2017
Messages
23
Reaction score
1
Age
28
Thanks for reply, you will also look more professional. Note the optional HDMI board is an excellent investment. I'm using with Dominstor V3 but also for public video feed on TV monitors.


Sent from my iPhone using PhantomPilots
So with dominatorV3s do you still get the DJI interface in yr feed or is it just the video? Also routing yr feed to a live feed on a television is a good idea for an upsale for wedding party ;)

Joined
May 23, 2016
Messages
946
Reaction score
214
Age
56
In DJI GO you can enable an option to see telemetry data on the top and at the bottom of the video feed but it's not same as in the tablet. More basic info like for jet pilots.

Note extra HDMI option only available when board installed and software upgraded.


Sent from my iPhone using PhantomPilots

  • Like
Reactions: SoyFPV

msinger

Approved Vendor
Joined
Oct 30, 2014
Messages
31,114
Reaction score
10,348
Location
Harrisburg, PA (US)
So with dominatorV3s do you still get the DJI interface in yr feed or is it just the video?
This video shows what the view looks like inside the goggles:


  • Like
Reactions: SoyFPV
Joined
Dec 21, 2016
Messages
27
Reaction score
15
Age
32
Joined
May 23, 2016
Messages
946
Reaction score
214
Age
56
The guy who did this video said he set yaw and camera tilt as slow setting in GO app for smooth movements and for precise orbiting he used auto flight mode "Point of interest".

(Text edited)

Sent from my iPhone using PhantomPilots

Last edited:
  • Like
Reactions: shaun nadan

J&W

Joined
Mar 18, 2016
Messages
29
Reaction score
11
Age
64
Great wedding video. Curious how did you get around the probation of flying over people not involved? Is being in the wedding enough to consider they are participants or did you get signed waivers?
