4k Camera showing white/black lines in overexposed areas after minor crash

Joined
Jan 13, 2019
Messages
2
Reaction score
0
Age
19
Location
Stockholm
Hi, i recently had a minor crash with my Phantom 3 4k and now the camera shows odd behaviors that i haven't found any information about.

So basically what happened was that i flew into a tree at about 1.5 meters height (4-5 feet) and the drone crashed into the grass under the tree. The camera UV-filter shattered and i had to replace it so. I ordered a new ND-filter because it was cheaper and i figured that i would need it later on anyways. This was a original DJI ND4-filter that i bought from a trusted scandinavian seller. I mounted the filter and it went fine, a couple days later when i flew for the first time after the crash (the weather was bad so i had to wait) i saw some weird behavior in the DJI Go app, i thought this was just in the app so i checked the footage from the SD card and the problems were there too. Something worth mentioning is that the gimbal worked fine and the aircraft flew just as good as before.

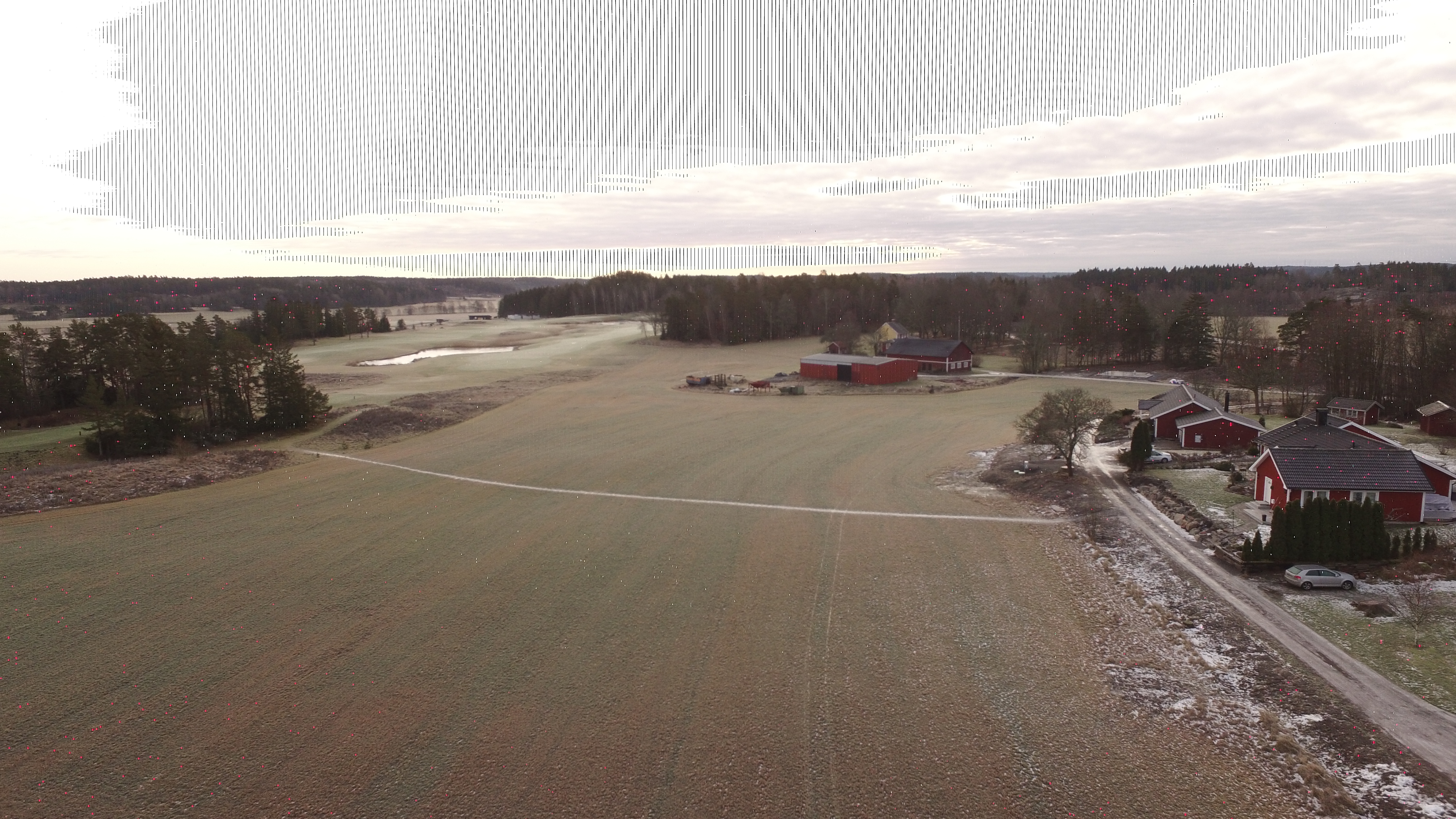

This is from the first flight after the crash:
DJI_0043_good_example_of bad_image.JPG


As you can see there's these black and white lines at the top of the image and there's some white and red dots scattered across the image. These are not dead pixels i think cause they move around in the video.

Then i got in contact with the DJI support and they said i should try to reset the camera settings in the app. And so i did.

This is after the reset:

This image is marginally better but still unusable for any edits or stuff like that.

This is also after the reset but with another wierd behavior:


There's this big cerise line across the image.

Can anyone help me, do i need to replace the flex ribbon cable or the whole camera setup?

I bought the drone used and therefore it didn't have any warranty.

Kind regards
Albin W

Joined
Jun 30, 2016
Messages
979
Reaction score
344
Location
PL
I have an action cam with the same issue. I suspect it is caused by loose connections to the sensor; but the device is not worth enough to bother repairing - so I never opened it.

Anyway, your issue is in either the sensor board, or connection between sensor board and the board with Ambarella chip. The signal is already damaged when Ambarella receives it.

  • Like
Reactions: RodPad
Joined
Jan 13, 2019
Messages
2
Reaction score
0
Age
19
Location
Stockholm
So you mean like the cable between the camera and the "base of the gimbal"? It seems unlikely that the sensor board inside the camera would fail so easily, there was only a few scratches on the metal housing of the camera. The cable also has some gaps in it (if you look sideways) and there could be a possibility of water getting into it as there was about 1.5 cm of snow when I crashed.

Thank you for the reply, it seems to have helped me a bit.

I'm still open to suggestions for fixing the drone

Joined
Mar 4, 2019
Messages
30
Reaction score
47
Location
Nottingham UK
Hi,
I'm a newbie to the forum so only just spotted this topic.
You may have already resolved this issue but I was wondering if the black and white lines were caused by having the "over exposure warning" switched on in the dji go app ?
It's under settings in the camera menu, obviously you'll need to connect the phantom etc to access it.
That exposure warning causes black and white lines on the live feed but I don't know whether that would cause them to appear on the actual photos or video.
As for the strange colour bands, I used to get similar things happen on my trail camera and it seemed to be caused by formatting the SD card on a laptop instead of formatting it in the camera.
If that isn't the issue then maybe try a different SD card, it may have become corrupted during the crash.

Hope this helps


RodPad

Premium Pilot
Joined
May 20, 2015
Messages
5,727
Reaction score
1,149
Age
57
Location
Pacific,NorthWet, 97031
Hi,
I'm a newbie to the forum so only just spotted this topic.
You may have already resolved this issue but I was wondering if the black and white lines were caused by having the "over exposure warning" switched on in the dji go app ?
It's under settings in the camera menu, obviously you'll need to connect the phantom etc to access it.
That exposure warning causes black and white lines on the live feed but I don't know whether that would cause them to appear on the actual photos or video.
As for the strange colour bands, I used to get similar things happen on my trail camera and it seemed to be caused by formatting the SD card on a laptop instead of formatting it in the camera.
If that isn't the issue then maybe try a different SD card, it may have become corrupted during the crash.

Hope this helps
Dang, I also just saw this post, I have the same problem. It is not the over exposure warning, mine is on a P3A

I looked at his profile, he hasn't been on since Feb 10th 2019.

I have also tried different cards.

Rod


RodPad

Premium Pilot
Joined
May 20, 2015
Messages
5,727
Reaction score
1,149
Age
57
Location
Pacific,NorthWet, 97031
I have an action cam with the same issue. I suspect it is caused by loose connections to the sensor; but the device is not worth enough to bother repairing - so I never opened it.

Anyway, your issue is in either the sensor board, or connection between sensor board and the board with Ambarella chip. The signal is already damaged when Ambarella receives it.
This boards are the same in the Phantom or in all digital cameras?
Is this worth trying to fix, meaning I'm I going to need a magnifying glass just to see it?

Rod

Joined
Mar 9, 2019
Messages
4
Reaction score
0
Age
62
Hi, i recently had a minor crash with my Phantom 3 4k and now the camera shows odd behaviors that i haven't found any information about.

So basically what happened was that i flew into a tree at about 1.5 meters height (4-5 feet) and the drone crashed into the grass under the tree. The camera UV-filter shattered and i had to replace it so. I ordered a new ND-filter because it was cheaper and i figured that i would need it later on anyways. This was a original DJI ND4-filter that i bought from a trusted scandinavian seller. I mounted the filter and it went fine, a couple days later when i flew for the first time after the crash (the weather was bad so i had to wait) i saw some weird behavior in the DJI Go app, i thought this was just in the app so i checked the footage from the SD card and the problems were there too. Something worth mentioning is that the gimbal worked fine and the aircraft flew just as good as before.

This is from the first flight after the crash:
View attachment 107297

As you can see there's these black and white lines at the top of the image and there's some white and red dots scattered across the image. These are not dead pixels i think cause they move around in the video.

Then i got in contact with the DJI support and they said i should try to reset the camera settings in the app. And so i did.

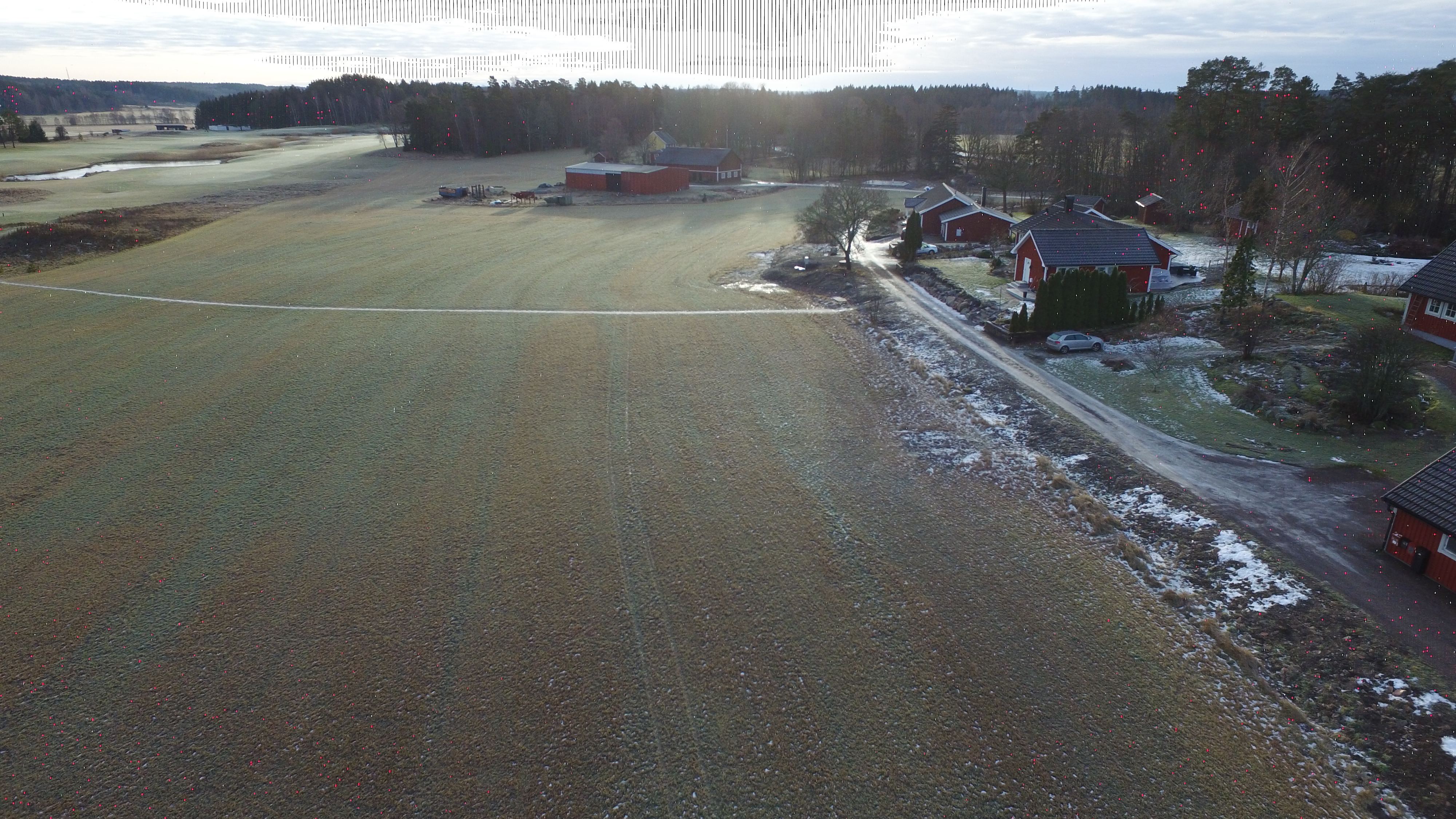

This is after the reset:
View attachment 107298
This image is marginally better but still unusable for any edits or stuff like that.

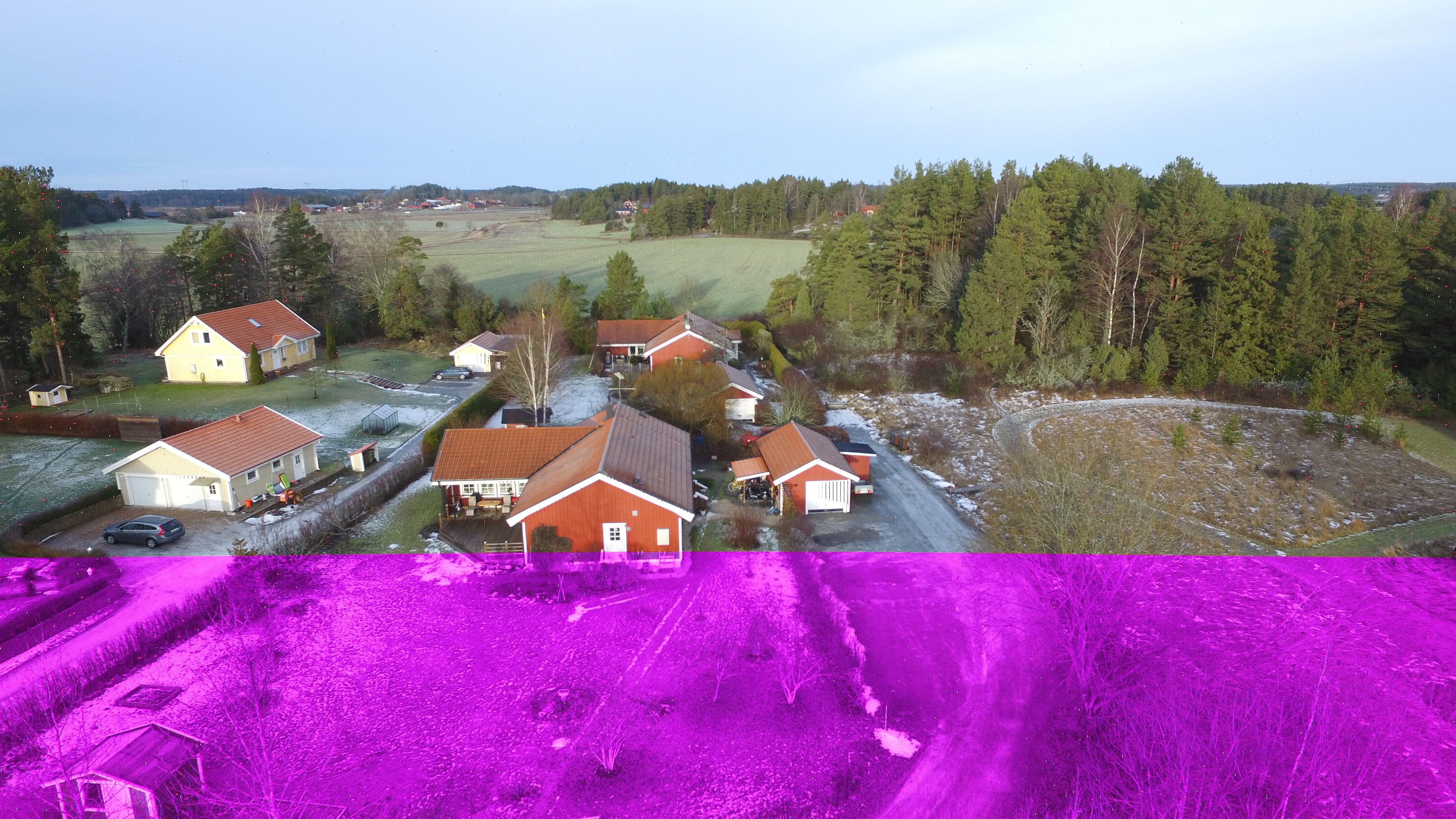

This is also after the reset but with another wierd behavior:
View attachment 107299

There's this big cerise line across the image.

Can anyone help me, do i need to replace the flex ribbon cable or the whole camera setup?

I bought the drone used and therefore it didn't have any warranty.

Kind regards
Albin W
Try to reformat your sd card. Or even try another one...it may be that your camera is hosed. I believe mine is. It's the weakest link.


RodPad

Premium Pilot
Joined
May 20, 2015
Messages
5,727
Reaction score
1,149
Age
57
Location
Pacific,NorthWet, 97031
I had this on P3A, it was a gimbal ribbon cable. Fiddly to replace but the part is not too expensive.
Thanks!

I will do some tinkering!

Rod

Joined
Jun 30, 2016
Messages
979
Reaction score
344
Location
PL
This boards are the same in the Phantom or in all digital cameras?
No, boards are different. But every such camera uses the same chips, and the same circuit (which is implementation example from the chip manufacturer - Ambarella). The difference is mostly in sensors and assembly quality.

Is this worth trying to fix, meaning I'm I going to need a magnifying glass just to see it?
Phantoms are more laptop-like tech rather than mobile phone tech. Whether you consider laptop components big or small - up to you.

For whether its "worth" - if I looked at it economically, I'd only ever look into the latest, most expensive models. But I'm a hobbyist, and I don't even have latest drones. I fixed a few phantoms just because I liked it. Looking at other peoples designs, finding where they had a neat idea and where they went through hopeless struggle - that's relaxing to me, and sometimes even gives me ideas for my work.

  • Like
Reactions: RodPad
