The point is getting good clarity and no dropouts or more lag within your reach.

I second that, i am not bothered about any mega distance records just rock solid FPV like you say, which i think is the main thing we have all been worried about. The good thing we have all learnt tho is even with auto GPS setting we clearly have nothing to worry about. Yippeee.

  • Like
Reactions: johnjay
Joined
Apr 17, 2015
Messages
77
Reaction score
9
Age
41
I was going to buy one from the US after being told from dji they would be factory set from dji according to were they were going to be shipped to, and i was willing to pay a lot of extra money here in the UK with imports and tax charges to get a FCC model, but there are a a lot of experts on here who have pointed out this is not the case, and infact it will be auto set by GPS so it wont make a difference. Mohan has flown amazing distances auto set in the CE mode so there is no need to worry.
I am in US on regular basis. So no tax :)

Joined
Aug 9, 2014
Messages
408
Reaction score
69
Location
Warwickshire UK
No. All I'm saying is based on the two FCC grants that the P3's on-board LB transmission 'system' has a conducted power rating of 0.746 watts or ~28.7dBm.

There may be as many as 4 antennas.
Sorry I thought you were saying there were physical component differences between US Phantoms and European ones.

Joined
Aug 10, 2014
Messages
40
Reaction score
0
Age
60
Are the lights less bright or brighter on the DJI Phantom 3 compared to previous DJI Phantom 2 Vision Plus? They do look to be smaller.
Thanks!

Joined
Apr 13, 2015
Messages
154
Reaction score
31
Age
47
Location
Rio Rancho, NM
Joined
Jan 3, 2015
Messages
527
Reaction score
207
I can't see any pictures; am I doing something wrong or did you take them down?

Dunno - didn't take pics down - still there...

Joined
Jan 3, 2015
Messages
527
Reaction score
207
Are the lights less bright or brighter on the DJI Phantom 3 compared to previous DJI Phantom 2 Vision Plus? They do look to be smaller.
Thanks!

Can't really say when the sun is beating down on your face...

Joined
Apr 9, 2014
Messages
153
Reaction score
26
Location
UK

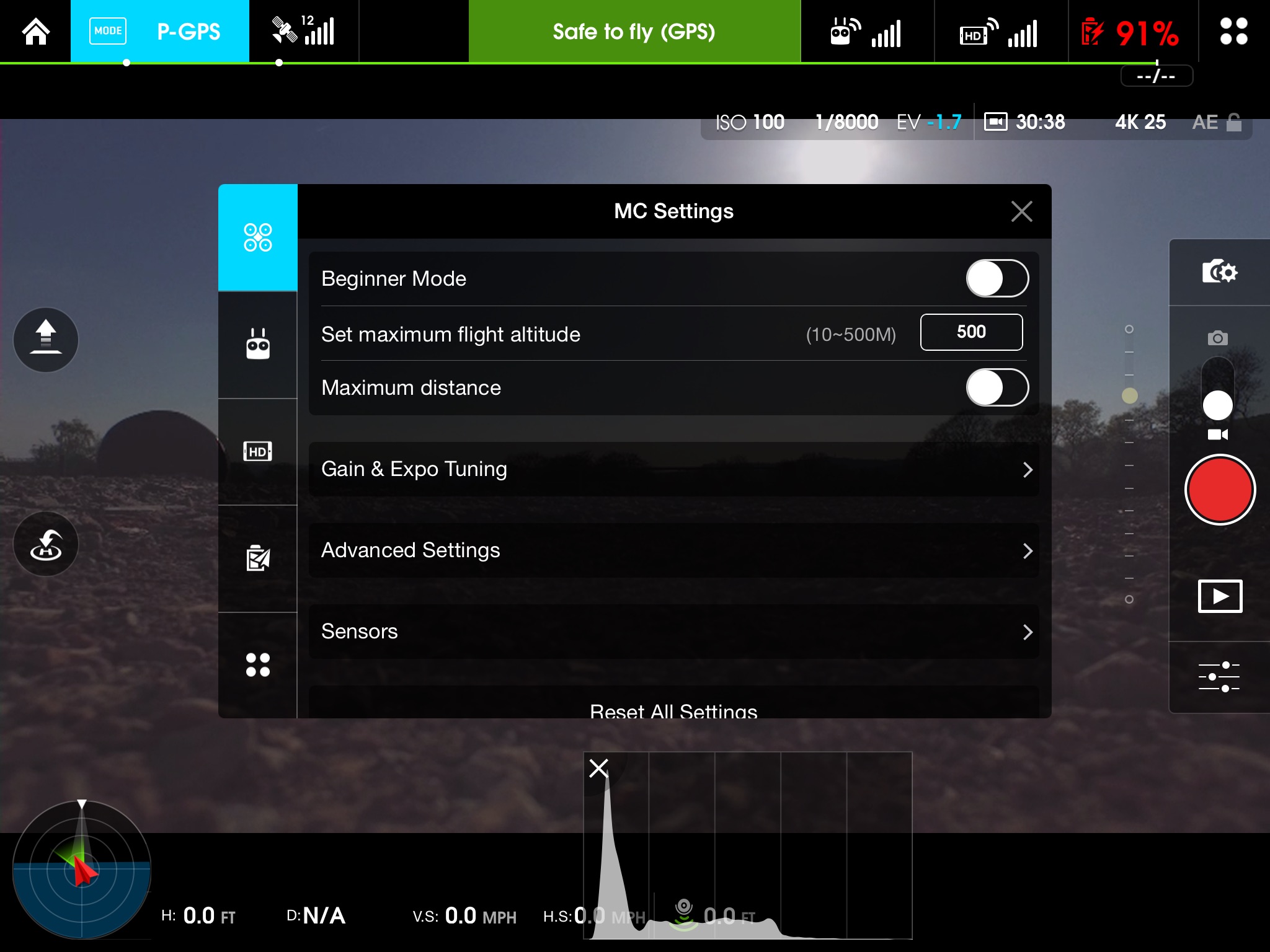

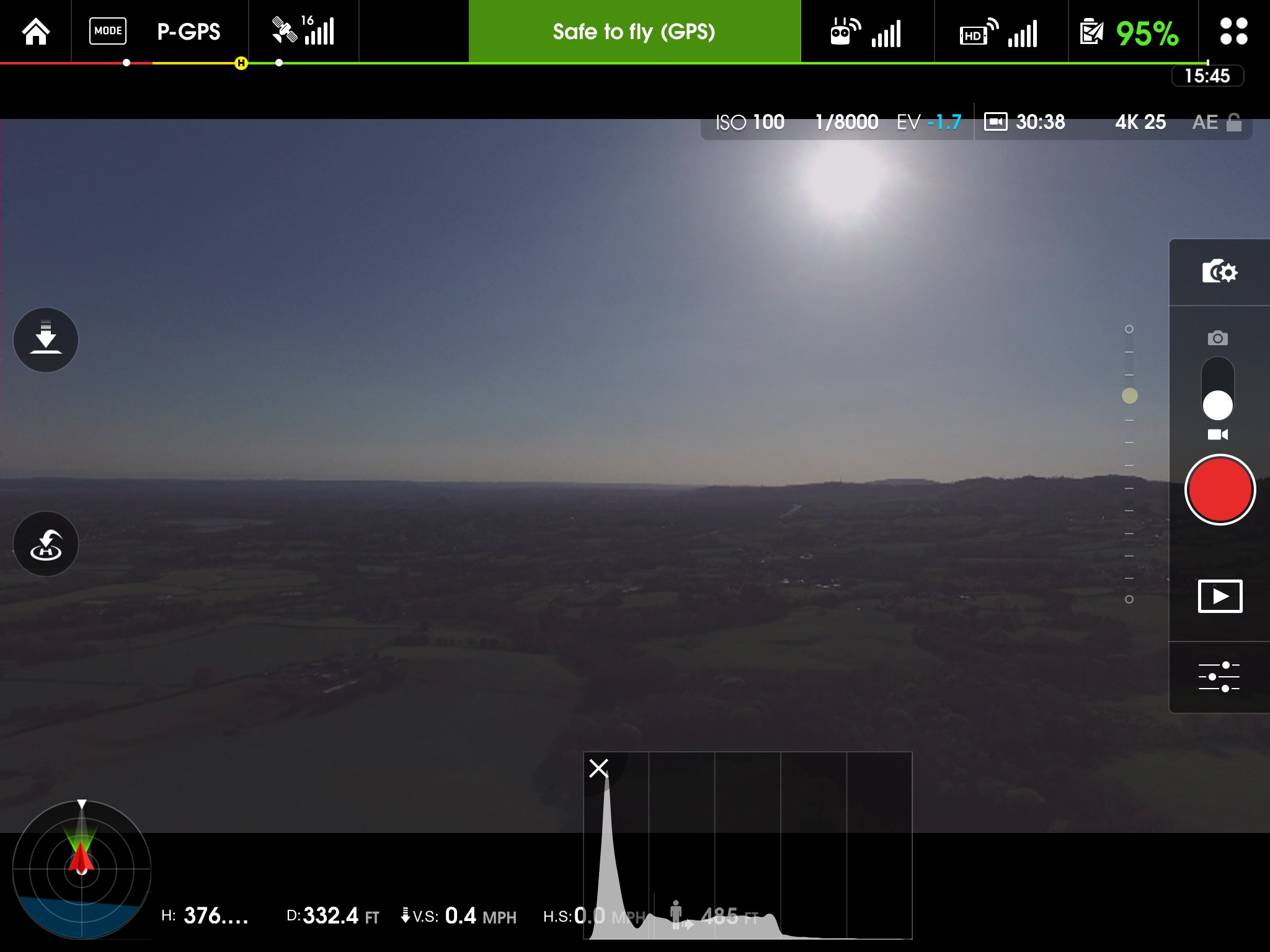

Nice,looks promising, any chance you could still do the max height test mohan even a little over 500ft would do.

Joined
Mar 17, 2014
Messages
853
Reaction score
469
Location
Big Bear, CA
Are the lights less bright or brighter on the DJI Phantom 3 compared to previous DJI Phantom 2 Vision Plus? They do look to be smaller.
Thanks!

They are brighter, they use the same type now on all their E series power system. Killer LEDS.

Joined
Mar 17, 2014
Messages
853
Reaction score
469
Location
Big Bear, CA
I'm keen on around 1 min of raw (unedited) un youtubed video from the 4k.. just on a dropbox link? so we can see it in the real, and have a play.. please :D
Many links on rcgroups of raw video. Also any raw video of the inspire is the same as well, at least with the pro model.

Joined
Apr 13, 2015
Messages
154
Reaction score
31
Age
47
Location
Rio Rancho, NM
Dunno - didn't take pics down - still there...

Not sure what happened. Now they show up on both your original post as well as on my quoted one.

And I wanted to say thanks for sharing the pictures. Truly an amazing machine. Can't wait until I get mine.

Joined
Jul 11, 2014
Messages
10
Reaction score
1
Location
Austin, TX
Man, I love the smooth work on the camera when you pan down, is that because the camera controls are the wheel on top?

Joined
May 16, 2014
Messages
3,530
Reaction score
626
Location
Sydney Australia

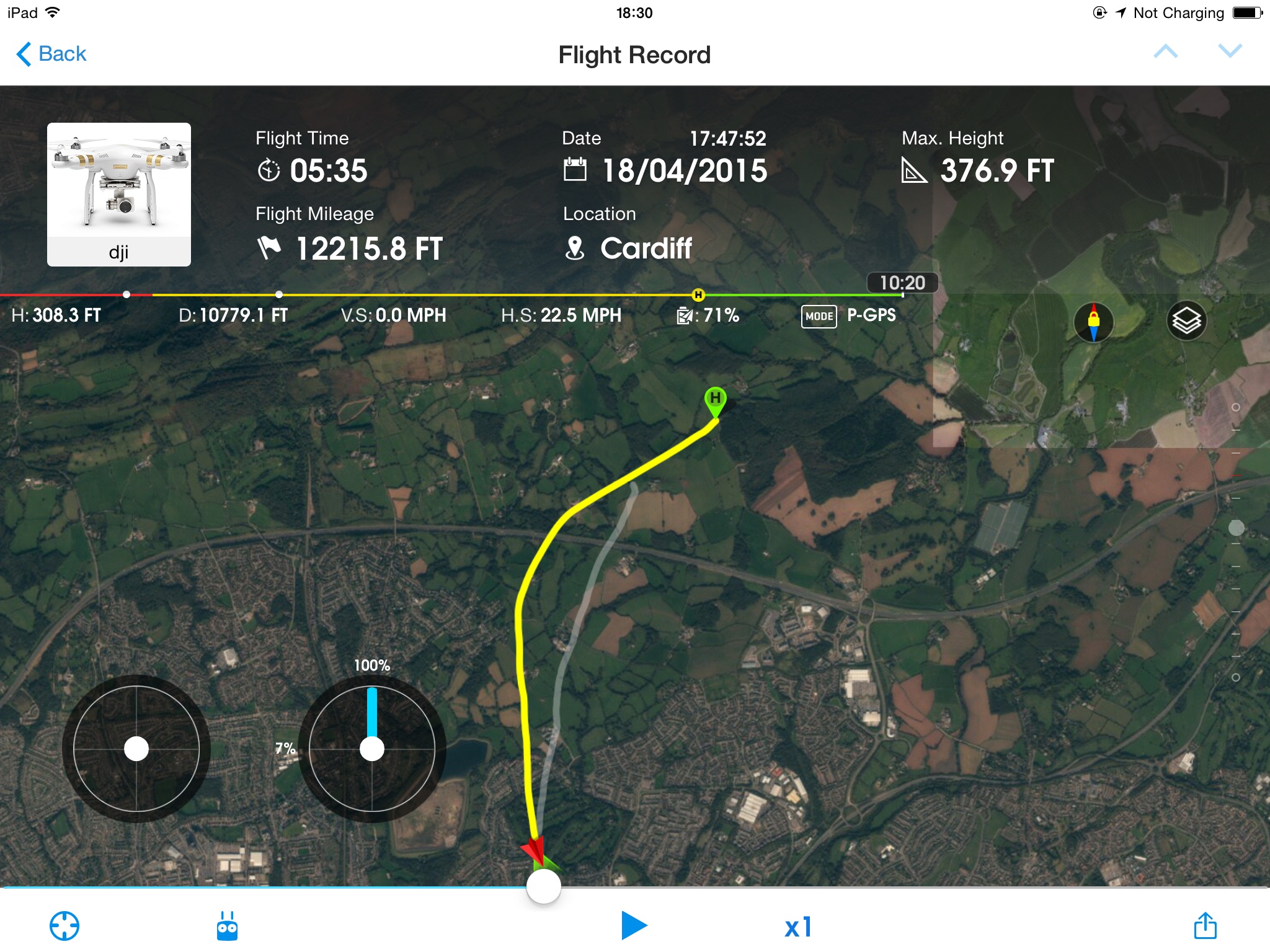

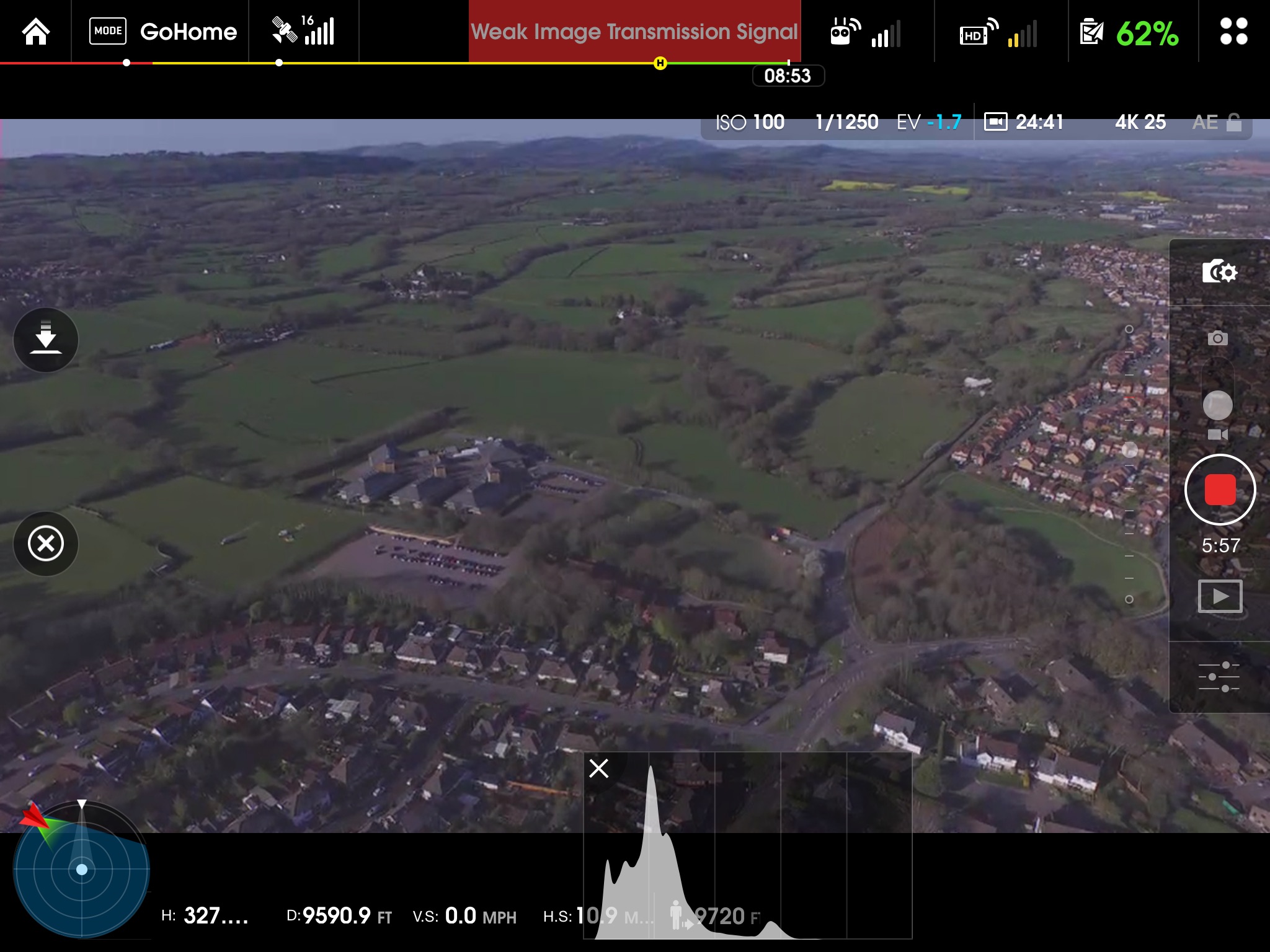

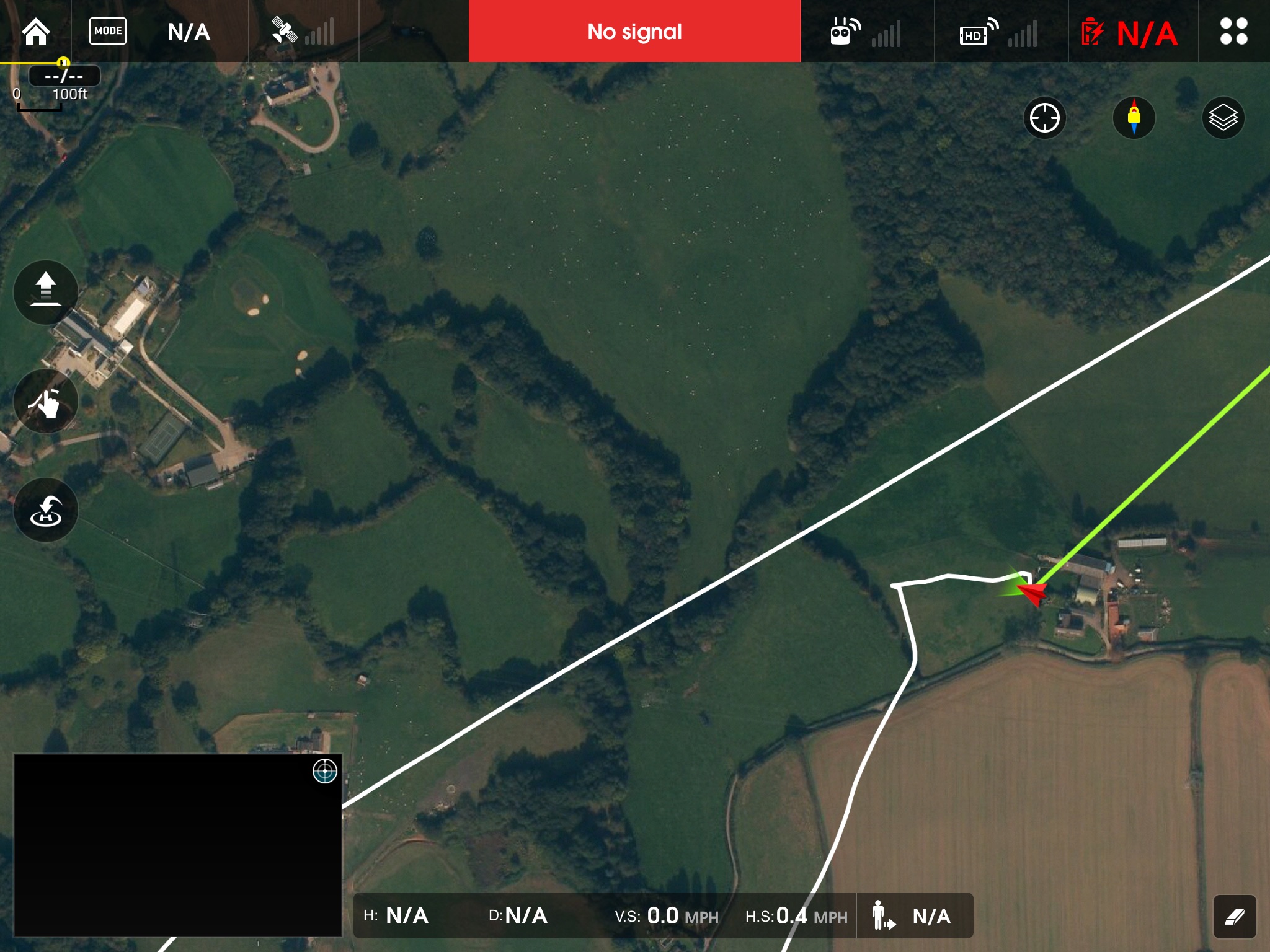

3.3 km stock! This dji lightbridge is sorcery. Im no distance flyer either but im in love with the rock solid fpv especially at 720p. Drop that resolution to [email protected] and it will go moon and back.

Joined
Jan 3, 2015
Messages
527
Reaction score
207
Internal Pictures

Taking the Phantom 3 apart is a Pain in the Rear. It is worse than trying to take an ipad apart. The new phantom 3 has locking tabs that need to be pushed into release the cover.
The screws are different - no more 2mm Hex and philips. The larger screws need a T8 and the small screw at the tip needs a T6

Hood off with GPS


More detail of main board



Big Black Box with Ribbon connector


Another view - also ESC



Gimbal connector


Close up of GPS connector


Motors


Fets on main board


Main powe









Part 2 to follow

Joined
Jan 3, 2015
Messages
527
Reaction score
207
Part 2 of the pictures

Compass and OFDM



GPS connector




What is this black box with the ribbon?



Main Power connector

Gimbal Port


Battery slot is caged well


New screws


Joined
Aug 29, 2014
Messages
1,104
Reaction score
143
Age
45
Location
Lee. UK
Wowsers that looks a lot more high tech to me, know nothing on this subject but hope others that do have good things to say.


DBS

Joined
Apr 6, 2014
Messages
1,187
Reaction score
165
Age
54
Location
Ft. Pierce, Florida
First reaction... if you burn an ESC... the entire board will need to be changed... :(
They moved the ESC back into the shoulder on the main board... but left the cooling fins out on the arm where the old ESC used to be... interesting.

Small black box looks like it has anti vibration mounts... probably gyro, accelerometer etc.. inside.

Motors are really looking like the same 2312s that come with the solid core brittle wires... however they are all siliconed to the board right at the solder connection... that helps a lot.
