Can’t fix gimbal motor overload! Please help!

Joined
Feb 18, 2020
Messages
11
Reaction score
4
Age
37
Hi everyone, my Phantom 3 Pro gimbal always ends up in awkward position when I turn on the drone. I have heard that many people got same problem and they fix it by adjust the halfmoon-shaped shaft on the back of the gimbal.
I tried but it still ends up in weird position. And when drone is flying forward, if I suddenly turn left or right; the gimbal will lean.
Please give me some advice! The camera is still working great, only the gimbal has issue, and I don’t want to replace the whole camera or bring it to my local repair shop who will charge $60-70 just for diagnostic! Thank you!


*UPDATE 1: An hour ago, I turned on the drone and suddenly its position was exactly in the center, no more lean! I took the drone out for a flight test and the gimbal was working perfectly. I could rotate it all the way by controller without it being shaking or leaning like before. However, when I turned it off and turned on again, it went back to that awkward position.
I manually re-center it and turned off then on again, and the position was perfect again. So I kept turning on/off and about 7 out of 10 times, it would go to the center as it should be. Still not 10/10, but fortunately , there was no more lean at all when it was flying.
I’m pretty sure my attempt to recenter the halfmoon-shaped shaft had partially fixed it. The next step I will try is to add the missing screw and probably replace the flex cable. I really hope I can totally fix it to the point that it will always center every time I turn it on. I will keep posting the update here, hopefully who had similar problem could find it hopeful.
*NEWEST UPDATE: I took it out again for a flight test and the gimbal started leaning again at strong wind! Very disappointed indeed. But at least I know this is repairable and no need to bring it to rip-off store. I will try with other solutions that I can find. Please feel free to give me advice! Thank you all!




Last edited:
Joined
Feb 18, 2020
Messages
11
Reaction score
4
Age
37
I have done all calibration, it still remains same position. I can manually re-center it, but when it is flying, it will go back to same position anytime. If I can’t fix it by my self, I will I have to bring it to rip-off local repair store or sell it for cheap, either is a big loss to me 😞
Oh, also, I found a small nick on ribbon cable, but honestly I don’t think such a small nick can make the gimbal unstable like this


KachemakDiver

Premium Pilot
Joined
May 15, 2019
Messages
990
Reaction score
686
Age
58
Location
Homer,Alaska
It doesn’t take much to damage a ribbon cable, especially if it is a aftermarket cable.
Without actually seeing what it does, I am just guessing.

Joined
Feb 18, 2020
Messages
11
Reaction score
4
Age
37

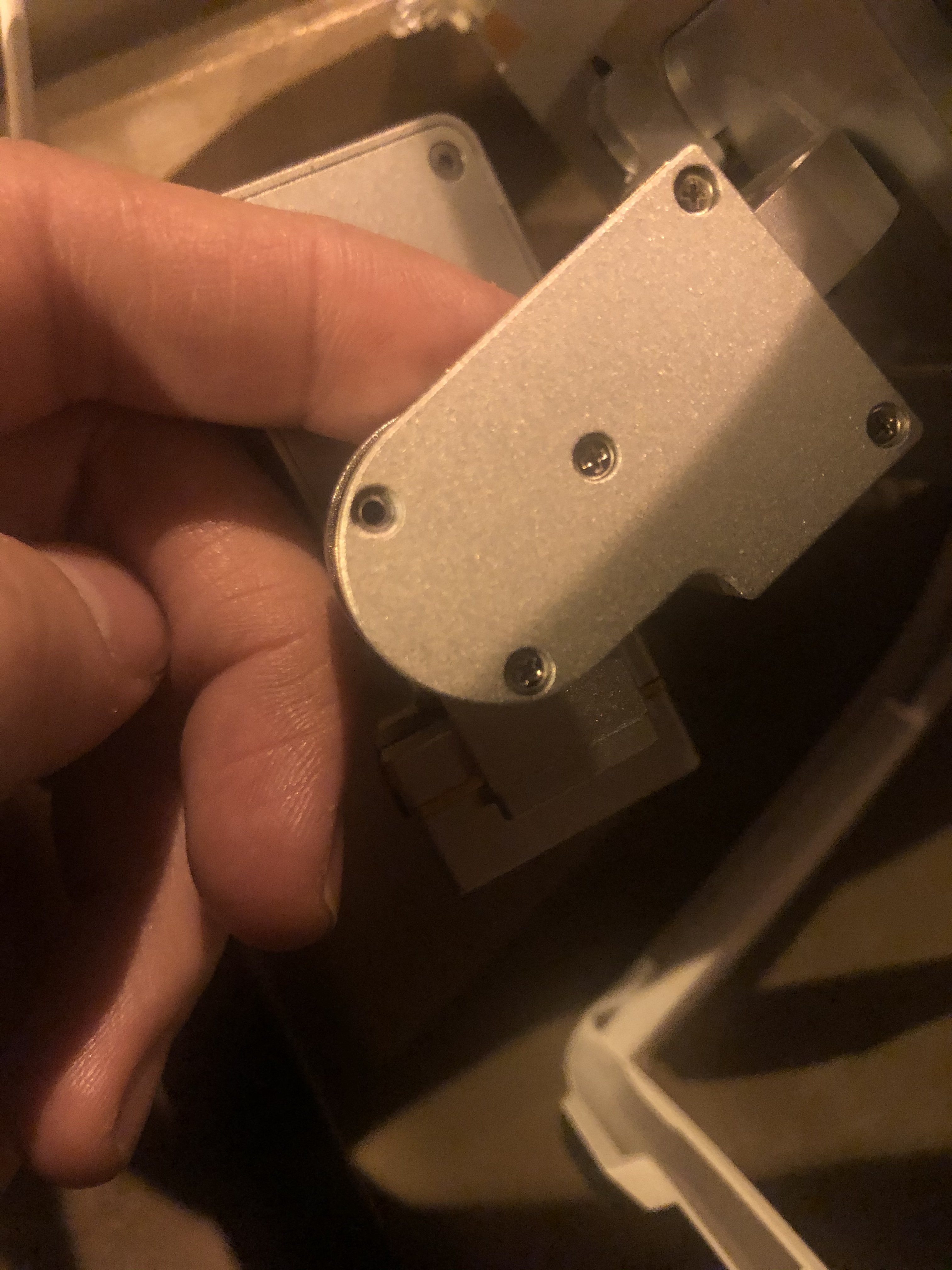

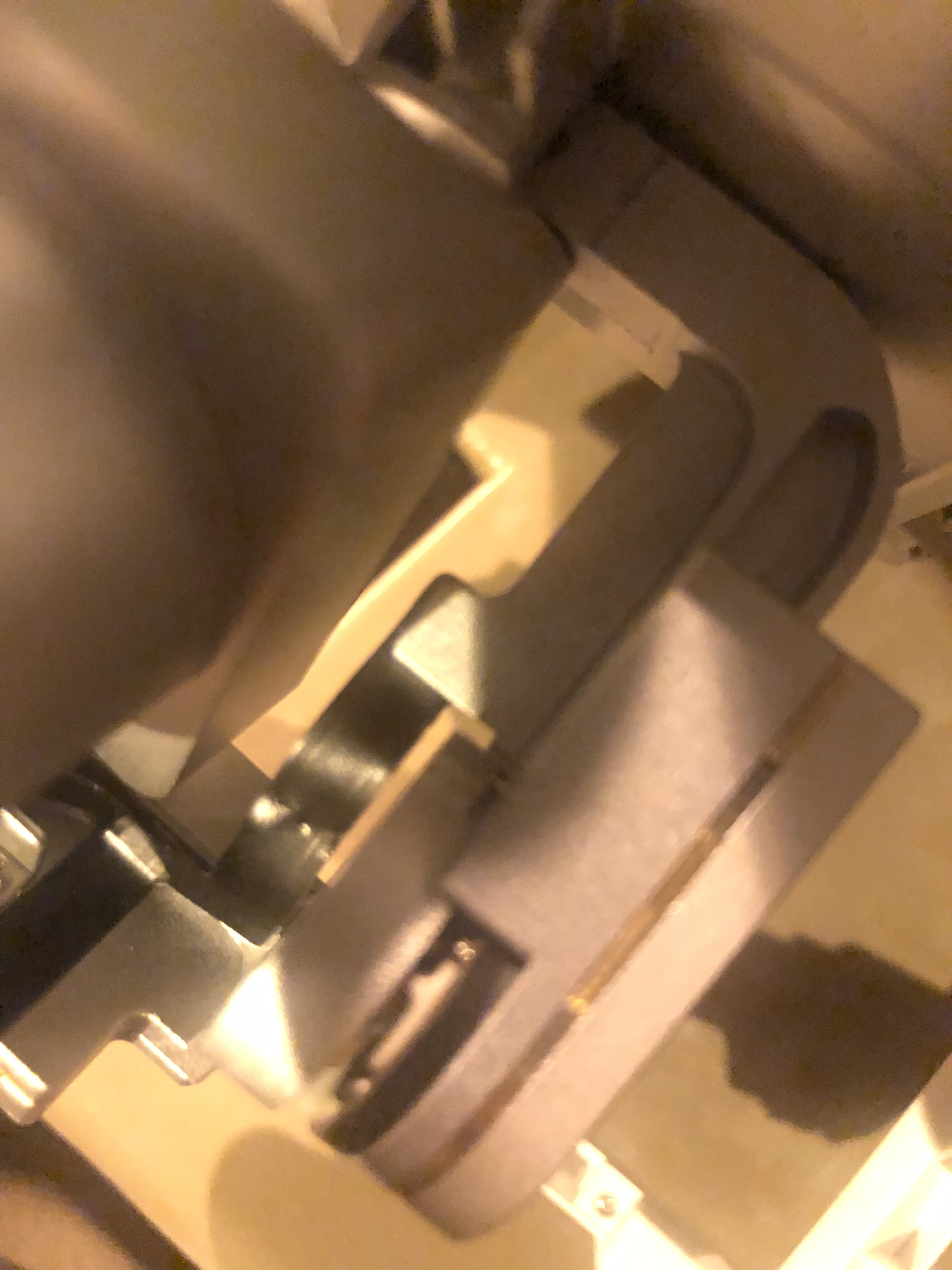

*Update: I have found that ribbon cable is a bit damaged, and the cover on the back of the halfmoon-shaped shaft is missing 1 screw. Could one of these (or both) is the problem?


KachemakDiver

Premium Pilot
Joined
May 15, 2019
Messages
990
Reaction score
686
Age
58
Location
Homer,Alaska
Do you have a hobby shop in your area? Maybe a camera repair shop.its a really small diameter screw. If not, where are you located? I have a bunch of camera parts.

  • Like
Reactions: agent020
Joined
Feb 18, 2020
Messages
11
Reaction score
4
Age
37
Do you have a hobby shop in your area? Maybe a camera repair shop.its a really small diameter screw. If not, where are you located? I have a bunch of camera parts.
Thank you for your kindness, I live in Houston, Texas! I will bring it to local hobby shop, but I’m afraid that current position of the screws is already incorrect. I wish I could have another P3P in hand so that I can compare and find the exact same one.


KachemakDiver

Premium Pilot
Joined
May 15, 2019
Messages
990
Reaction score
686
Age
58
Location
Homer,Alaska
Take one of the other screws out and bring with you. The screws for that cover plate are all the same size and length.

Joined
Feb 18, 2020
Messages
11
Reaction score
4
Age
37
If you cannot locate one let me know.
Thank you so much sir! Also, I have an update about the drone! An hour ago, I turned on the drone and suddenly its position was exactly in the center, no more lean! I took the drone out for a flight test and the gimbal was working perfectly. I could rotate it all the way by controller without it being shaking or leaning like before. However, when I turned it off and turned on again, it went back to that awkward position.
I manually re-center it and turned off then on again, and the position was perfect again. So I kept turning on/off and about 7 out of 10 times, it would go to the center as it should be. Still not 10/10, but fortunately , there was no more lean at all when it was flying.
I’m pretty sure my attempt to recenter the halfmoon-shaped shaft had partially fixed it. The next step I will try is to add the missing screw and probably replace the flex cable. I really hope I can totally fix it to the point that it will always center every time I turn it on. I will keep posting the update here, hopefully who had similar problem could find it hopeful.

  • Like
Reactions: KachemakDiver
Joined
Feb 18, 2020
Messages
11
Reaction score
4
Age
37
NEWEST UPDATE: I took it out again for a flight test and the gimbal started leaning again at strong wind! Very disappointed indeed. But at least I know this is repairable and no need to bring it to rip-off store. I will try with other solutions that I can find. Please feel free to give me advice! Thank you all!

Joined
Jun 30, 2016
Messages
1,317
Reaction score
564
Location
PL
I agree with @KachemakDiver the ribbon cable might be it. I vote for potentiometer though, to preserve healthy opposition :p.

Pots are easy to check - measure resistance on outer contacts, while slowly rotating it. If measured resistance does a quick sudden change at some point, the resistive path is broken.

Or if the resistance is above 20k all the time - then it's completely shattered inside.
