!?! How come no one else is talking about this 3:2 Vignetting Problem on the P4P?

Joined
Aug 15, 2016
Messages
1,424
Reaction score
296
This needs to be put to light!

Check out this full thread^^^ Click the Link

Summary: The picture on the left is the Full image, while the other other one on the right is processed in adobe's PS, but it also does it too in LR, , and it calls it "1:1". LR automatically crops/lens corrects these 3:2 photos by the p4p, so most of you won't see this unless you open the file via Raw Image Viewer or Photodirector.

Joined
Nov 17, 2016
Messages
1,084
Reaction score
485
Age
65
Location
Utah, USA
I've heard this before but I haven't taken any stills to test with. Vignetting is no doubt at it's worst when shooting stills at 3:2 and not so bad at 16:9 just as video would not be so bad a 16:9. Vignetting is not uncommon, even with good lenses, though you prefer not to have it. PS and Lightroom can pretty much compensate for it if they have the lens profile and that should be soon if not already.

That's perhaps one reason to shoot stills in 16:9 or to crop to 16:9 or use PS etc to compensate for it. You can also stop down (higher f/#) the aperture a bit and that will tend to reduce the problem.


Brian

  • Like
Reactions: tml4191
Joined
Aug 15, 2016
Messages
1,424
Reaction score
296
I've heard this before but I haven't taken any stills to test with. Vignetting is no doubt at it's worst when shooting stills at 3:2 and not so bad at 16:9 just as video would not be so bad a 16:9. Vignetting is not uncommon, even with good lenses, though you prefer not to have it. PS and Lightroom can pretty much compensate for it if they have the lens profile and that should be soon if not already.

That's perhaps one reason to shoot stills in 16:9 or to crop to 16:9 or use PS etc to compensate for it. You can also stop down (higher f/#) the aperture a bit and that will tend to reduce the problem.


Brian
Thanks^

Joined
Oct 16, 2016
Messages
300
Reaction score
91
Age
52
Just curious why your pic is showing 3 taskbars. What happens if you shoot in jpg format? Does it still vignette?


Sent from my iPad using PhantomPilots

Joined
Aug 15, 2016
Messages
1,424
Reaction score
296
Just curious why your pic is showing 3 taskbars. What happens if you shoot in jpg format? Does it still vignette?


Sent from my iPad using PhantomPilots

Haven't shot it in jpeg+raw for a while now, and I don't have any of those files right now. Since the picture was too big for the forum, and since I had to do something, I quickly made screenshot of a screenshot. It was just easier.

Joined
Oct 16, 2016
Messages
300
Reaction score
91
Age
52
I am experimenting with the same thing on my typhoon h 4K, I really only use my P4 to pic up chicks. I have 2 and a ton of battery's for them. I hit the sledding hills and look for the hot moms and ask if they want free drone videos of their kids sledding, just need an email to send the uploaded link of the video too. [emoji6]


Sent from my iPad using PhantomPilots

  • Like
Reactions: tml4191
Joined
Oct 16, 2016
Messages
300
Reaction score
91
Age
52
I would also be interested if it's an adobe codec issue, have you tried it in another viewer? Sorry if you already said you did, smoking a turkey for the big day and had a couple beers.


Sent from my iPad using PhantomPilots

Joined
Aug 15, 2016
Messages
1,424
Reaction score
296
I would also be interested if it's an adobe codec issue, have you tried it in another viewer? Sorry if you already said you did, smoking a turkey for the big day and had a couple beers.


Sent from my iPad using PhantomPilots

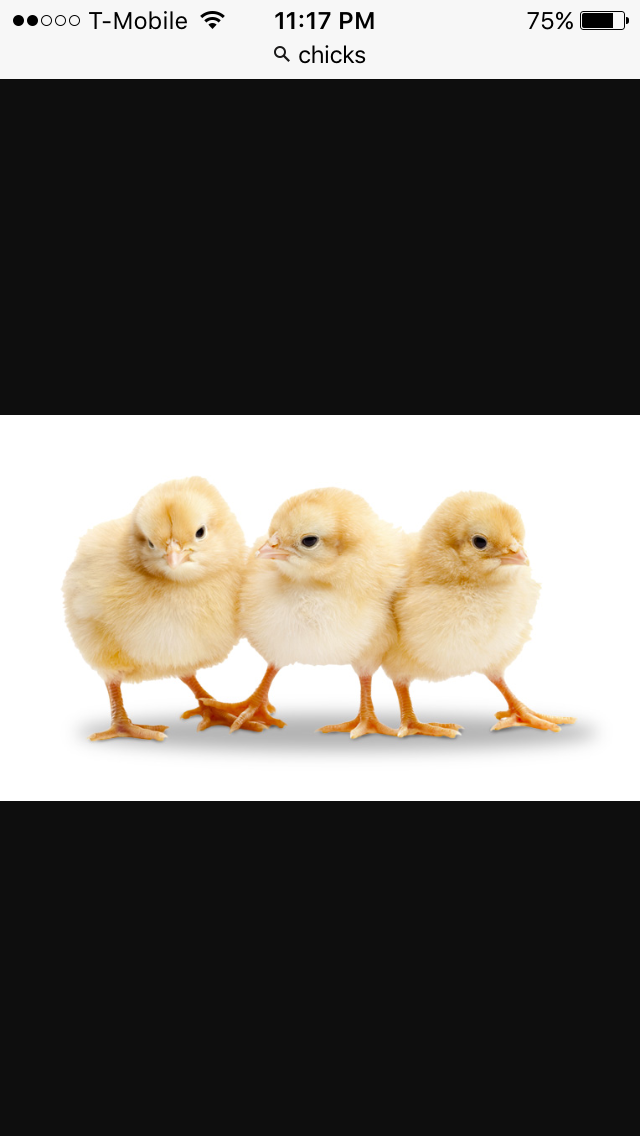

Multiple users from different forums have posted the same results. This was tested on a mac and windows through various programs. If you have the quadcopter that casey nesitat flew with in his Santa suit, then you can literally pick up chicks. Plus, the phantom and the typhoon can pick up these kinds of chicks from google image:


Last edited:
Joined
Oct 16, 2016
Messages
300
Reaction score
91
Age
52
Multiple users from different forums have posted the same results. This was tested on a mac and windows through various programs. If you have the quadcopter that casey nesitat flew with in his Santa suit, then you can literally pick up chicks. Plus, the phantom and the typhoon can pick up these kinds of chicks from google image:

View attachment 71373

I think you mean.




Sent from my iPad using PhantomPilots

  • Like
Reactions: tml4191
Joined
Mar 10, 2016
Messages
322
Reaction score
83
We need to shoot in jpg and determine if it's a lens issue or a format issue or a codec issue.


Sent from my iPad using PhantomPilots

Most of all, check the image dimensions (pixels) in 3:2 mode both as DNG and JPG. If they are BOTH the same and represent the maximum resolution of the 1" sensor (which is a 3:2 sensor) and JPG does not show vignetting while DNG does, then DJI already corrected for vignetting in the bird while processing the image for JPG. If the JPG image is cropped to avoid vignetting, then DJI is misrepresenting the 3:2 image resolution in their specifications.

In any case, DNG is "what-you-see-is-what-you-get" since it is effectively representing the raw pixel data from the sensor with 14 or 16 bits luminescence. The amount of vignetting shown in tml4191's DNG example is horrendous! Almost if there was a sun-shade on the lens that does not fit the FOV.

  • Like
Reactions: tml4191
Joined
Aug 15, 2016
Messages
1,424
Reaction score
296
Most of all, check the image dimensions (pixels) in 3:2 mode both as DNG and JPG. If they are BOTH the same and represent the maximum resolution of the 1" sensor (which is a 3:2 sensor) and JPG does not show vignetting while DNG does, then DJI already corrected for vignetting in the bird while processing the image for JPG. If the JPG image is cropped to avoid vignetting, then DJI is misrepresenting the 3:2 image resolution in their specifications.

In any case, DNG is "what-you-see-is-what-you-get" since it is effectively representing the raw pixel data from the sensor with 14 or 16 bits luminescence. The amount of vignetting shown in tml4191's DNG example is horrendous! Almost if there was a sun-shade on the lens that does not fit the FOV.
I'm not getting any legit response from DJI on this matter. I'm merely questioning if my unit is defective or if this is an apparent problem on all the p4ps. I'm leaning towards the latter since DJI is basically dodging my questions on their forum, but it's Christmas season, so they just might be busy, right?

Joined
Oct 16, 2016
Messages
300
Reaction score
91
Age
52
Most of all, check the image dimensions (pixels) in 3:2 mode both as DNG and JPG. If they are BOTH the same and represent the maximum resolution of the 1" sensor (which is a 3:2 sensor) and JPG does not show vignetting while DNG does, then DJI already corrected for vignetting in the bird while processing the image for JPG. If the JPG image is cropped to avoid vignetting, then DJI is misrepresenting the 3:2 image resolution in their specifications.

In any case, DNG is "what-you-see-is-what-you-get" since it is effectively representing the raw pixel data from the sensor with 14 or 16 bits luminescence. The amount of vignetting shown in tml4191's DNG example is horrendous! Almost if there was a sun-shade on the lens that does not fit the FOV.

Tml4191, is the filter on the gimble lens all the way on? What happens if you remove it?


Sent from my iPad using PhantomPilots

Joined
Aug 15, 2016
Messages
1,424
Reaction score
296
Tml4191, is the filter on the gimble lens all the way on? What happens if you remove it?


Sent from my iPad using PhantomPilots
My first shots I took were at night, and the 3:2 shots had vignetting right from the get go. The filter is on 100%, and I don't think it'll make a difference if I remove it since it's just a clear filter that covers more than it needs.
image1.JPG image3.JPG


Meta4

Premium Pilot
Joined
Jan 8, 2014
Messages
15,051
Reaction score
9,037
Most of all, check the image dimensions (pixels) in 3:2 mode both as DNG and JPG. If they are BOTH the same and represent the maximum resolution of the 1" sensor (which is a 3:2 sensor) and JPG does not show vignetting while DNG does, then DJI already corrected for vignetting in the bird while processing the image for JPG. If the JPG image is cropped to avoid vignetting, then DJI is misrepresenting the 3:2 image resolution in their specifications.
My jpg files are all 5472 x 3648 which is exactly as per the specs: 3:2 Aspect Ratio: 5472 × 3648
My first shots I took were at night, and the 3:2 shots had vignetting right from the get go.
Shoot some jpg images and compare.

Joined
Jan 1, 2017
Messages
4
Reaction score
2
Age
53
Hi guys. My first post here!

Curiously, 2 years ago or so I have discovered the same type of problems with a Samsung NX Mini camera with standard 9mm lens (equally a 1 inch sensor size camera, with the same resolution of 5472x3648 pixels and a Focal Length equiv. to a 24mm!).
I have discovered then that, when opening the RAW files with Adobe Lightroom (LR5, at the time), the images looked great (very sharp, good dynamic range, noise free). But when developing the RAW files without using softwares that use Adobe Camera Raw Converter (used then the Raw Therapee too) the resulting images presented more field of view (when compared to the LR developed image or a straight from the camera JPEG), some image deformation was present (slightly "fisheye" effect) and some vignette in the corners was visible too!
Apparently these small sensor cameras have a lot of firmware processing (when shooting JPEG) to correct aberrations and have some type of partnership with Adobe to do that in post prod using LR and PS! At least Samsung at the time offered with the cameras a free version of Adobe Lightroom 5, a thing that DJI should do too!

In the following images some examples of vignette and wide angle distortion when opening the same RAW files from my P4P+ with Affinity Photo, Rawtherapee and Lightroom CS6 (all with "default" settings only, images resized after for better loading here):

RAW processed with Affinity Photo


RAW processed with RAW Therapee


RAW processed with Adobe Lightroom CS6 (curvature and vignette corrected, but with an heavy cropped area and marginal interpolation of pixels!).

Cheers

Luís Bravo Pereira

Joined
Aug 15, 2016
Messages
1,424
Reaction score
296
I'm still using photodirector, and I've had to crop out the picture a significant amount since there's no lens correction for it. LR seems the way to go though.

  • Like
Reactions: LuisBravoPereira
Joined
Jan 1, 2017
Messages
4
Reaction score
2
Age
53
The most important here is to understand that there's nothing wrong or defective with P4P camera's: the crop and firmware correction of optical aberrations it's a camera's makers frequently used strategy, at least in compact cameras with small sized sensor and with very short focal length lenses, with a narrow back flange distance too. May we like it or not, but it is what it is... the thing I don't like about this hidden camera's makers "trick" is that, in order to keep the original image size's pixel count (obviously for marketing reasons), they are interpolating a lot at the peripheral region of the images.
In practical terms, I will use LR6 for general aerial imaging and for mapping and photogrametry all that type of images (coming from LR6, RT or AP) are fine and are usable.
