Best Range Extender Antenna Thus Far!

Discussion in 'Standard' started by New Phantom Owner, Jun 30, 2018.

  1. New Phantom Owner

    Joined:
    Jun 20, 2018
    Messages:
    48
    Likes Received:
    11
    Location:
    (Anderson Hills) Cincy. Ohio
    So the Argtek has served one important function for my Phantom. That is... it has enabled me to install an Alfa APA-M25 5.8ghz 10db flat panel antenna on my remote. The original argtek blue proton range extender kit was plagued by poor quality 5.8ghz antennas. However it is still completley salvageable. If you are like me and have discovered the range of this kit insufficient even though it was properly installed... There is hope. What worked for me was installing an Alfa APA-M25 5.8ghz 10db flat panel antenna on the middle terminal of the argtek base and a pair of the smaller Alfa 2.4ghz 7db RP-SMA antennas on the outer two. These can be ordered from Amazon for a total of 40 dollars and shipped very quickly. You will then be a member of the mile away club.

  2. JSKCKNIT

    Joined:
    Apr 20, 2017
    Messages:
    52
    Likes Received:
    15
    Location:
    NoVA
    Do you have a picture of your setup?

  3. 120CCPM

    Joined:
    Nov 21, 2016
    Messages:
    524
    Likes Received:
    231
    Location:
    San Diego, CA
    You can install the Alphas directly on the RC, without having to buy the Argtek (but you have to drill some holes): Alfa Antenna Mod

  4. Macphreak4evr

    Joined:
    Jul 27, 2017
    Messages:
    51
    Likes Received:
    15
    the base of my ArgTek cracked, i had to crazy glue it to keep it all together, never abused it, I guess the weight of the setup when assembled causes undo stress on the cheap plastic tabs, mine works pretty good though

  5. Harleydude

    Joined:
    Feb 3, 2018
    Messages:
    212
    Likes Received:
    141
    Location:
    Albuquerque, New Mexico
  6. DaaaaMan

    Joined:
    May 2, 2018
    Messages:
    24
    Likes Received:
    5

    Enough said...Lol. Alpha with amps

    New Phantom Owner likes this.
  7. LeftHandFlyer

    Joined:
    Jun 11, 2018
    Messages:
    26
    Likes Received:
    9
    Location:
    Illinois
    Lol that looks sick. Why did you opt for the Standard and not the SE or the Advanced for the range?

  8. Harleydude

    Joined:
    Feb 3, 2018
    Messages:
    212
    Likes Received:
    141
    Location:
    Albuquerque, New Mexico
    Or...you could install the 1.5 watt hack, which boosts the OEM RC to 1500 milliwatts.

  9. DaaaaMan

    Joined:
    May 2, 2018
    Messages:
    24
    Likes Received:
    5
    I found this drone by chance. Bought it used for $200. It was the first real drone I've had. I kept wanting to go farther so I figured another $150 and fly a couple of miles. Thinking about getting a Mavic now. Lol

  10. New Phantom Owner

    Joined:
    Jun 20, 2018
    Messages:
    48
    Likes Received:
    11
    Location:
    (Anderson Hills) Cincy. Ohio
    Awesome setup!
    I'm running Alfa APA-M25 panels as well. Getting give or take 1mile range depending on conditions and location. I have been meaning to fabricate something similar to your setup. What Amps are you running? Manufacturer, Models, specifications and such?

  11. DaaaaMan

    Joined:
    May 2, 2018
    Messages:
    24
    Likes Received:
    5
    Here's a list. I believe this covers it except for the phantom 3 pro birdside receiving antennas for 2.4ghz.. Also I got 2 amps for 2.4 GHz. One helps but 2 is better. The hard part is getting all of this stuff on your remote securely so it doesn't brake off.


    TalentCell Rechargeable 12V 6000mAh/5V 12000mAh DC Output Lithium Ion Battery Pack For LED Strip And CCTV Camera, Portable Li-ion Battery Bank With Charger, Black (Multi-led indicator) https://www.amazon.com/dp/B00ME3ZH7C/ref=cm_sw_r_other_apa_-K8sBbNCAMBPN

    uxcell 10pcs 2.5mm x 0.7mm Male to 5.5mm x 2.5mm Female DC Power Adapter https://www.amazon.com/dp/B00UJ9AO4O/ref=cm_sw_r_cp_apa_CM8sBb921Z9B1

    Wifi Signal Booster 5.8Ghz 5W Signal Extender Wifi Repeater Broadband Amplifiers for Wireless Router, with 5dBi Antenna https://www.amazon.com/dp/B06XNMVJ7B/ref=cm_sw_r_cp_apa_YL8sBbTZAGJWH

    Valley Enterprises 2.1mm x 5.5mm DC Power Coupler Male to Male https://www.amazon.com/dp/B00B1JLN28/ref=cm_sw_r_cp_apa_NO8sBb0C1DCJD

    ESUMIC DC Power Female to Male Splitter Adatper Cable for LED Strip Lights CCTV Camera (1TO3) https://www.amazon.com/dp/B00OK9NM5M/ref=cm_sw_r_cp_apa_iP8sBbGCFKNDM


    Wifi Signal Booster 2.4Ghz 4W 802.11 Signal Extender Wifi Repeater Broadband Amplifiers for Wireless Router, with 5dBi Antenna https://www.amazon.com/dp/B01B94U438/ref=cm_sw_r_cp_apa_vR8sBbF3GHM4H

  12. New Phantom Owner

    Joined:
    Jun 20, 2018
    Messages:
    48
    Likes Received:
    11
    Location:
    (Anderson Hills) Cincy. Ohio
    I couldn't agree more about the fabrication of mounts and such for fastening of those components securely to the controller. I'll come up with something. You have done the important part and given me proof of concept utilizing those components. Thanks for the details. I just may follow in your footsteps good sir.
    My main concern with non Sunhans Amps (those I wasn't able to research the impeadence of) was the amplifier's input side internal anatomy not loading the secondary side of my transmitter circuitry properly and frying my remote via improper transmitter secondary inductiveload (50ohm required). This is a stupid and redundant question I apologize... Does your remote and amplified array function properly and perform as you intended? I was very worried about using a non hobby application amplifier because I didn't know if the input side circuitry of the router intended application wifi booster amp would properly load my remote controller transmitter secondary windings or instead fry them from an unloaded inductive kick reciprocating back into the transmitter's primary oscillator when powered on the first time I flip the switch.

    #12 New Phantom Owner, Jul 16, 2018 at 12:44 AM
    Last edited: Jul 16, 2018 at 12:52 AM
  13. New Phantom Owner

    Joined:
    Jun 20, 2018
    Messages:
    48
    Likes Received:
    11
    Location:
    (Anderson Hills) Cincy. Ohio
    I couldn't agree more about the fabrication of mounts and such for fastening of those components securely to the controller. I'll come up with something. You have done the important part and given me proof of concept utilizing those components. Thanks for the details. I just may follow in your footsteps good sir.
    My main concern with non Sunhans Amps (those I wasn't able to research the impeadence of) was the amplifier's input side internal anatomy not loading the secondary side of my transmitter circuitry properly and frying my remote via improper transmitter secondary inductiveload (50ohm required). This is a stupid and redundant question I apologize... Does your remote and amplified array function properly and perform as you intended? I was very worried about using a non hobby application amplifier because I didn't know if the input side circuitry of the router intended application wifi booster amp would properly load my remote controller transmitter secondary windings or instead fry them from an unloaded inductive kick reciprocating back into the transmitter's primary oscillator when powered on the first time I flip the switch.

    #13 New Phantom Owner, Jul 16, 2018 at 12:45 AM
    Last edited: Jul 16, 2018 at 12:50 AM
  14. DaaaaMan

    Joined:
    May 2, 2018
    Messages:
    24
    Likes Received:
    5
    The amps receive the signal and amplify that signal when powered. If the battery is not on and amps are not powered, then it's just as if you had a remote like you do know. Make sense? There's no additional power going through the actual circuit board and transmitter. As far as working? Hell yes I fly this thing in Dallas through apartment buildings, tree's and a billion wifi signals and consistently get 2 miles with no clear line of sight. Lol

    New Phantom Owner likes this.
  15. New Phantom Owner

    Joined:
    Jun 20, 2018
    Messages:
    48
    Likes Received:
    11
    Location:
    (Anderson Hills) Cincy. Ohio
    I completely understand what you're saying. My worry was about having the necessary 50ohm load on the transmitter's secondary. Seems your setup does properly load the transmitter secondary windings at 50ohm impeadence since it's still functional.
    That's awesome. Glad to hear it works well for you. I will likely do a similar fabrication with my remote. You have alleviated my worries about the transmitter's secondary windings. Like any reactive to inductive or resonant circuitry, an improper load on the secondary windings will cause an inductive kick to fry the primary oscillator windings. I have heard horror stories of people frying their remote in this way using the wrong antennas or some other form of inadequate load. Same as turning on the remote with no secondary load at all (without antennas) and then inductive coupling in the transmitter's oscillator cannot properly occur with unloaded secondary windings so the electromotive force cannot be coupled to the unloaded secondary windings the induced current on the transmitter's primary windings results in an "inductive kick" or kick back which fry's the oscillator.
    Glad that's not an issue since your amplifiers must have 50 ohm impedance on the input. How long have you used this configuration? You are getting great range, it sounds like.

    #15 New Phantom Owner, Jul 16, 2018 at 9:28 AM
    Last edited: Jul 16, 2018 at 10:07 AM
  16. DaaaaMan

    Joined:
    May 2, 2018
    Messages:
    24
    Likes Received:
    5
    Honestly, I'm just a medical doctor. I looked at the power input for the amps. That's all I know.

    I know one thing. Some of those cheap batteries on Amazon are not worthy it. I had one that felt a little odd during insert. I double checked and thought it was fine. WRONG... flying 2 miles away and all of a sudden disconnected! Bird crashed. I was using liatchi and found it with the find my aircraft. Now the Gimbel goes nutts when I power on. I've tried everything to fix it except new ribbon which comes on Friday. I'm about 3 seconds away from saying screw it and buy a Mavic. So frustrated

  17. DaaaaMan

    Joined:
    May 2, 2018
    Messages:
    24
    Likes Received:
    5

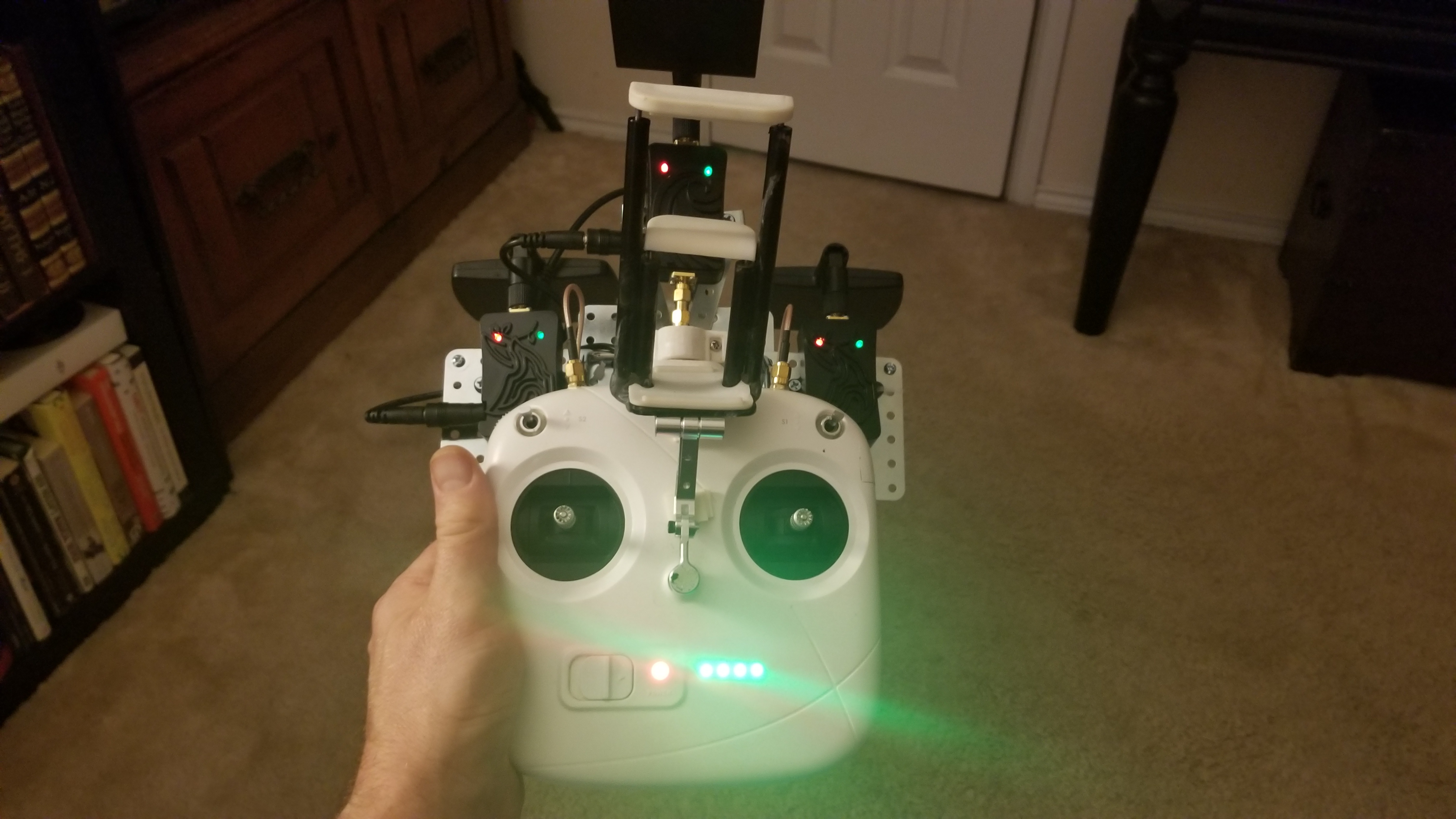

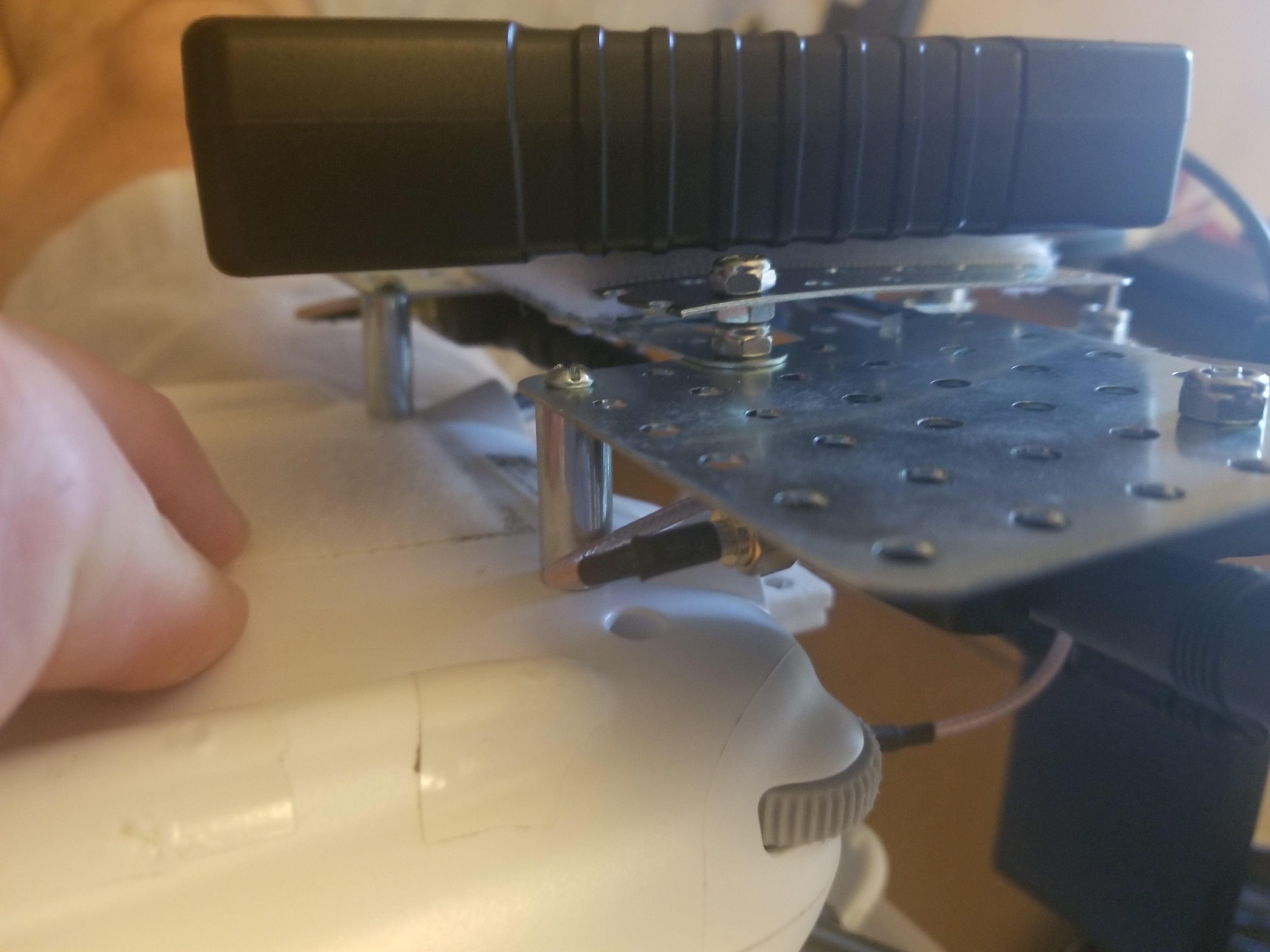

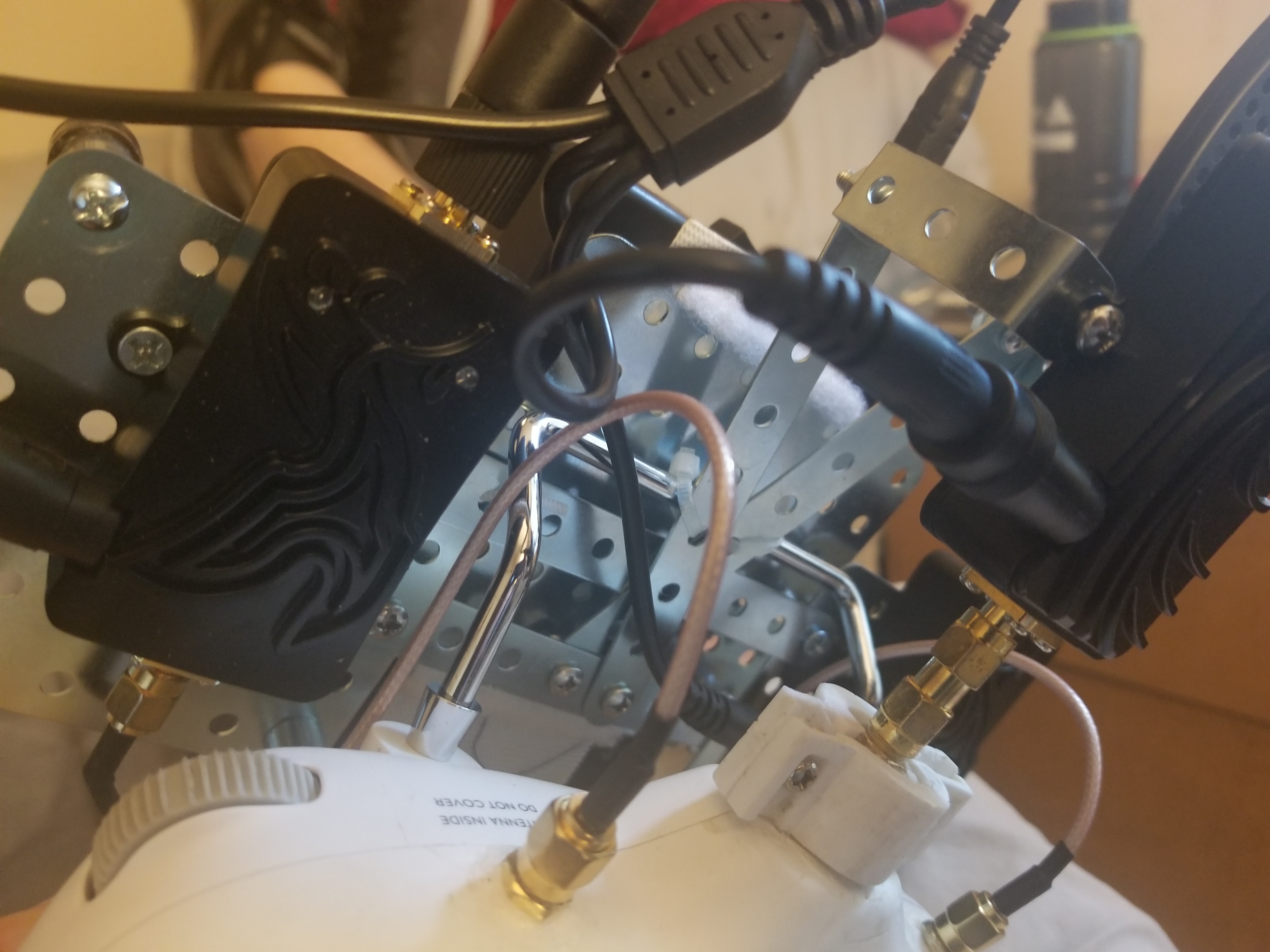

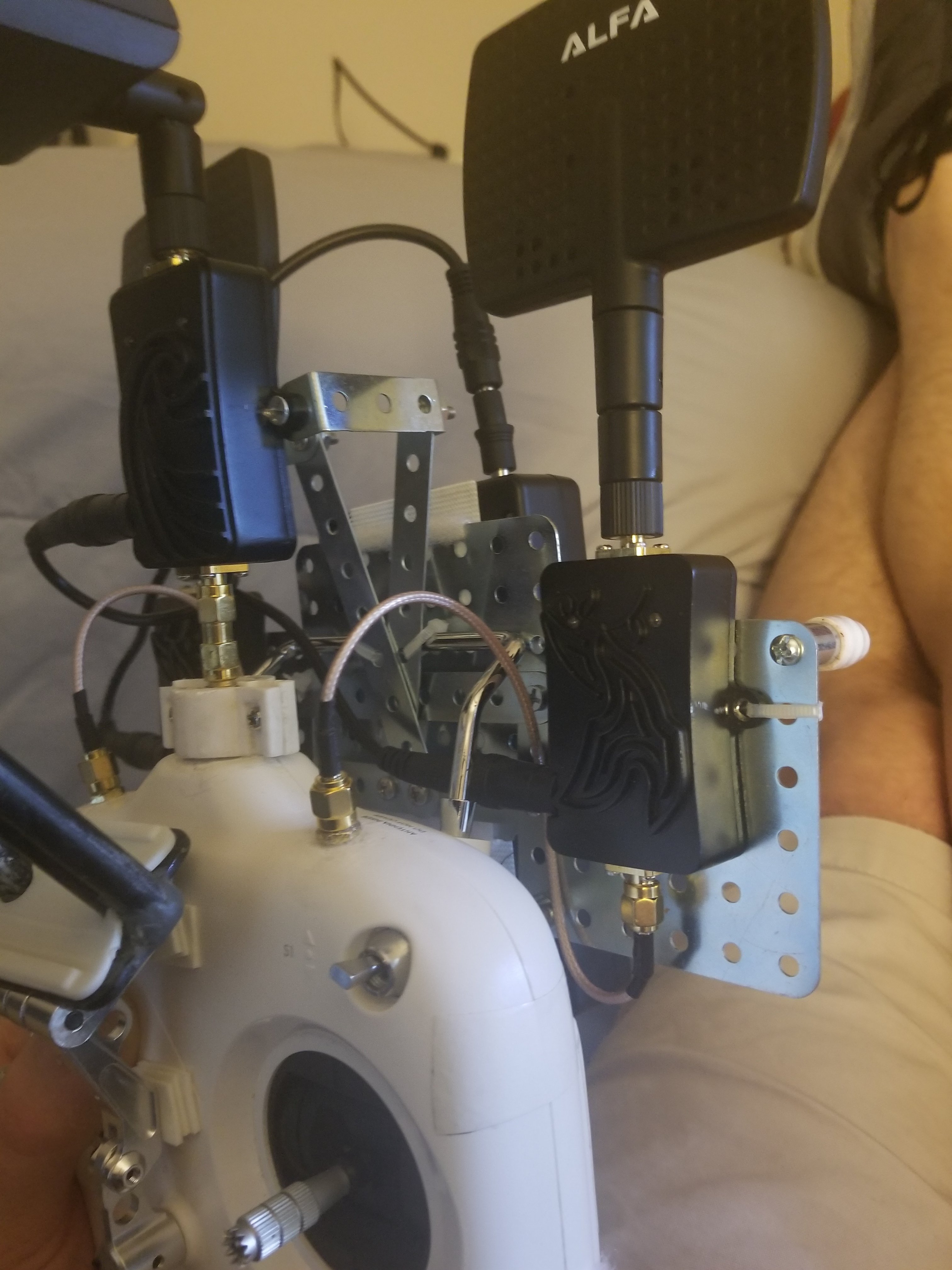

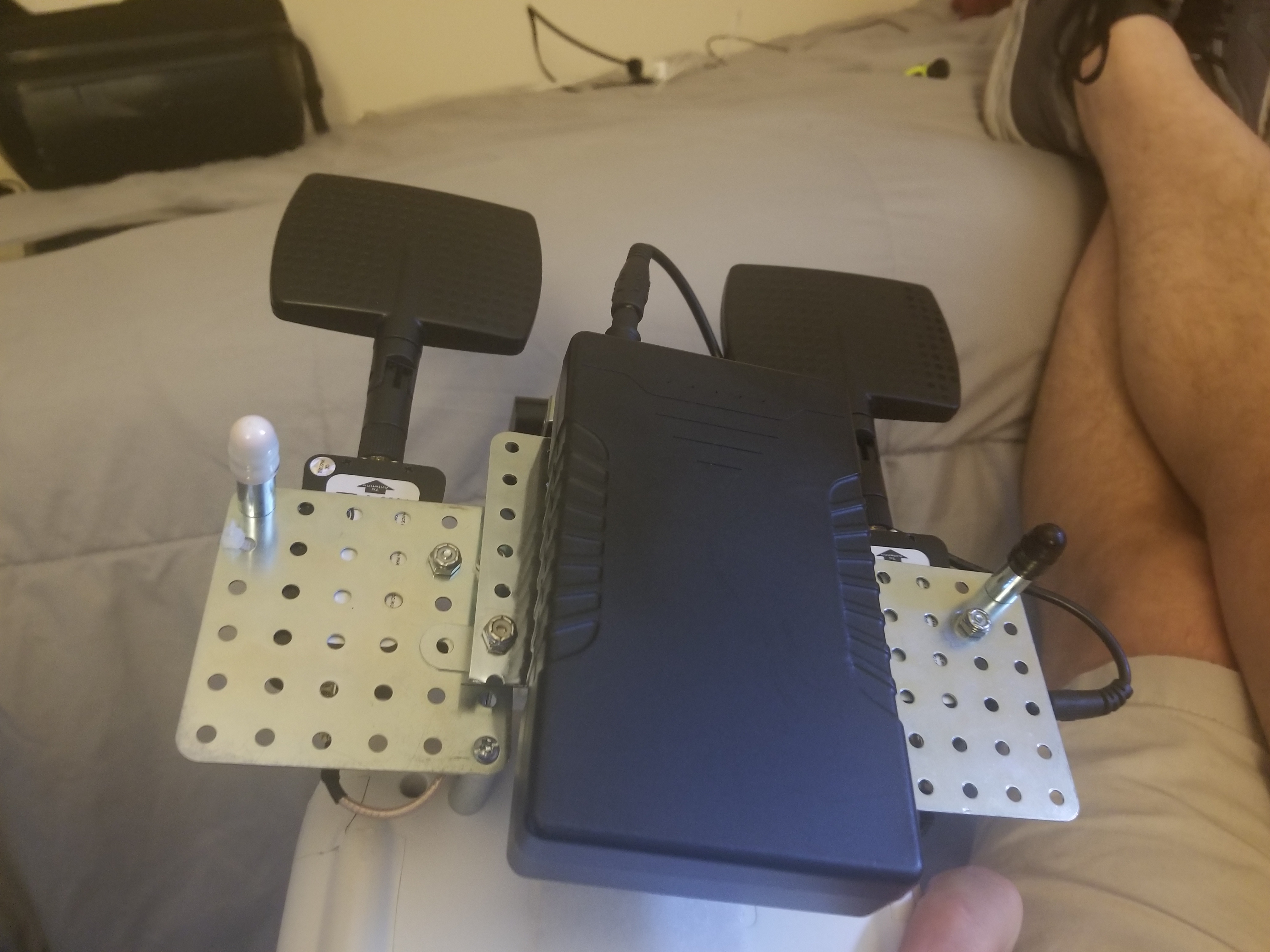

    20180718_180638.jpg 20180718_180644.jpg 20180718_180710.jpg 20180718_180726.jpg Someone asked for pics of my mounting Jerry rig. Lol. You can get all of this stuff from Lowe's or home Depot in the specialty screw drawers. They actually say hobby components. Anyways, I'm sure someone will find a better way to do it. I tried 2 other ways but this is the most secure. I don't have to worry about anything braking off.. now if someone can help me with my Gimbel I would appreciate it. 20180718_180638.jpg 20180718_180638.jpg 20180718_180644.jpg
