After resetting the ph4 battery using the Dji battery killer again, there are errors in the bite register (XCHG, XDSG, SEC1, SEC2). Help!

Joined
Dec 31, 2023
Messages
3
Reaction score
0
Age
20
Hello everyone,
I recently recharged my dead ph4 battery using a balance charger, and the battery holds voltage perfectly fine(around 3.9 for all 4 cells). After that using cp2112 to connect the board to DJI battery killer software I was able to reset and remove PF flags but never able to remove these flags (XCHG, XDSG, SEC1, SEC2) also after hitting the read info button on log value (0C)Max Error = 1%
Shown.
Also, I plugged the original Dji charger into the battery, and the battery charged normally but after plug into the drone, the drone did not start (no beeping, no sounds nothing) also battery shut off around 5s (after plugging into the drone and start battery). Please help!
Chip - BQ30Z55
Phantom 4 Battery

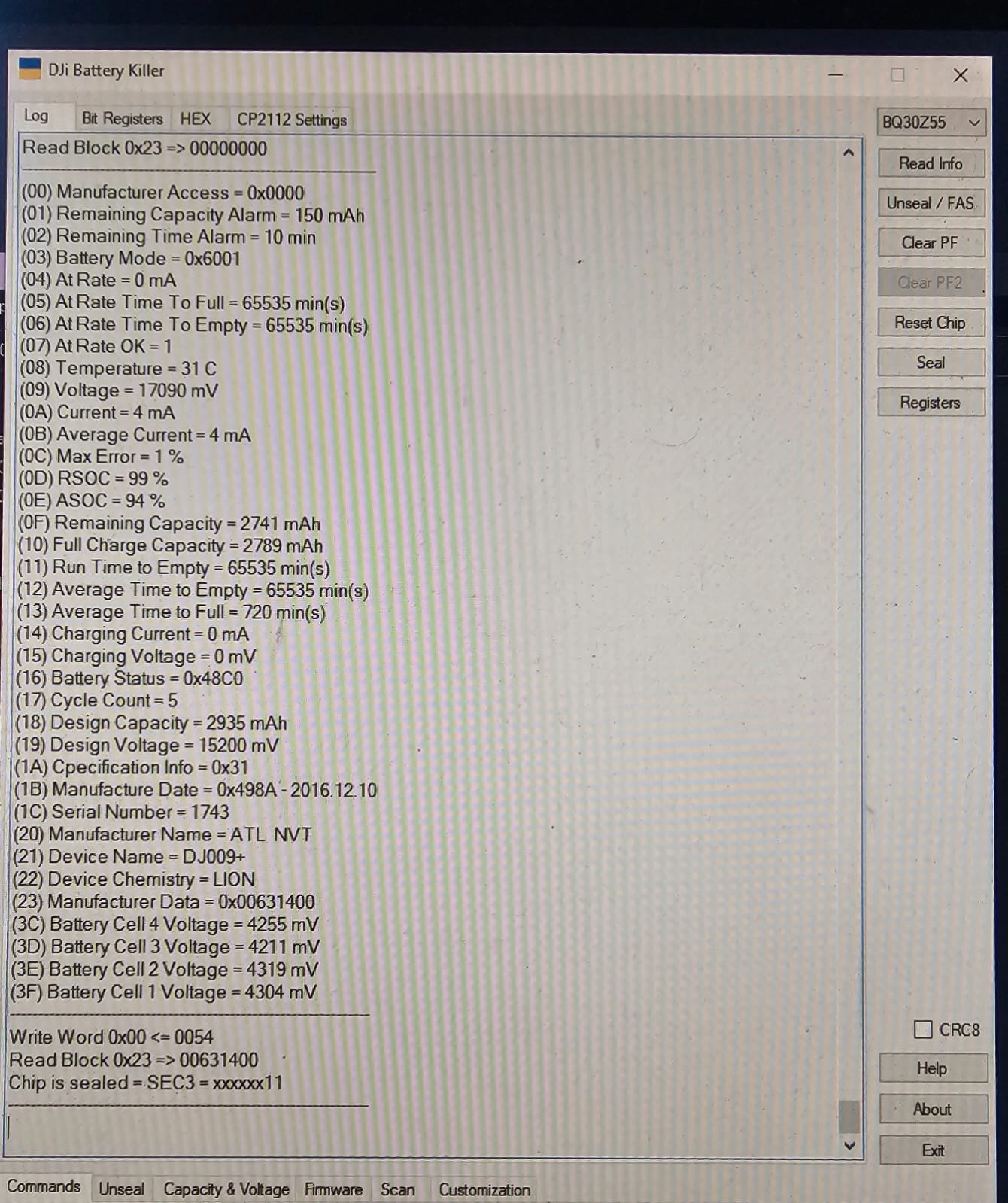

WhatsApp Image 2023-12-30 at 19.03.30.jpeg

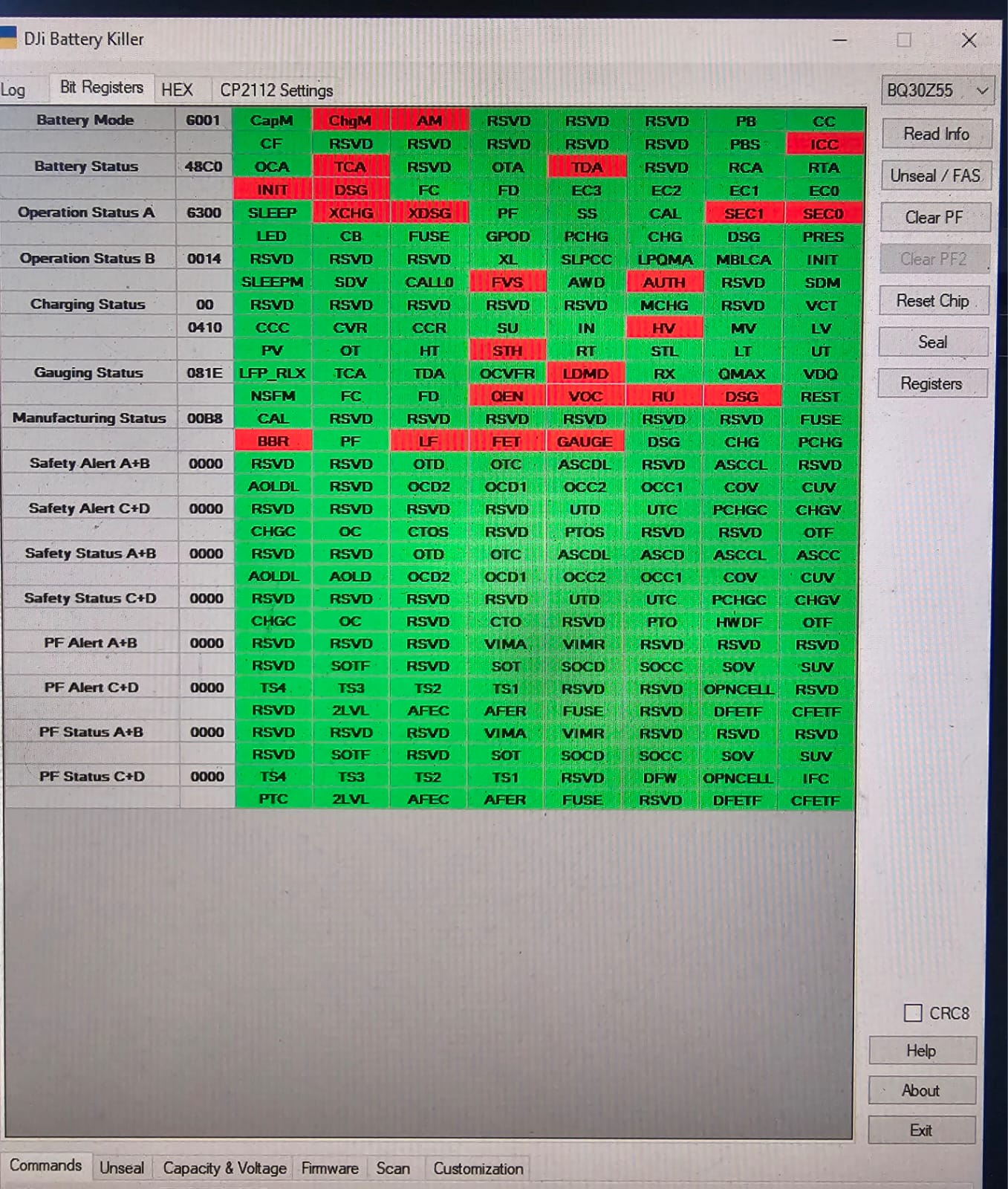

WhatsApp Image 2023-12-30 at 19.03.29.jpeg

I'd suggest reinstalling battery firmware but apparently it won't stay on long enough to try. Battery updates while refreshing drone firmware.

I'd suggest reinstalling battery firmware but apparently it won't stay on long enough to try. Battery updates while refreshing drone firmware.
I figured out what happened and now the battery is connecting and also drone starting normally but cannot take off (shows battery authentication error)

I did not know that there was firmware for the 4 V2 do these automatically update when you do a firmware update iam not sure how this is done can you please fill me in on this thanks very much

Hello everyone,
I recently recharged my dead ph4 battery using a balance charger, and the battery holds voltage perfectly fine(around 3.9 for all 4 cells). After that using cp2112 to connect the board to DJI battery killer software I was able to reset and remove PF flags but never able to remove these flags (XCHG, XDSG, SEC1, SEC2) also after hitting the read info button on log value (0C)Max Error = 1%
Shown.
Also, I plugged the original Dji charger into the battery, and the battery charged normally but after plug into the drone, the drone did not start (no beeping, no sounds nothing) also battery shut off around 5s (after plugging into the drone and start battery). Please help!
Chip - BQ30Z55
Phantom 4 Battery

View attachment 125695View attachment 125696
Hello, can you please provide some guidance on how you got this far.
I have the version 0.5 Beta software and the CP2112 card. It is all hooked up to my Phantom 4 battery.
The software can connect into the CP2112 card. (I manually charged the battery to 15V) and it holds.
But I can't get the software to read or talk to my Ph4 battery. Can you tell me how to get to where you got to?
