Crash while using Litchi

[Phantomndmore]

Went out to film river today. Beautiful calm day. Set up as normal, calibrated compass, had 9/10 satellites 95% battery. Took off to pre set height then drone flew towards first waypoint. After few seconds exited waypoint mode then flew back towards me so hit RTH. Drone then dropped out of sky light a sack of potatos! Luckily crashed into brambles which broke fall. Resulting in landing gear broke but all else seems ok.

No clue as to why this happened other than Litchi glitch?



[Fly Dawg]

See the link here below and upload your flight log from the device and we can take a look and see what happened. When you upload the file, be sure and place a link to that back here. Follow the instructions to upload:

DJI Flight Log Viewer



[Richard R]

Couple of quick questions. First, if it was heading back toward you why hit RTH? And have you checked lately to confirm what height you have set for RTH? Remember, that height is relative to your takeoff location so any changes in elevation could cause the RTH height to be too low for the aircraft location. And not related to your question, but it is the general recommendation of most of us here that compass calibration only be done when call for by the app or when the location changes considerably (100's of miles).



[LarBear360]

Went out to film river today. Beautiful calm day. Set up as normal, calibrated compass, had 9/10 satellites 95% battery. Took off to pre set height then drone flew towards first waypoint. After few seconds exited waypoint mode then flew back towards me so hit RTH. Drone then dropped out of sky light a sack of potatos! Luckily crashed into brambles which broke fall. Resulting in landing gear broke but all else seems ok.

No clue as to why this happened other than Litchi glitch?

Never heard of Litchi causing power failure.



[Phantomndmore]

Couple of quick questions. First, if it was heading back toward you why hit RTH? And have you checked lately to confirm what height you have set for RTH? Remember, that height is relative to your takeoff location so any changes in elevation could cause the RTH height to be too low for the aircraft location. And not related to your question, but it is the general recommendation of most of us here that compass calibration only be done when call for by the app or when the location changes considerably (100's of miles).

Hit RTH because although heading towards me was veering a bit at an angle away. The last flight location was 80 miles away. RTH is set at 80 metres



[Fly Dawg]

The last flight location was 80 miles away

The compass should not need a calibration at that distance. And without the flight data, it's all just speculative as to what the issue was. By the way, was the battery fully seated upon your retrieval of the AC? A loose battery is more common than you may think.



[Meta4]

No clue as to why this happened other than Litchi glitch?

Most unlikely to have anything to do with Litchi.
RTH is RTH - regardless of which app you are using.
But falling from the sky isn't caused by RTH programming.
It's due to: hitting something, propulsion system failure or battery issues.

It won't be involved but there was no need to calibrate the compass before the flight.
There should never be any need to calibrate the compass.



[Phantomndmore]

The compass should not need a calibration at that distance. And without the flight data, it's all just speculative as to what the issue was. By the way, was the battery fully seated upon your retrieval of the AC? A loose battery is more common than you may think.

Yes battery was fine. After crash powered down then back up with no problems.



[Phantomndmore]

See the link here below and upload your flight log from the device and we can take a look and see what happened. When you upload the file, be sure and place a link to that back here. Follow the instructions to upload:

DJI Flight Log Viewer

DJI Flight Log Viewer - PhantomHelp.com



[Fly Dawg]

At quick glance, you never went anywhere but basically straight up. We need to see the mission profile. It looks like it either A) Never loaded correctly or B) There were errors in the mission plan itself. I am excluding All the ATTI mode switches for the moment. If you planned the mission on the HUB, share that link here.



[Phantomndmore]

At quick glance, you never went anywhere but basically straight up. We need to see the mission profile. It looks like it either A) Never loaded correctly or B) There were errors in the mission plan itself. I am excluding All the ATTI mode switches for the moment. If you planned the mission on the HUB, share that link here.

Mission Hub - Litchi



[Fly Dawg]

Was that intentional to set waypoint1 to 103 meters?



[LarBear360]

May be by design, however, waypoint #1 is set at 300+ feet. Waypoint #2 only 32.



[Phantomndmore]

Was that intentional to set waypoint1 to 103 meters?

Yes to get a view of the flight to be made and to allow ample clearance over trees



[Phantomndmore]

May be by design, however, waypoint #1 is set at 300+ feet. Waypoint #2 only 32.

That was the plan to get a good view of the course then to decent and fly just above river



[sar104]

That's a very strange event. Things started to go wrong at 86 s when location data ceased, and then got worse at 88 s, at which point most of the IMU data flatlines. Data ends around 8 seconds later, which is somewhat consistent with a dead drop from 100 m. Power looks fine. It looks like a catastrophic failure of the IMU or FC.

Did the motors stop or were they running as it fell? You mentioned that it will still power up, but will it start motors and take off?

The aircraft DAT file might shed some more light on what happened.



[Fly Dawg]

Very odd indeed. Went in to ATTI around 47 seconds and bounced all over throughout.



[Phantomndmore]

That's a very strange event. Things started to go wrong at 86 s when location data ceased, and then got worse at 88 s, at which point most of the IMU data flatlines. Data ends around 8 seconds later, which is somewhat consistent with a dead drop from 100 m. Power looks fine. It looks like a catastrophic failure of the IMU or FC.

Did the motors stop or were they running as it fell? You mentioned that it will still power up, but will it start motors and take off?

The aircraft DAT file might shed some more light on what happened.

To be honest I can’t remember now if props were spinning when it fell.
I’ve patched up the landing gear with duck tape and has a test flight and no flight issues at all. Only problem camera was off level and camera led flashing red. Managed to level with gimbal pitch adjustment to -3.7 but may need new gimble



[sar104]

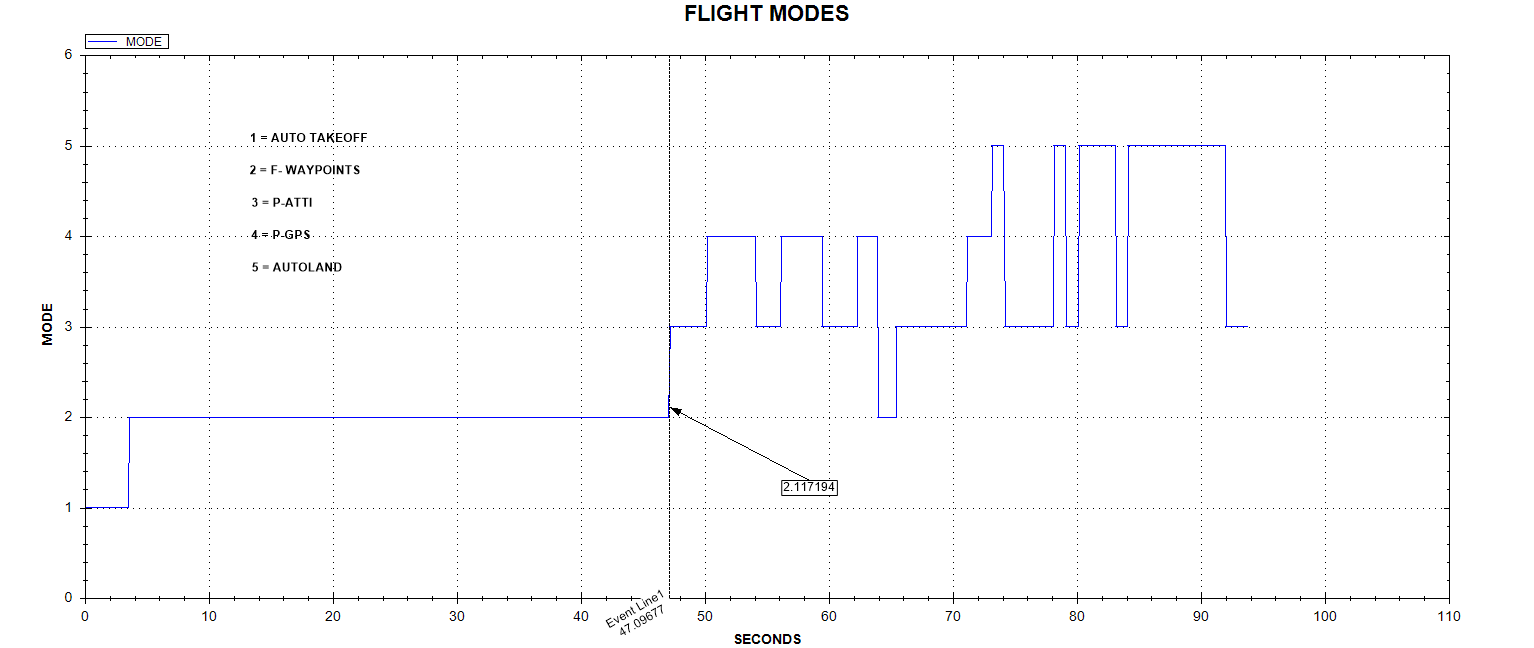

Very odd indeed. Went in to ATTI around 47 seconds and bounced all over throughout.

View attachment 96907

The switches to ATTI all seem to be due to irreconcilable IMU data.



[sar104]

To be honest I can’t remember now if props were spinning when it fell.
I’ve patched up the landing gear with duck tape and has a test flight and no flight issues at all. Only problem camera was off level and camera led flashing red. Managed to level with gimbal pitch adjustment to -3.7 but may need new gimble

So you don't remember if it was silent or buzzing?
