Hi Guys,

I just had my first, and hopefully last crash with my P3P. Nothing too remarkable, just happened to fly it full speed barkwards into the top of a tree and then watched it drop about 40 ft.

So far the only damage I can see is a broken mounting plate in one place, that I'm hoping can be fixed with some Krazy glue and a disconnected ribbon cable from the main body of the phantom to the gimbal/camera unit.

My question is regarding the ribbon cable. The cable leads pulled out of the connector which stayed clicked into the top of the gimbal/camera unit. Is it possible to reinsert these leads? Do I need to solder them? And also the leads may have gotten twisted or maybe they are intended to overlap by design, I don't know. Can anyone tell me if they go back into the connector straight across, or do some overlap others?

Thanks for any help in advance.


Joined
May 10, 2015
Messages
3,622
Reaction score
870
Age
78
Location
San Antonio, TX
they go back in order-- I have a couple of mine come loose when I pulled the gimbal off to do some repairs. I just pushed them back in and the gimbal and camera work fine.

Joined
May 29, 2015
Messages
30
Reaction score
5
Age
56
Also crashed today, totally severing the tiny gimbal arm & micro ribbon cable.

Rule #16 - Never fly within 10 ft of a large Willow tree! A gust of wind blew a long strand of willow horizontal just as I was passing. Was like someone threw a 10 ft piece of twine into the props. You can guess the rest. Photos attached of the gimbal & (former) ribbon cable.


Attachments

  • Gimbal-Damage.jpg
    117.4 KB · Views: 1,575
  • Gimbal-Damage2.jpg
    138.4 KB · Views: 661
  • Gimbal-Damage3.jpg
    105 KB · Views: 594
  • Like
Reactions: richardtomcat
Joined
May 10, 2015
Messages
3,622
Reaction score
870
Age
78
Location
San Antonio, TX
Also crashed today, totally severing the tiny gimbal arm & micro ribbon cable.

Rule #16 - Never fly within 10 ft of a large Willow tree! A gust of wind blew a long strand of willow horizontal just as I was passing. Was like someone threw a 10 ft piece of twine into the props. You can guess the rest. Photos attached of the gimbal & (former) ribbon cable.
Looks like the tree had a hammer:eek:

Joined
May 29, 2015
Messages
30
Reaction score
5
Age
56
Hehe; na, just the plain ole' lawn behind the house!
Tragically amazing what a vertical drop from 40' up will do to that gimbal :eek:

Joined
May 16, 2014
Messages
3,530
Reaction score
626
Location
Sydney Australia
Hi Guys,

I just had my first, and hopefully last crash with my P3P. Nothing too remarkable, just happened to fly it full speed barkwards into the top of a tree and then watched it drop about 40 ft.

So far the only damage I can see is a broken mounting plate in one place, that I'm hoping can be fixed with some Krazy glue and a disconnected ribbon cable from the main body of the phantom to the gimbal/camera unit.

My question is regarding the ribbon cable. The cable leads pulled out of the connector which stayed clicked into the top of the gimbal/camera unit. Is it possible to reinsert these leads? Do I need to solder them? And also the leads may have gotten twisted or maybe they are intended to overlap by design, I don't know. Can anyone tell me if they go back into the connector straight across, or do some overlap others?

Thanks for any help in advance.

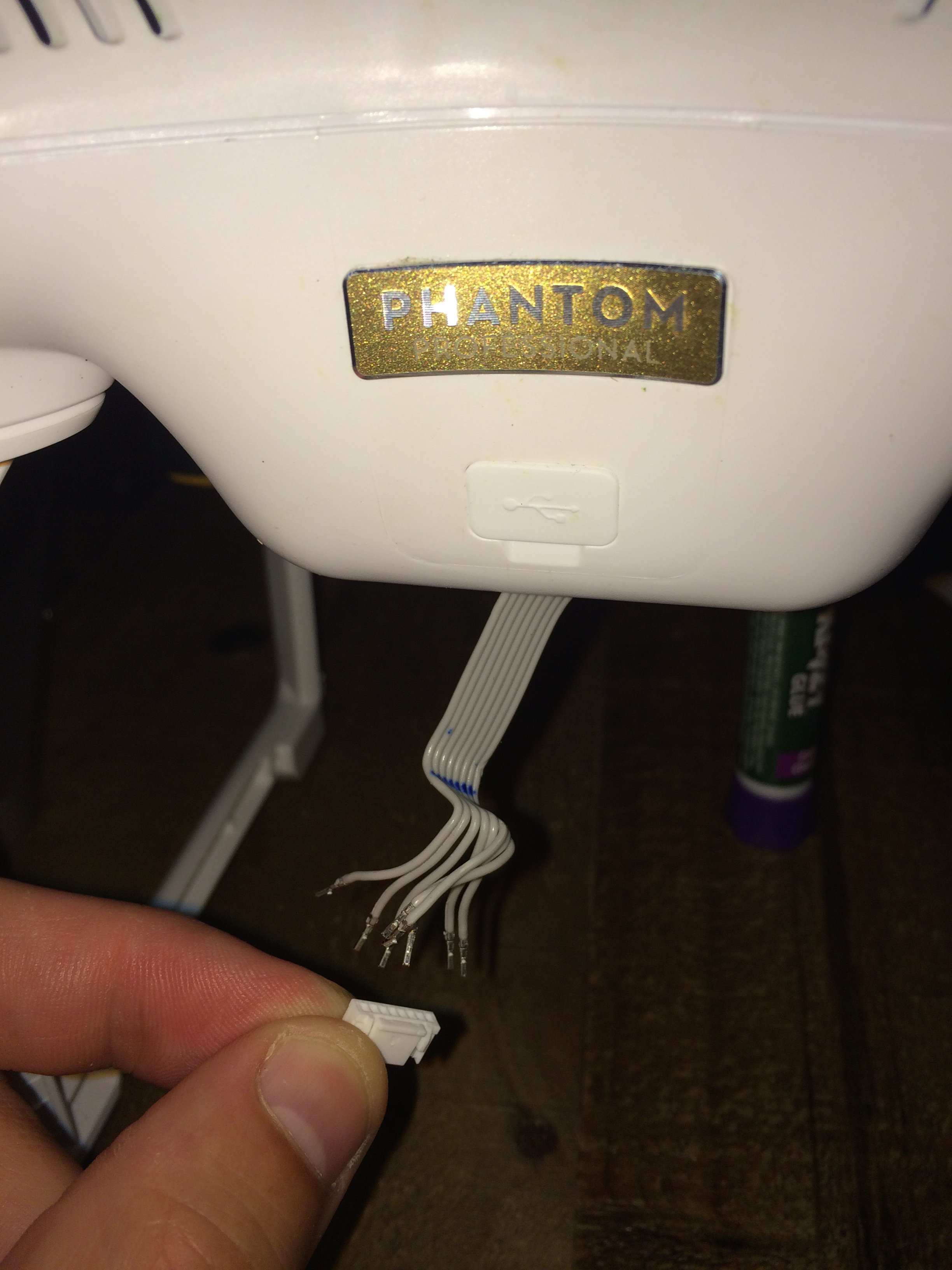

View attachment 21899

insert them back in the same order. If white clip has cracked, then insert pins and use hot glue gun to hold in place.

Joined
Jun 28, 2015
Messages
175
Reaction score
38
Age
42
Location
Illinois
Also crashed today, totally severing the tiny gimbal arm & micro ribbon cable.

Rule #16 - Never fly within 10 ft of a large Willow tree! A gust of wind blew a long strand of willow horizontal just as I was passing. Was like someone threw a 10 ft piece of twine into the props. You can guess the rest. Photos attached of the gimbal & (former) ribbon cable.

Ouch!! What's the verdict? You repair it yet? You going to?

josh

Joined
Jun 12, 2015
Messages
889
Reaction score
116
Age
40
Would the gimbal saver have helped? I'm wondering if I should get one to minimize breaks like this

Joined
May 10, 2015
Messages
3,622
Reaction score
870
Age
78
Location
San Antonio, TX
no, the gimbal saver only helps protect the gimbal at its pivot point.. I do have one on my P3 and it does give an added measure of protection. There have been reports where the gimbal arm separated in "minor crashes" and a gimbal saver may prevent this.

Joined
Jun 28, 2015
Messages
175
Reaction score
38
Age
42
Location
Illinois
Joined
May 10, 2015
Messages
3,622
Reaction score
870
Age
78
Location
San Antonio, TX
Joined
Jul 1, 2015
Messages
5
Reaction score
0
Age
32
I got same problem Dude... i found the cable and the Gimbal Yaw arm ... idk if works


Also crashed today, totally severing the tiny gimbal arm & micro ribbon cable.

Rule #16 - Never fly within 10 ft of a large Willow tree! A gust of wind blew a long strand of willow horizontal just as I was passing. Was like someone threw a 10 ft piece of twine into the props. You can guess the rest. Photos attached of the gimbal & (former) ribbon cable.

Joined
May 29, 2015
Messages
30
Reaction score
5
Age
56
My P3P is checked into the "queue" as of today at DJI-California for repair.

Joined
Nov 19, 2015
Messages
83
Reaction score
9
Location
Estes Park, Colorado
Also crashed today, totally severing the tiny gimbal arm & micro ribbon cable.

Rule #16 - Never fly within 10 ft of a large Willow tree! A gust of wind blew a long strand of willow horizontal just as I was passing. Was like someone threw a 10 ft piece of twine into the props. You can guess the rest. Photos attached of the gimbal & (former) ribbon cable.
Just installed a new yaw arm (that's what you broke) and cable.

Joined
Mar 3, 2016
Messages
2
Reaction score
0
Age
32
Hello, I had 2 days ago an accident with tree also. Planning to buy a new gimbal from dji, but what about those cables? Cause one small peace is broken. Where I can find that white peace? Please help, cause in my country nobody sells.


Attachments

  • 12825341_10156689333475145_1606073688_n.jpg
    51.3 KB · Views: 404
