There is lots of discussions about FPVLR antennas (circular wires) and DBS (magic white plate), can you explain the difference in these and what works better in real world circumstances?



[FantomFlier]

nice setup should be very good

I don't know much about the subject, as my question will illustrate, but I am curious:- I can understand that those huge, powerful antennae can transmit a signal a much longer way than the stock antennae, but how does the quad transmit its signal all the way back without an equivalent boost?



[Pcdeveloper2014]

I don't know much about the subject, as my question will illustrate, but I am curious:- I can understand that those huge, powerful antennae can transmit a signal a much longer way than the stock antennae, but how does the quad transmit its signal all the way back without an equivalent boost?

its because the Pilot end has huge Transmit AND receive power , not only from the Hi gain antenna but the RF amps ALSO amplify the Signal as well , So when DB did a 19 Mile flight with his P3 the combined antenna and RF gain at the pilot end allowed it to work , If you had stock antennas , this would not be possible . If we modified the antennas on the bird as well and put on there a small beam ( pointing back to the pilot.) type antenna the range would increase again by a huge amount. Like with the Voyager space craft , they put out a very small amount of power , so to receive them at these huge distance the antennas are also huge will massive gain and have a very low noise figure to enable them to receive such a week signal below the background noise.



[ryanmanchester]

its because the Pilot end has huge Transmit AND receive power , not only from the Hi gain antenna but the RF amps ALSO amplify the Signal as well , So when DB did a 19 Mile flight with his P3 the combined antenna and RF gain at the pilot end allowed it to work , If you had stock antennas , this would not be possible . If we modified the antennas on the bird as well and put on there a small beam ( pointing back to the pilot.) type antenna the range would increase again by a huge amount. Like with the Voyager space craft , they put out a very small amount of power , so to receive them at these huge distance the antennas are also huge will massive gain and have a very low noise figure to enable them to receive such a week signal below the background noise.

Agreed and I only amp one side, pointless (both sides hooked up) and find it works better as unless the c/lines are spot on it messes feed up but with one side it's unreal.



Sent from my iPhone using PhantomPilots mobile app



[ryanmanchester]

Sent from my iPhone using PhantomPilots mobile app



[WetDog]

in my back yard.
so far i lost every bird due to distance. LOL

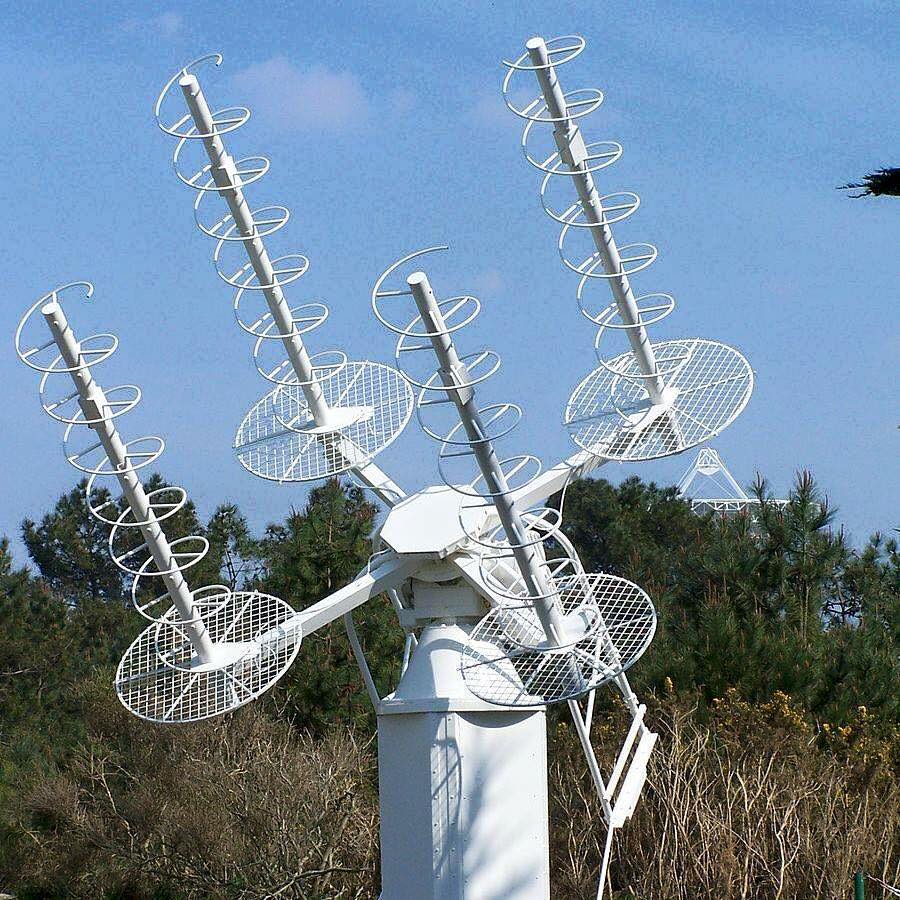

View attachment 57286

I've been trying to figure out how to put one of those on my RC. Just never seem to fit.



[snerd]

I need a full-wave antenna for top-band. I'm confined to a small apartment. Any suggestions?



[Pcdeveloper2014]

Agreed and I only amp one side, pointless (both sides hooked up) and find it works better as unless the c/lines are spot on it messes feed up but with one side it's unreal.



Sent from my iPhone using PhantomPilots mobile app

yes doing both can upset the TR /RX path and then issues with timing .



[ryanmanchester]

yes doing both can upset the TR /RX path and then issues with timing .

What's an ideal or max length for sma lines? Think I've hooked up a 20m to N to SMA then a joiner then to antennas or amp etc, I know dBi is lost but how does the top end cabling stand up? Obviously better than standard but to what extent?


Sent from my iPhone using PhantomPilots mobile app



[Pcdeveloper2014]

What's an ideal or max length for sma lines? Think I've hooked up a 20m to N to SMA then a joiner then to antennas or amp etc, I know dBi is lost but how does the top end cabling stand up? Obviously better than standard but to what extent?


Sent from my iPhone using PhantomPilots mobile app

at what frequency ? you can see tables that show the loss per meter before you actually do anything with it , simply the higher the freq the bigger the loss.

a bit like this chart above.



[Pcdeveloper2014]

I need a full-wave antenna for top-band. I'm confined to a small apartment. Any suggestions?

move to an open field ....



[ryanmanchester]

She's finished, neighbours be like "is he espionage'in" [emoji85][emoji85][emoji85][emoji85][emoji23]


Sent from my iPhone using PhantomPilots mobile app



[Pcdeveloper2014]

you need to feed that lot with LDF450 hardline , your going to loose a huge amount of signal with those cables .

She's finished, neighbours be like "is he espionage'in" [emoji85][emoji85][emoji85][emoji85][emoji23]


Sent from my iPhone using PhantomPilots mobile app



[Gasturbine]

Wow I like that ,can you give us some range figures, and how difficult is it to keep pointed at the bird.??

As PCdeveloper says the cheap Chinese yagis on ebay are useless!,... these two 7ele ones I am using are very well matched and do perform well , they are from the" turbotenna" nextg co. but with the supplied usb wifi dongle removed and then directly connected to the MIMO antenna ports on the P4 controller , very easy to keep pointed at P4 as not too narrow, I have them on a detachable ali boom that connects to the stand bar under the controller, of course 2.4ghz is line of sight and badly effected by wet leaves and trees!!, (microwave oven frequency...ish!!)



[Multicoptertec]

Hello from KI6TG, HAM for about 35 years.



[maxwell smart]

Hi there.
It can be a little hard to stay with the bird, but that is the key to getting some range.
I have gone 3 miles with good signal all the way, and only 180ft up. I get nerves that far out.



[Pcdeveloper2014]

Hello from KI6TG, HAM for about 35 years.

Hello OM Welcome a fellow Ham



[Gasturbine]

Hi there.
It can be a little hard to stay with the bird, but that is the key to getting some range.
I have gone 3 miles with good signal all the way, and only 180ft up. I get nerves that far out.

Phew , 3 miles out!, I would think battery volts might start to increase your heart rate?, from my qth location in a wooded clearing I can manage a mile, so need to try it in the clear to see what can be done, 73 G4IKI



[RocketBrew]

What would you consider the design of the stock antenna on the W300 controller to be?
Some sort of patch design?
"Front": "Back":
