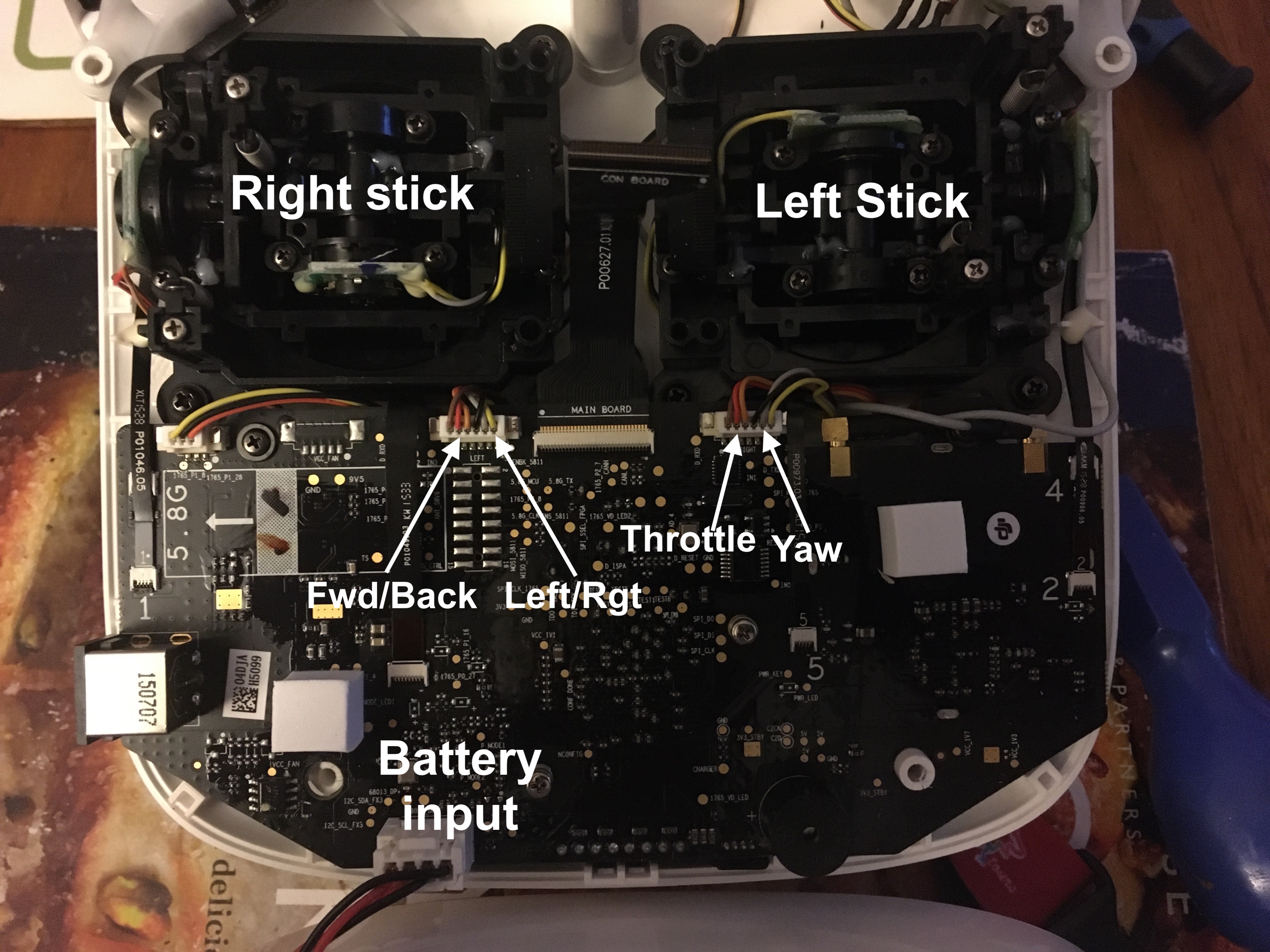

P3A remote motherboard.


Attachments

  • IMG_8977.jpg
    5.5 MB · Views: 18
Last edited:
  • Like
Reactions: dirkclod
Joined
Nov 1, 2018
Messages
1,160
Reaction score
568
Age
83
Following Jerry's excellent introduction to modifying a remote controller, going to have a go at my P3A Tx with the following mod to reduce and stabilise the Yaw/panning speed:

Components fro Bitbox here in the UK:
Potentiometer
Switch

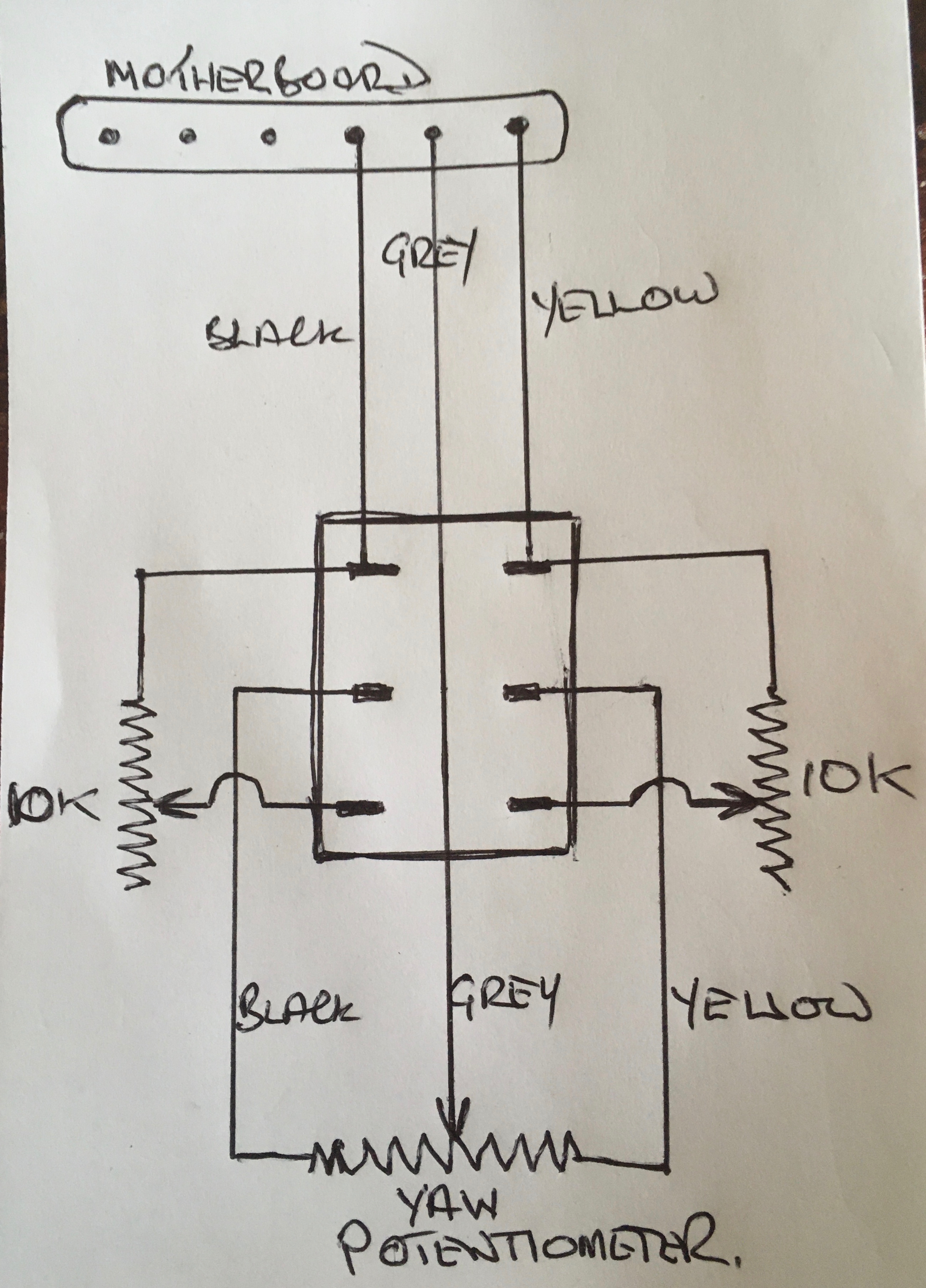

Circuit:

Does it look workable Jerry??

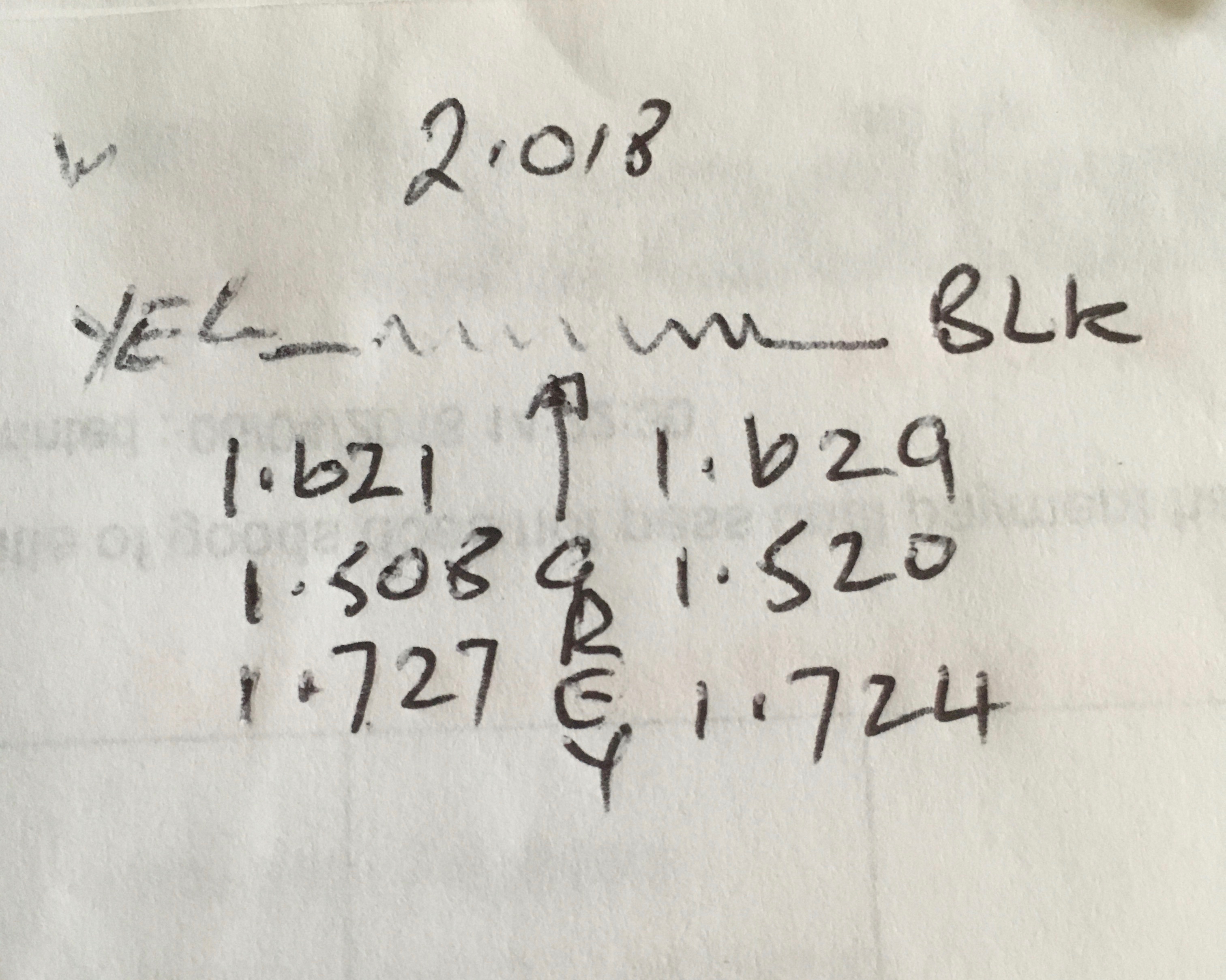

Not sure about the 10K pot in each leg as the yaw pot only moves about 100Ω each side of centre - these are the readings when moving the stick fully one way and then the other -


Last edited:
Joined
Oct 29, 2020
Messages
13
Reaction score
5
Age
32
Yea bet thing is to drop your EXPO and just practice the movement. If you have Tripod mode on that model that will be great to

Joined
Apr 10, 2014
Messages
2,278
Reaction score
1,252
Age
49
Location
Sarasota, FL. USA!
That should be it ,
Looks good from here, just make sure left and right match exactly! And you should be good! Like I said I’m not sure the pots on a P3, are the same or different from that of a p2 or p1 for that matter? Like You said you may have to adjust the ohms to compensate! The variable resistor may help! Set it and forget it! Lol!
Lmk how it works out?

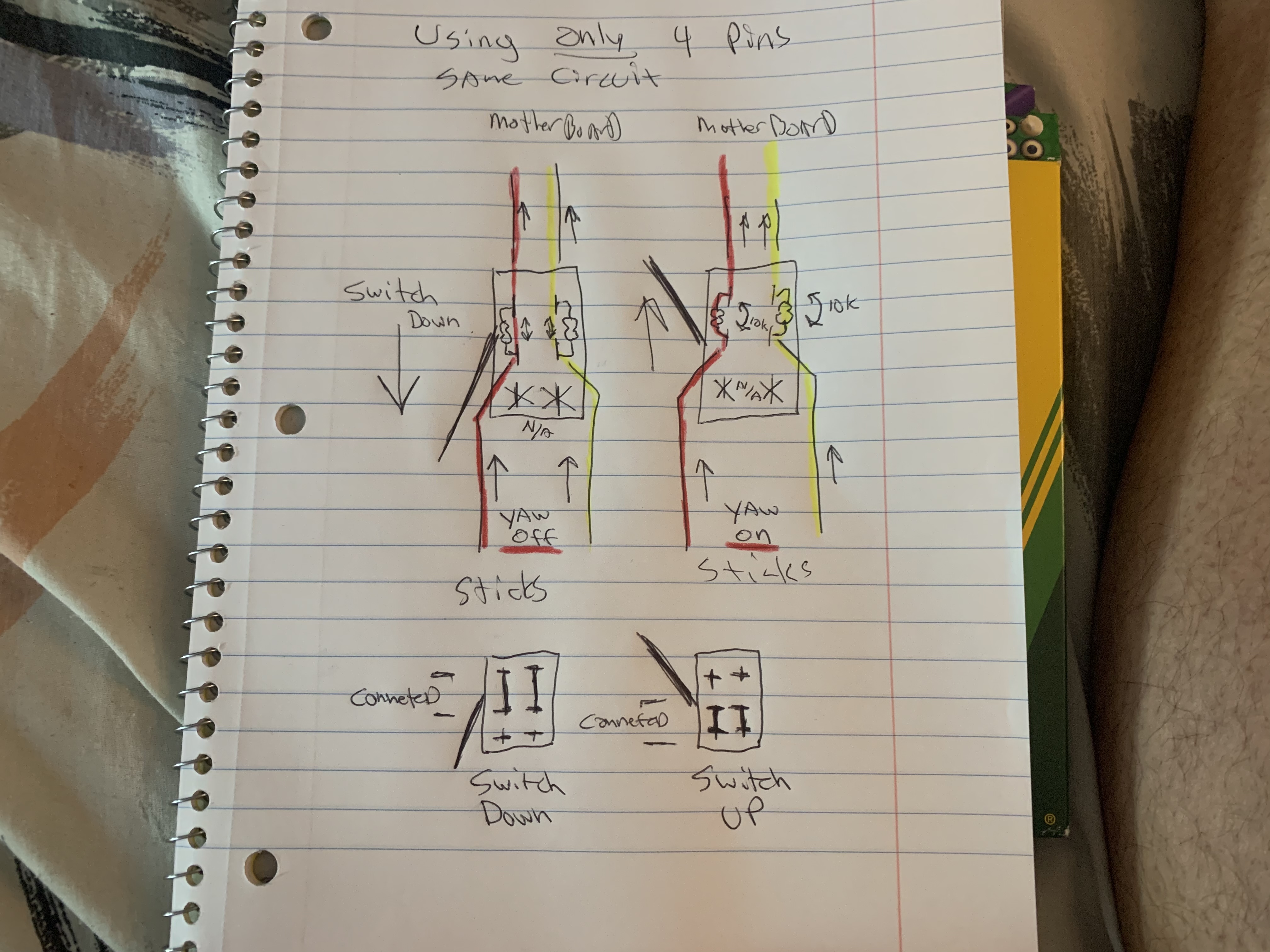

here was what I drew up

  • Like
Reactions: dirkclod
Joined
Nov 1, 2018
Messages
1,160
Reaction score
568
Age
83
We're reading from the same page Jerry, just waiting for the bits to arrive!

Cheers

Joined
Nov 1, 2018
Messages
1,160
Reaction score
568
Age
83

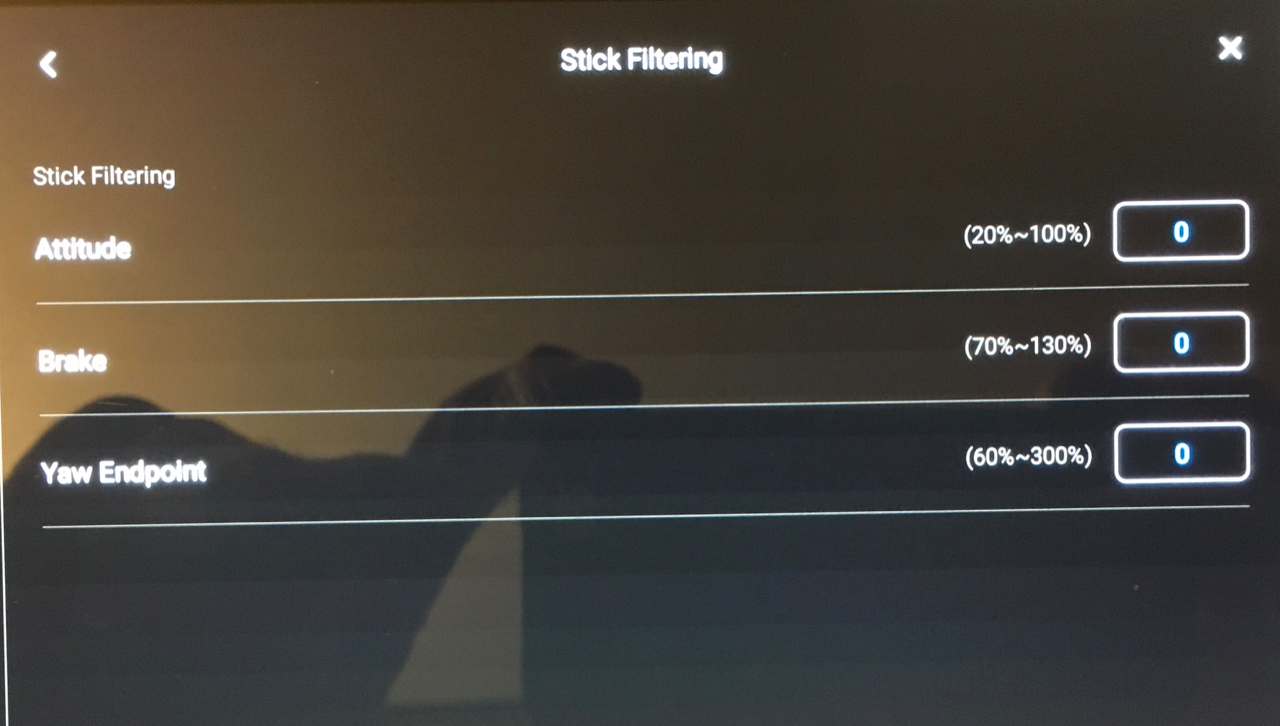

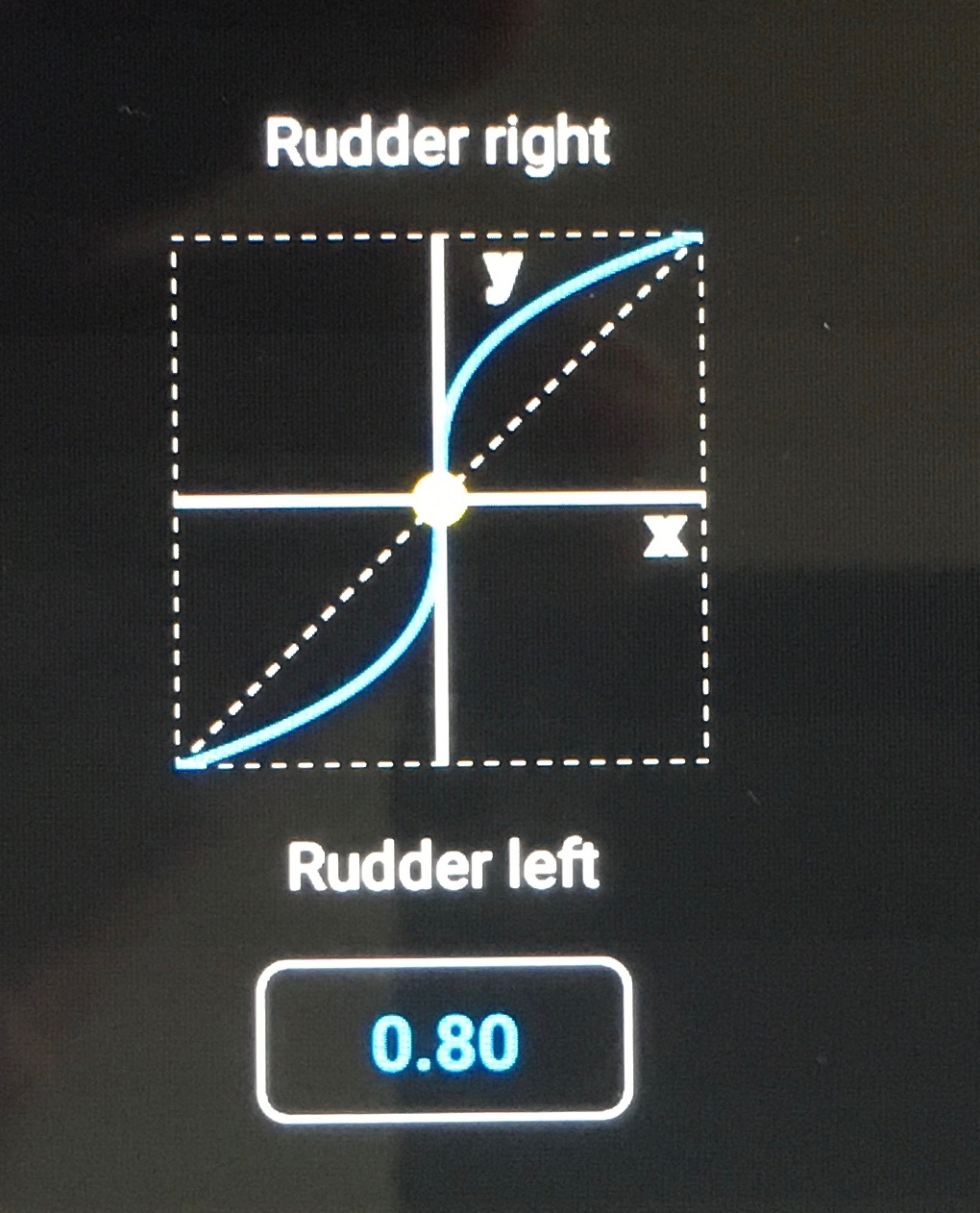

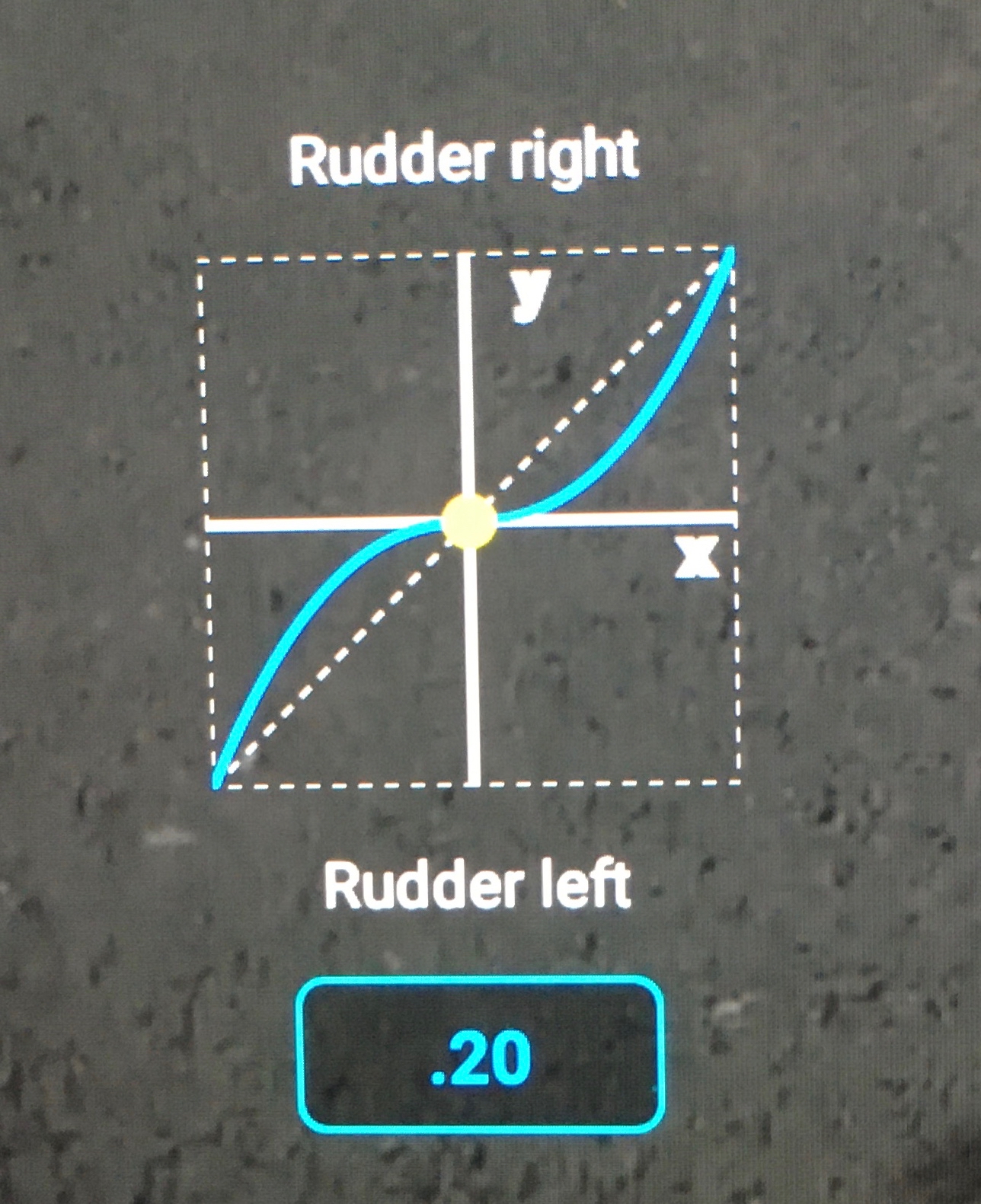

Yesterday I went into advanced settings in. the App and adjusted the Yaw Endpoint. Without anything connected, the range indicated 60% - 300%. However when everything up and connected it changed to 100% - 200% and was actually set to 150%.
I reduced this to minimum, 100% and did a trial flight and must admit it did seem to slow down the rotation speed. It was however very windy so quite jerky. I'll have another go when the wind drops, but I'll still probably go ahead with the modification just to see what difference the resistors make! (I love mucking about🤣)

Joined
Nov 1, 2018
Messages
1,160
Reaction score
568
Age
83

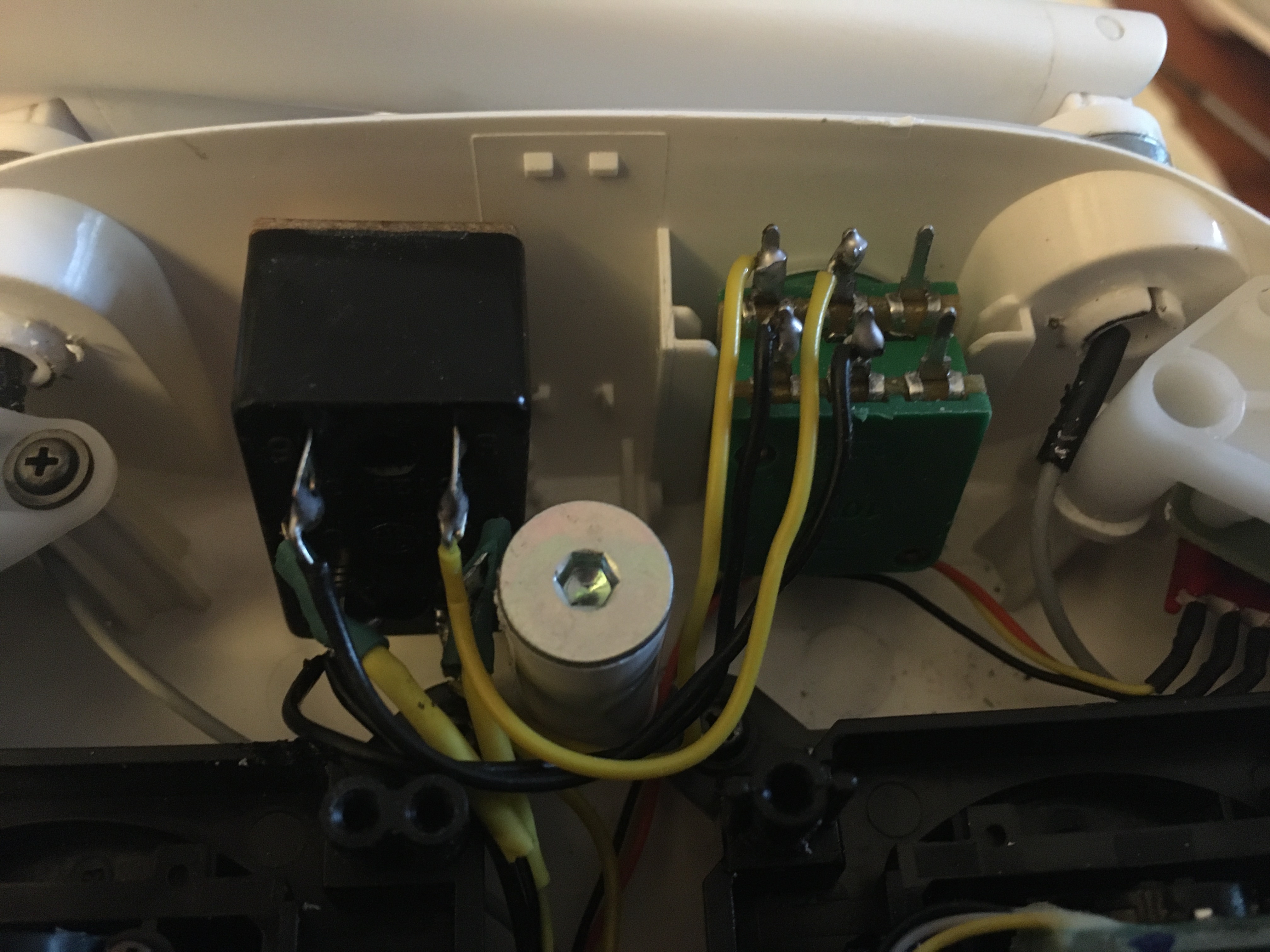

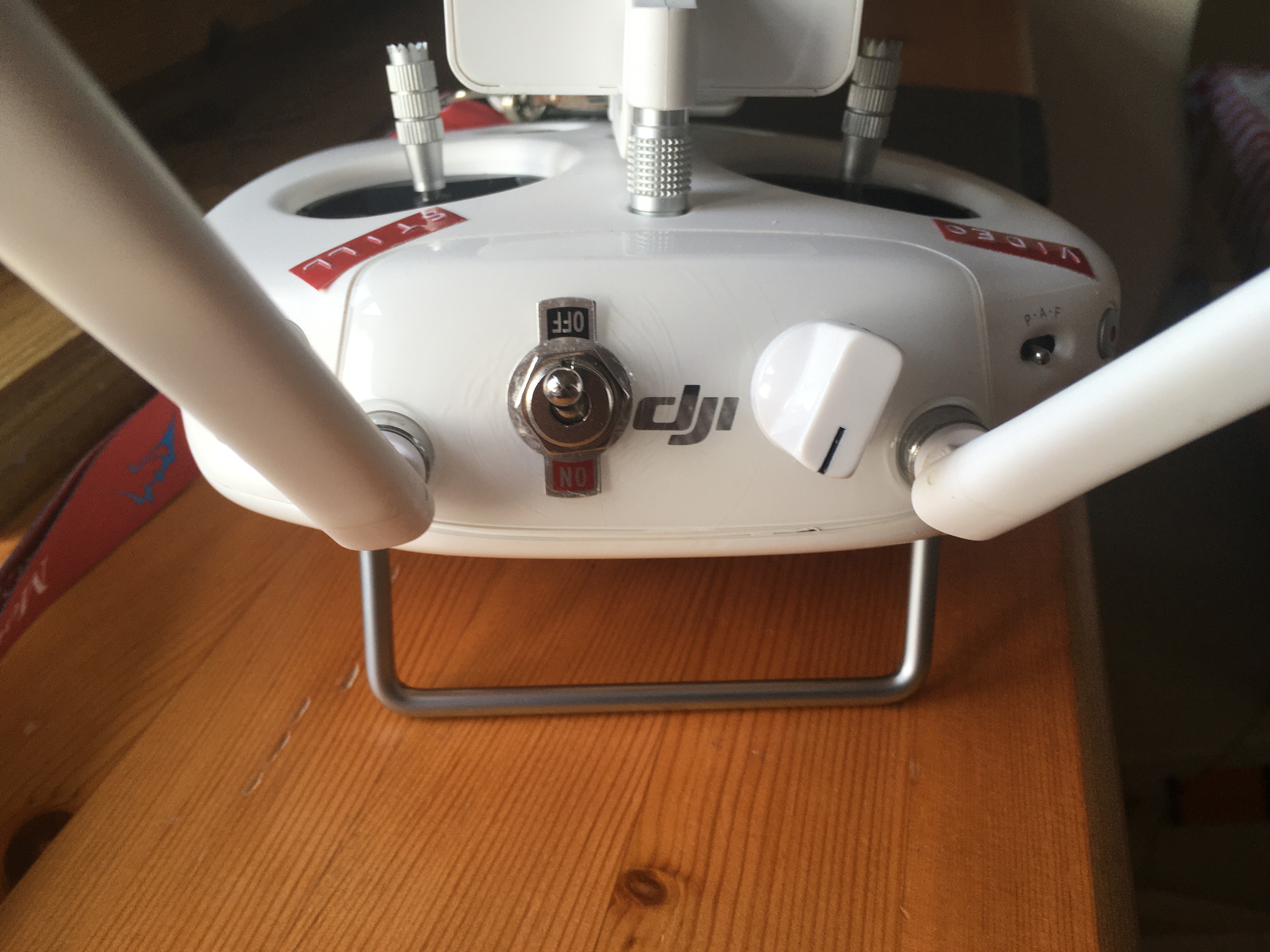

Hey Jerry - Mod completed and works a treat. I can now just push the stick hard over left or right and control the panning (yaw) speed with the potentiometer.
In the very basic video, the first couple of rotations were with mod OFF and stick hard over, then a couple with the Mod ON and stick hard over.
Very windy so a bit wobbly but you get the idea!

IMG_8991.JPG IMG_8992.jpg

Short video demonstration.

Last edited:
  • Like
Reactions: dirkclod
