I'm replacing shell on my P3pro. I need to know the location of the 4 antennas on the landing gear. When i removed them i forgot to label where each one goes,
thank you for any help
Rob
thank you for any help
Rob
P3 pro antenna position on aircraft
- Thread starter Vetteman4292
- Start date
The compass is a no brainer. The two antennas with the short wires are located on the rear of the drone, it doesn’t matter which one goes to which side. Obviously then the antennas with the long wires are for the front, and they also are interchangeable from side to side. The more important thing is the connections to the OFDM board. For that just do a search on the forum.
I apricate that I didn't unplug from board so i think i can make this work
thank you
thank you

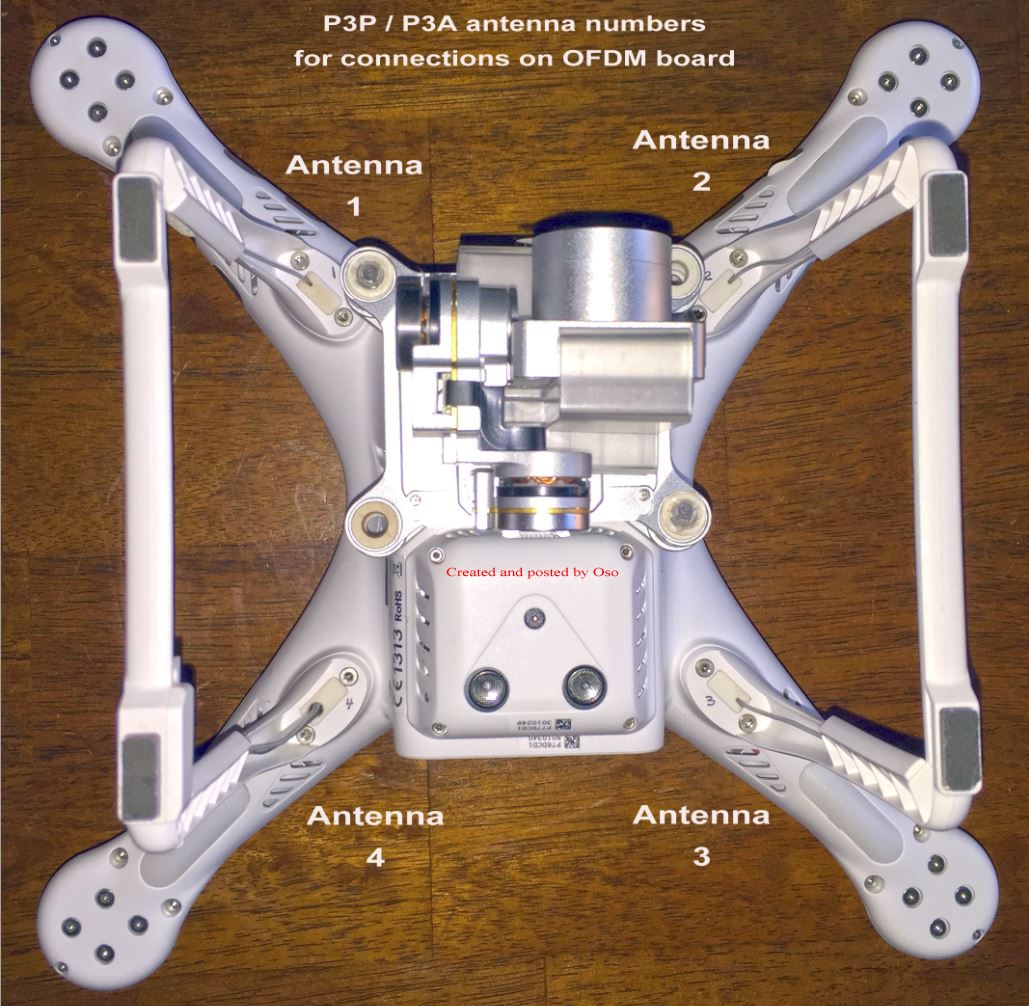

In post # 5 @Oso has a photo of the antennas locations. See the attached.
Oso
Premium Pilot
Thanks @KachemakDiver
@Vetteman4292 - In case you can't view or don't want to download pdf files, here's the direct link and also the photo @KachemakDiver mentioned. Cheers!
@Vetteman4292 - In case you can't view or don't want to download pdf files, here's the direct link and also the photo @KachemakDiver mentioned. Cheers!
thank you to you both KachemakDiver and Oso,
I can definitely relate to getting older
I can definitely relate to getting older
Next time take pictures. I’d be screwed if I didn’t. Next day it’s all forgotten, zip, nadda. Just reshelled a P4, so been there. Assume your legs were still good. Have fun with the little plugs.
Good luck
Good luck
On my Phantom 3 professional mod to Phanvic the antennas are horizontal and they work the same as regular Phantom with vertical positioning.
- Joined
- Apr 14, 2015
- Messages
- 3,534
- Reaction score
- 2,041
- Age
- 46
Since you’re still in the process, find antennas from the remote controller! People that did the modification on there controller probably saved the leftover og antennas. You tape them on the legs and get triple the distance. We did a whole thread on it
