No image transmission signal - P3P
- Thread starter AsiaFlyer
- Start date
-----------------------------------------------------------------------
drive.google.com
Hi old post I know but hoping to get an answer.
I lost video feed followed a stalled firmware update, no cooling fan used. Was advised I likely damaged the gimbal board.
I don’t see a replacement around to buy is anybody repairing or flashing the boards ?
Thanks
Barry
- Joined
- Jul 13, 2016
- Messages
- 289
- Reaction score
- 202
- Age
- 72
hi, your problem is too common on this thread if u have the skills and a solder iron an ftr32 so guys here will help u help your self , if u dont have any technical knowledge then u need direct help from dji repair shop
Hi Everyone!
I need a good piece of advice, let me explain.
I am new to this forum but I am not new to this scene. (I am repairing drones since 2016, I repaired more than 1000 drones successfully.) I also repaired several P3P gimbal boards with fw extraction and reflashing before these tools (ph3pns etc.) existed.
This time I am also trying to repair a P3P that has no mechanical damage, but it was sitting in its box for a long time. Of course there is no image transmission. I thought I will just reflash and it will work. But not. Here are my findings:
The console log file shows a strange error which I couldn't find on any of the forums. Here is the log: DaVinci Start GetFPGAStatus Err! - Pastebin
The strange error for me is this:
GetFPGAstatus err! FPGA[1,0,1,0]-1.000000:0 hdmi status is 1 ARM Load: 6% Video fps: 7 fps Video bit rate: 0 kbps PHY Bandwidth: 0 kbps Time: 00:00:10 Resolution: 1280x720
(repeating)
Any advice can help so don't hold your suggestions back. This is a non-damaged drone. I also checked and swapped the ofdm module with a known good module. Also measured the gimbal-ofdm ribbon cable, so I don't think it is a connection issue.
The RC has a green light. The gimbal has a green light too.
However in the GO App it says gimbal disconnected so I suspect something is not good with the gimbal board communication-wise.
Of course I tried several SD card methods but it is not recognized.
Do you have any idea where should I continue with the debugging and investigation? Thank you all in advance!
I need a good piece of advice, let me explain.
I am new to this forum but I am not new to this scene. (I am repairing drones since 2016, I repaired more than 1000 drones successfully.) I also repaired several P3P gimbal boards with fw extraction and reflashing before these tools (ph3pns etc.) existed.
This time I am also trying to repair a P3P that has no mechanical damage, but it was sitting in its box for a long time. Of course there is no image transmission. I thought I will just reflash and it will work. But not. Here are my findings:
The console log file shows a strange error which I couldn't find on any of the forums. Here is the log: DaVinci Start GetFPGAStatus Err! - Pastebin
The strange error for me is this:
GetFPGAstatus err! FPGA[1,0,1,0]-1.000000:0 hdmi status is 1 ARM Load: 6% Video fps: 7 fps Video bit rate: 0 kbps PHY Bandwidth: 0 kbps Time: 00:00:10 Resolution: 1280x720
(repeating)
Any advice can help so don't hold your suggestions back. This is a non-damaged drone. I also checked and swapped the ofdm module with a known good module. Also measured the gimbal-ofdm ribbon cable, so I don't think it is a connection issue.
The RC has a green light. The gimbal has a green light too.
However in the GO App it says gimbal disconnected so I suspect something is not good with the gimbal board communication-wise.
Of course I tried several SD card methods but it is not recognized.
Do you have any idea where should I continue with the debugging and investigation? Thank you all in advance!
You need to look earlier, at kernel boot. You will notice there are two copies of kernel. The primary kernel did not booted - only recovery kernel was able to boot.
You need to fix primary kernel.
Thank you @quaddamage, I missed that! I will take a second shot about it today and I will report back on my progress! Thanks!

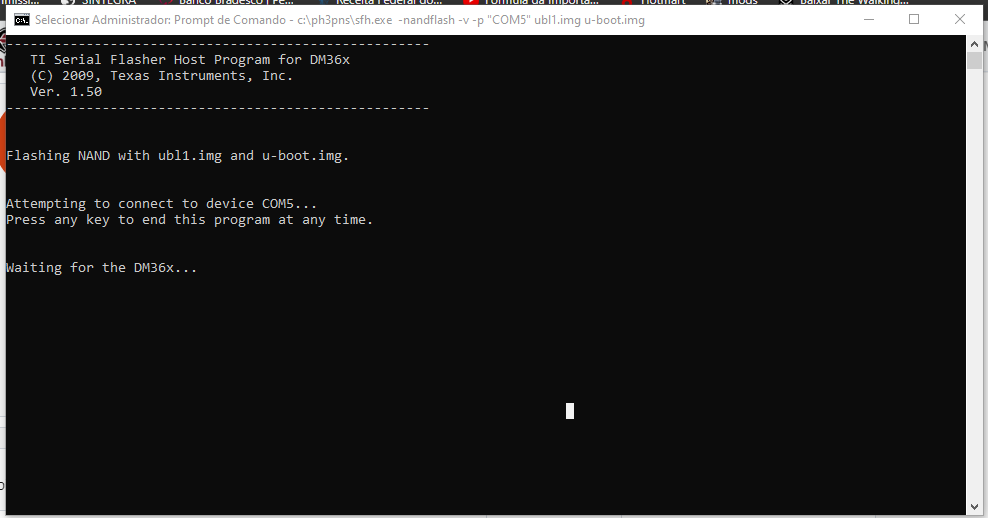

I reflashed the NAND with the primary kernel image, you can see my log here. However still the same error occurs when I start the drone.
Any other ideas? I still cannot access USB to reflash everything from there.
Still error - Pastebin
Pastebin.pl is a website where you can store code/text online for a set period of time and share to anybody on earth
pastebin.pl
So after many tries I think I am stuck.
I replaced the OFDM module 2 times with known good modules - no solution.
I replaced the OFDM - GIMBAL ribbon cable with another one - no solution.
I even replaced the camera module and the gimbal flex module - no solution.
GetFPGAstatus err!
FPGA[1,0,1,0]-1.000000:0
hdmi status is 1
ARM Load: 4% Video fps: 7 fps Video bit rate: 0 kbps PHY Bandwidth: 0 kbps Time: 00:00:46 Resolution: 1280x720
The reason I think that the gimbal board is the culprit is that it still cannot recognize the SD card. Also reading from the serial log it seems to recognize the OFDM module because when I disconnect the OFDM then the gimbal board restarts. When they are connected only the "GetFPGAstatus err!" appears repeatedly.
So maybe there is some problem with Ambarella? I have read that it controls the SD card and also have role in the data flow.
I replaced the OFDM module 2 times with known good modules - no solution.
I replaced the OFDM - GIMBAL ribbon cable with another one - no solution.
I even replaced the camera module and the gimbal flex module - no solution.
GetFPGAstatus err!
FPGA[1,0,1,0]-1.000000:0
hdmi status is 1
ARM Load: 4% Video fps: 7 fps Video bit rate: 0 kbps PHY Bandwidth: 0 kbps Time: 00:00:46 Resolution: 1280x720
The reason I think that the gimbal board is the culprit is that it still cannot recognize the SD card. Also reading from the serial log it seems to recognize the OFDM module because when I disconnect the OFDM then the gimbal board restarts. When they are connected only the "GetFPGAstatus err!" appears repeatedly.
So maybe there is some problem with Ambarella? I have read that it controls the SD card and also have role in the data flow.
- Joined
- May 1, 2023
- Messages
- 8
- Reaction score
- 0
- Age
- 37

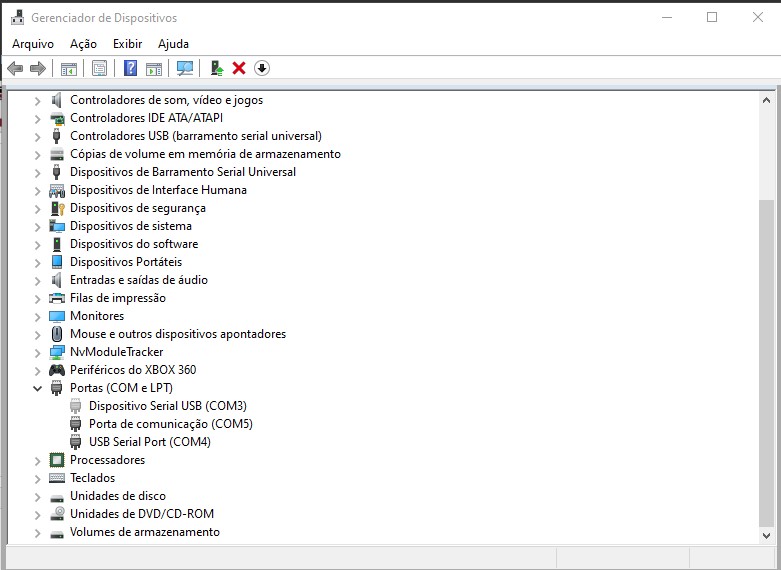

> help please? help please, I don't know what to do
I think every instruction mentions this problem. I even updated mine to make it more clear:
github.com
For the future, if the issue you're having seem linked to a specific message on screen, it may be a good idea to ask your favorite search engine that message.
I think every instruction mentions this problem. I even updated mine to make it more clear:
dji-technical-stuff/davinci-manual-flash-firmware-in-gl300-rc.md at main · quaddama9e/dji-technical-stuff
Technical details and howtos about DJI drones. Contribute to quaddama9e/dji-technical-stuff development by creating an account on GitHub.
github.com
For the future, if the issue you're having seem linked to a specific message on screen, it may be a good idea to ask your favorite search engine that message.
i hope u can help in this "> help please? help please, I don't know what to do
I think every instruction mentions this problem. I even updated mine to make it more clear:
dji-technical-stuff/davinci-manual-flash-firmware-in-gl300-rc.md at main · quaddama9e/dji-technical-stuff
Technical details and howtos about DJI drones. Contribute to quaddama9e/dji-technical-stuff development by creating an account on GitHub.
For the future, if the issue you're having seem linked to a specific message on screen, it may be a good idea to ask your favorite search engine that message.
hi there , still flying the phantom3 se,s pro and adv through 2024
this drone no matter what u invest in newer ones cannot be forgotten, may still fly as sexy as the first days, actually i modded it by digdat0 methods on u tube for increased speed and no altitude restrictions
..
. i have a question too much out of topic i will post it here hopping some one is still interested in the phantom 3 as i am...
my objective is to remove the drone id of the phantom3 that it sends to dji aeroscope .
using the above method of modding in video the parameters of flight controller of the phantom3 are all able to be edited... but i donot see any parameter mentioning drone id , id, i hope fully can find some one who can help ... which parameter sends out the drone id of the phantom 3
a ward of caution not to get me wrong in terms of my intentions "am not in the US and no regulations for drones are there in my country, i rarely fly out of line of sight only filming nature like cliffs mountains or in nature away from cities, and advice not to be smart and fly drones near airports"
Just use the old firmware which does not send any additional packets.
Ph3 was not originally designed with Aeroscope in mind, that was added via one of last FW updates.
On old FW, Aeroscope will be able to tell only that there's Ph3 class drone in range somewhere.
I always liked V1.07.
Though some people preferred the one without proper CE zone definition, was that V1.05?
The V1.07 allows to modify more parameters via the dji-firmware-tools, for V1.05 some do not show up. But I no longer remember which ones, or by which tool.
Though some people preferred the one without proper CE zone definition, was that V1.05?
The V1.07 allows to modify more parameters via the dji-firmware-tools, for V1.05 some do not show up. But I no longer remember which ones, or by which tool.
