Gimbal Wires ripped out of connector plug in P3S

[pythonDON]

My P3S crashed into a tree and the connector board got disconnected. The grey and black single wires I know can be re-attached but im not sure about the set that should go in the connector plug

Is it possible to push that set of grey wires back in? because when i do try they are very slack and just jump out again.



[DoomMeister]

On each of the connectors attached to the wires you will find a small latch tab that has to be pulled up a bit so it can lock into the connector body. A small pick or needle can be used to gently lift them a bit. If they are bent backwards or broken off, a new connector socket has to be crimped onto the wire.



[Droneted]

jiminyfixit on this site may be able to help you. He has lots of P3 parts



[SKY-SPY]

That gray cable is cheap, just replace the whole cable , it's around 8 bucks.



[WV. Rootman]

If you are not getting telemetry, it's your grey and black wires. Cheap fix. If it is your ribbon cable, you will have no power to the gimbal and camera. It is also a cheap fix. There should be 12 volts on 4 of the 8 wires. The others are ground. Good luck.



[Harleydude]

My P3S crashed into a tree and the connector board got disconnected. The grey and black single wires I know can be re-attached but im not sure about the set that should go in the connector plug

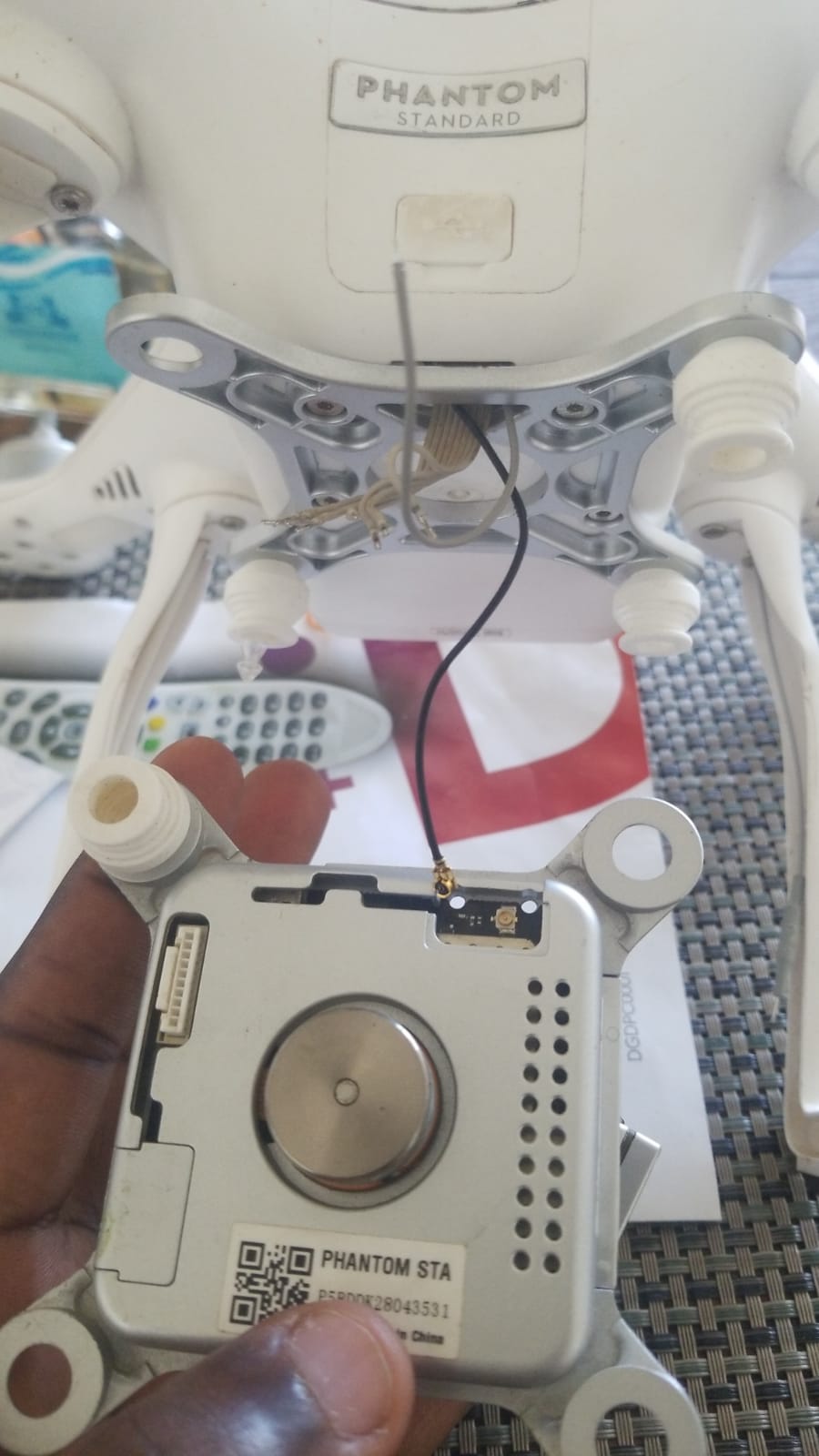

View attachment 121648

Is it possible to push that set of grey wires back in? because when i do try they are very slack and just jump out again.

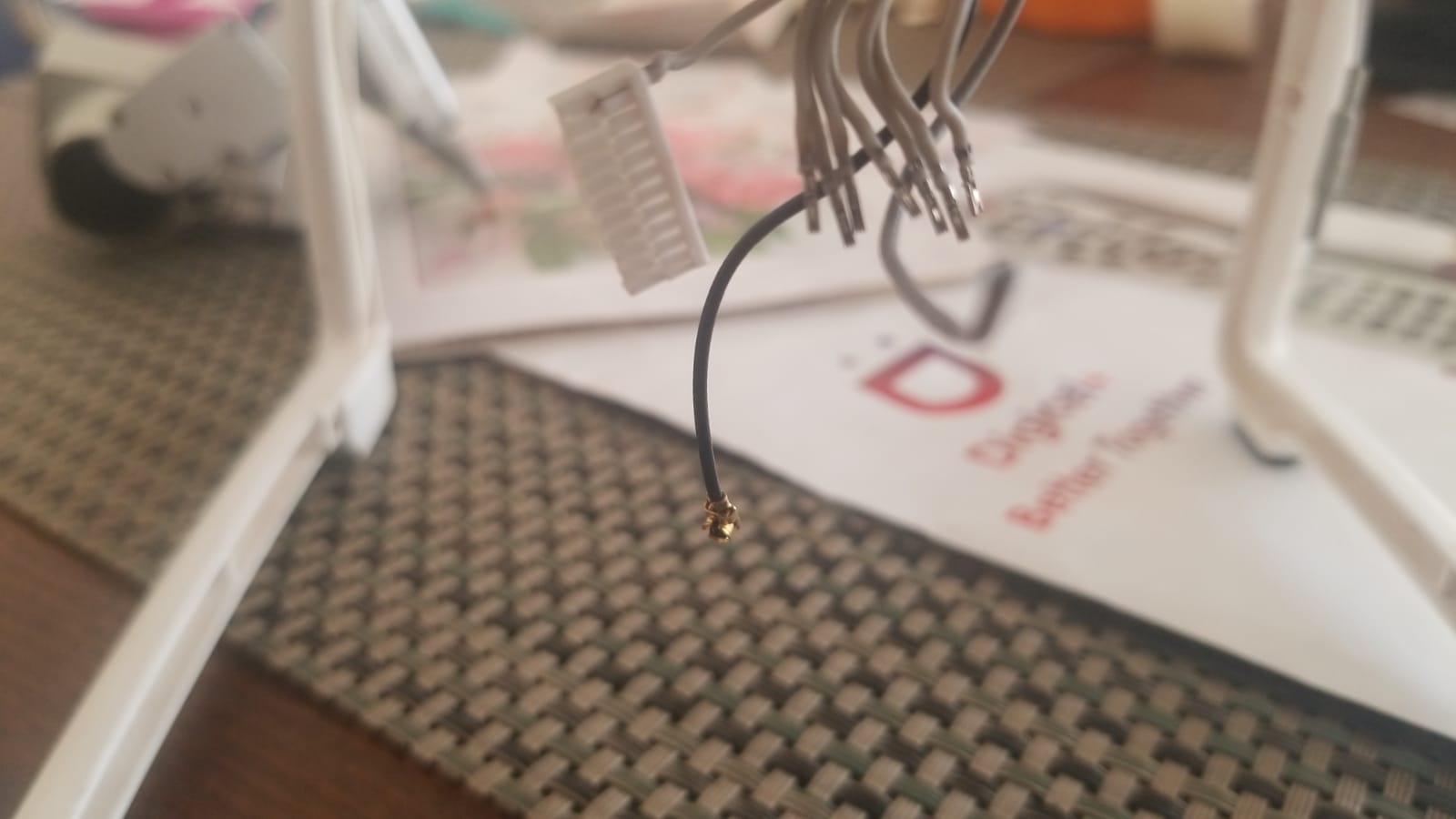

View attachment 121650

Just remember the white wire is power. Bwahahahahahaha!

Sorry...couldn't resist. Are there no color codes on those wires??? Not even a stripe?

D



[pythonDON]

Just remember the white wire is power. Bwahahahahahaha!

Sorry...couldn't resist. Are there no color codes on those wires??? Not even a stripe?

D

there isn't a white wire just grey and black. no color codes



[pythonDON]

If you are not getting telemetry, it's your grey and black wires. Cheap fix. If it is your ribbon cable, you will have no power to the gimbal and camera. It is also a cheap fix. There should be 12 volts on 4 of the 8 wires. The others are ground. Good luck.

does it matter the order in which i put them in??



[pythonDON]

could the the grey wires from P3 advanced work in the P3 standard??



[WV. Rootman]

does it matter the order in which i put them in??

The grey and black each have there own place to be plugged into. The ribbon cable can only be plugged in one way.



[pythonDON]

The grey and black each have there own place to be plugged into. The ribbon cable can only be plugged in one way.

the individual wires ripped out of the ribbon cable im talking about



[pythonDON]

On each of the connectors attached to the wires you will find a small latch tab that has to be pulled up a bit so it can lock into the connector body. A small pick or needle can be used to gently lift them a bit. If they are bent backwards or broken off, a new connector socket has to be crimped onto the wire.

is it the plastic plug you are referring to as the connector body?



[DoomMeister]

is it the plastic plug you are referring to as the connector body?

Yes
