Crashed my P3 standard and looking for parts

[shabba007]

I crashed my P3 standard today after going into a tree :-(

Damage isn't too bad, but the gimbal mounts gave way causing the gimbal cables to get yanked out. Its look as though I need to raplace a flat grey ribbon type cable which just connects in and also a single grey wire which goes inside the gimbal which I believe is also on a connector.

Can anyone tell from looking at this pic the cables I need to purchase as Im struggling to find them?

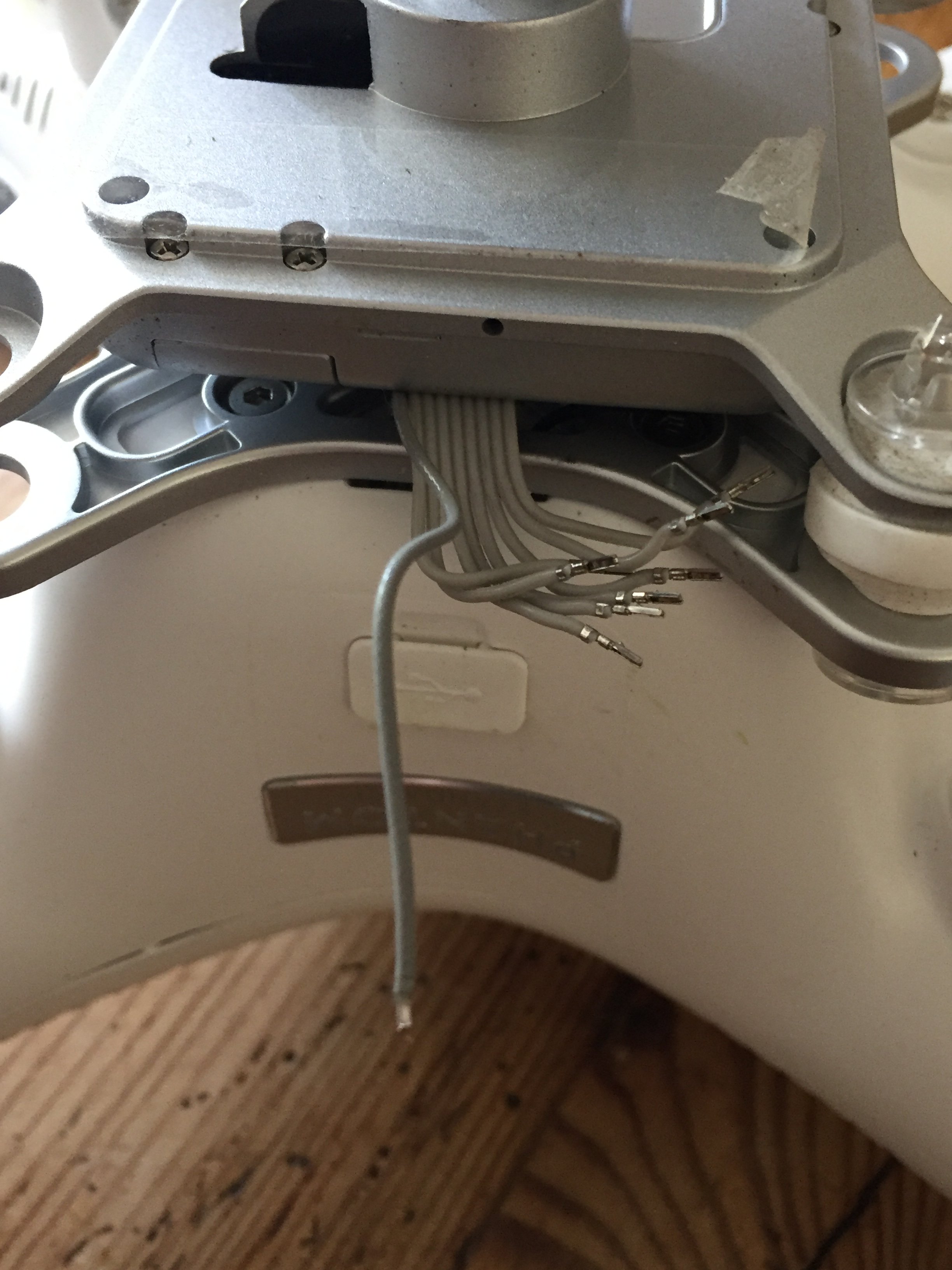

Gimbal Wires

• shabba007
• May 7, 2017



[captainmilehigh]

The flat ribbon cable is Part # 85. You may want to check if the single gray wire you spoke of just came loose from the ufl connection in the gimbal. Your pics didn't make the thread.

Part # 81 is a wire set that has the multi wire flat gray cable that may be what you were talking about also.



[shabba007]

Thanks for the reply. Here is another link to the picture. When I google part 85 is comes up with the flat plastic cable which i think is different to the one in the pic.
I've since found out that the single grey cable is for one of the wireless antenna which I've ordered, buts its the other 8 pin cable I'm trying to get a part number for.



[captainmilehigh]

That flat multi wire gray cable is in a set that is Part # 81. Not sure if you can buy it separately or not. Someone will probably chime in with the answer.

Part # 85 is the flat black ribbon cable that snakes around the roll motors on the camera. Be sure that hasn't been damaged or pinched somewhere. They are very fragile.



[shabba007]

Thanks. I ordered this. Does it look right ?

DJI Phantom 3 Part 42 Cable Set



[captainmilehigh]

Thanks. I ordered this. Does it look right ?

DJI Phantom 3 Part 42 Cable Set

Not sure. All the listings I see show it for the "pro" and "advanced". I don't see it saying Standard anywhere.

@msinger or @dirkclod --- could you help out here?



[shabba007]

Do you happen to know what the plastics plugs are called that hold the gimbal to the absorption board? I lost a couple of those in the crash also.
thanks.



[captainmilehigh]

Do you mean the white rubber vibration dampers.....part # 40?

May need the anti-drop pins for them. Part# 117



[captainmilehigh]

I double checked-- part # 42 will NOT fit the Standard. You need Part # 81.



[msinger]

Here are the correct replacement parts:

• Cable Pack
• Antenna

The cable pack will not be needed if you're able to reattach those wires to the connector on the end of the cable.



[shabba007]

Many thanks. I've now ordered part 81. The only other part I need are the plastic plugs that go through the rubber absorption rings on the gimbal mount. Don't know what they are called.



[captainmilehigh]

Many thanks. I've now ordered part 81. The only other part I need are the plastic plugs that go through the rubber absorption rings on the gimbal mount. Don't know what they are called.

Anti-drop pins - part # 117



[RodPad]

Many thanks. I've now ordered part 81. The only other part I need are the plastic plugs that go through the rubber absorption rings on the gimbal mount. Don't know what they are called.

You can also use small zip ties, leave them loose.

Rod



[FlyByVideoPros]

The standard cable pack is different. If you don't find them, we have them in stock.
OhioDroneRepair.com



[msinger]

The only other part I need are the plastic plugs that go through the rubber absorption rings on the gimbal mount. Don't know what they are called.

You can buy OEM anti-drops pins here on Amazon.
