Hello I bought a phantom 3. And I'm looking to try put the legs and 2.4 antennas from the adv/pro on the standard 3 .

I've tried looking at other phantom 3 standards to see if their similar ..

I thought the 2.4ghz recide in the phantom case ( little square blocks that sit inside the battery section )

Now on the legs. It has 3 wires

2 grey ... and 1 white .

I presume the white one is compass.

What's the 2 grey ? Also . Theres only 1 black wire going into the camera gimbal. Is this right ?

THANKS



ianzone

**P4**
Joined
May 22, 2016
Messages
6,842
Reaction score
4,578
Age
51
Location
NZ
Hello I bought a phantom 3. And I'm looking to try put the legs and 2.4 antennas from the adv/pro on the standard 3 .

I've tried looking at other phantom 3 standards to see if their similar ..

I thought the 2.4ghz recide in the phantom case ( little square blocks that sit inside the battery section )

Now on the legs. It has 3 wires

2 grey ... and 1 white .

I presume the white one is compass.

What's the 2 grey ? Also . Theres only 1 black wire going into the camera gimbal. Is this right ?

THANKS

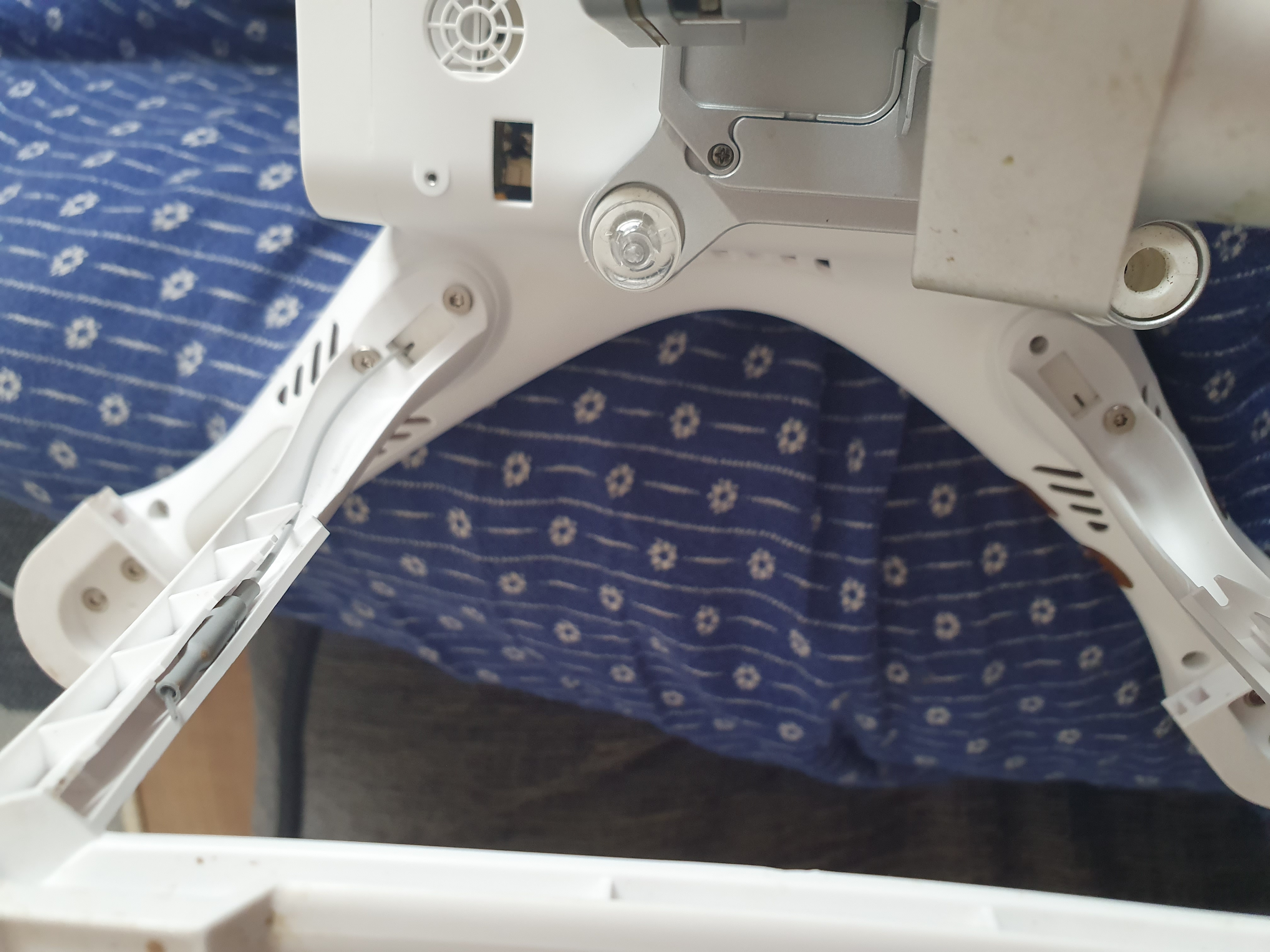

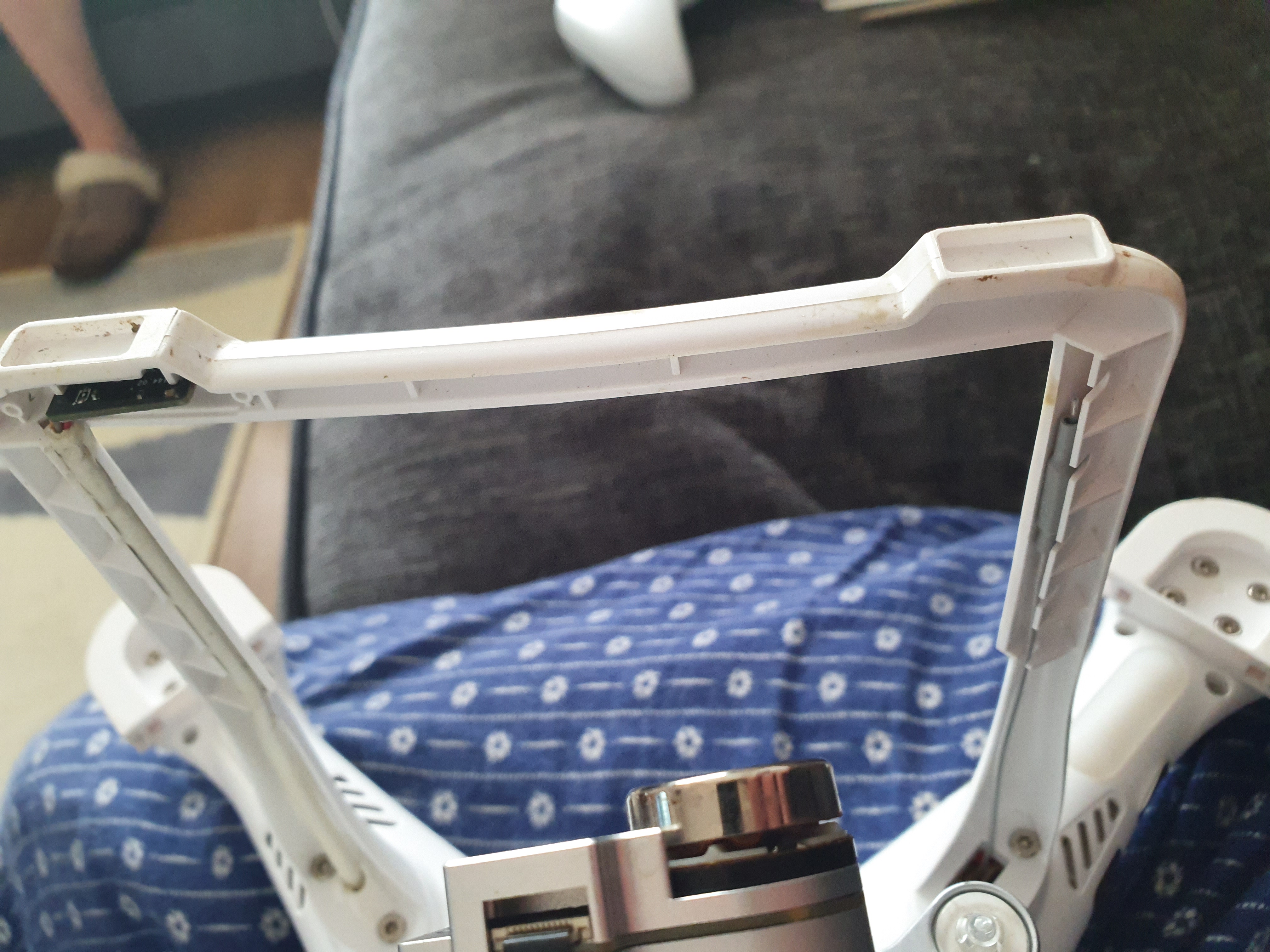

View attachment 117053 View attachment 117054
Yip I'm sure the grey is antenna, black wire going to right spot,white with box on bottom of leg is compass module,
