Air-frame - design ??

SelfBiased

the third dimension is worth a look
Premium Pilot
Joined
Aug 8, 2020
Messages
81
Reaction score
77
Location
MI
Trying to decide if this “issue” is machine error, or designed properly ?

Only found 1 internet comment that stated “motor not level” but I’m Leary about “leveling” if it’s proper quad design.

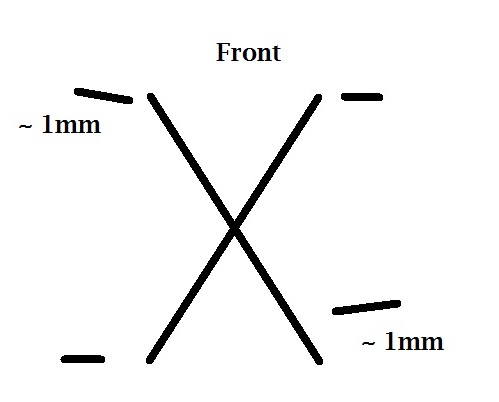

Hopefully my stick figure makes sense, the front left and back right “tilt” the motors in ~ 1+mm, the other two are flat level



Thanks for the help


Attachments

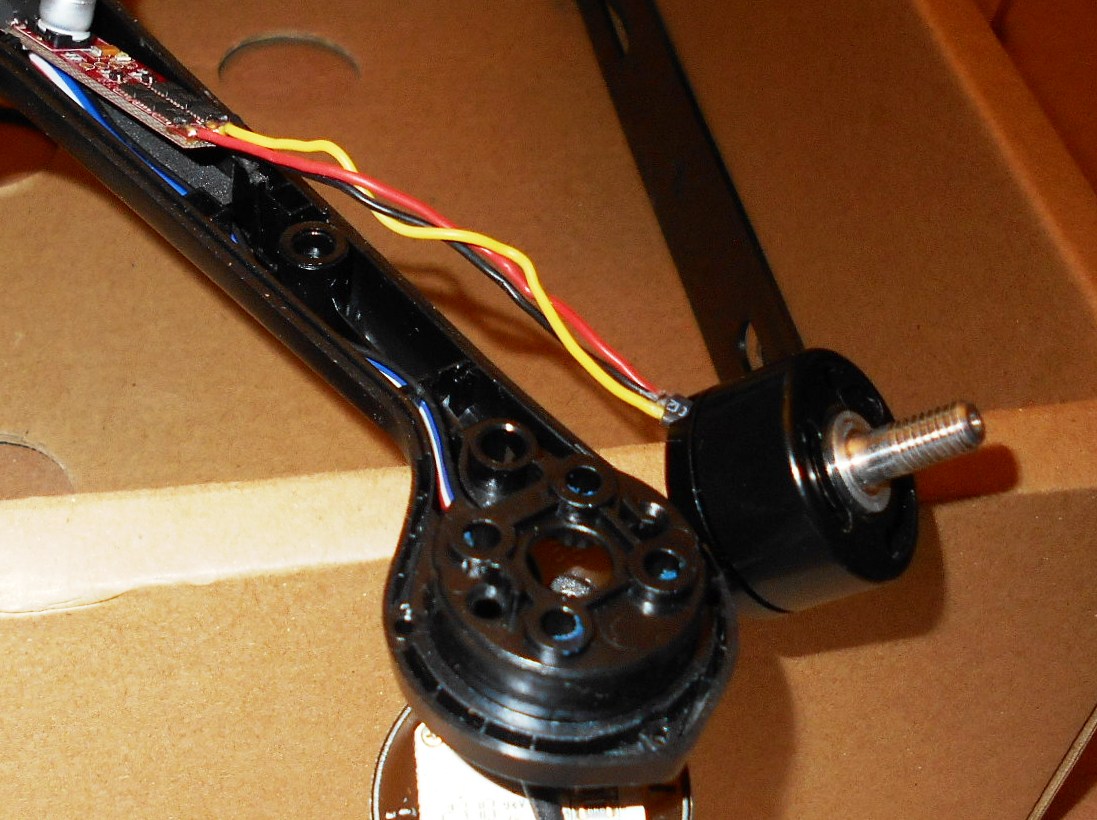

  • shim.JPG
    247.8 KB · Views: 85
  • stickfigure.jpg
    20.9 KB · Views: 87
Joined
May 1, 2017
Messages
3,543
Reaction score
2,852
Age
67
Location
N.central wv. U.S.
They are designed to have a tilt to the motors. It is hard for me to tell, but they all look to have a little tilt. I thought someone said it was to help eliminate getting into it's own prop wash in coming down..

  • Like
Reactions: dirkclod and Phill2
Joined
Dec 4, 2015
Messages
1,050
Reaction score
345
Age
66
Location
The Rock QLD Australia
They are designed to have a tilt to the motors. It is hard for me to tell, but they all look to have a little tilt. I thought someone said it was to help eliminate getting into it's own prop wash in coming down..

That's to stop the "vortex effect" that would otherwise crash it.


dirkclod

Moderator
Staff Member
Premium Pilot
Joined
May 9, 2014
Messages
15,454
Reaction score
9,343
Age
66
Location
Amory Mississippi
It is by design. There are threads here on it if you can find them by search.
