Main Board Ribbon Cable Connector

[williamyjk]

Does anyone know where to find a replacement 32 pin 0.5mm spacing flat ribbon cable connector on the Advanced remote controller main board (see attached picture)? I believe it is called a FPC connector.

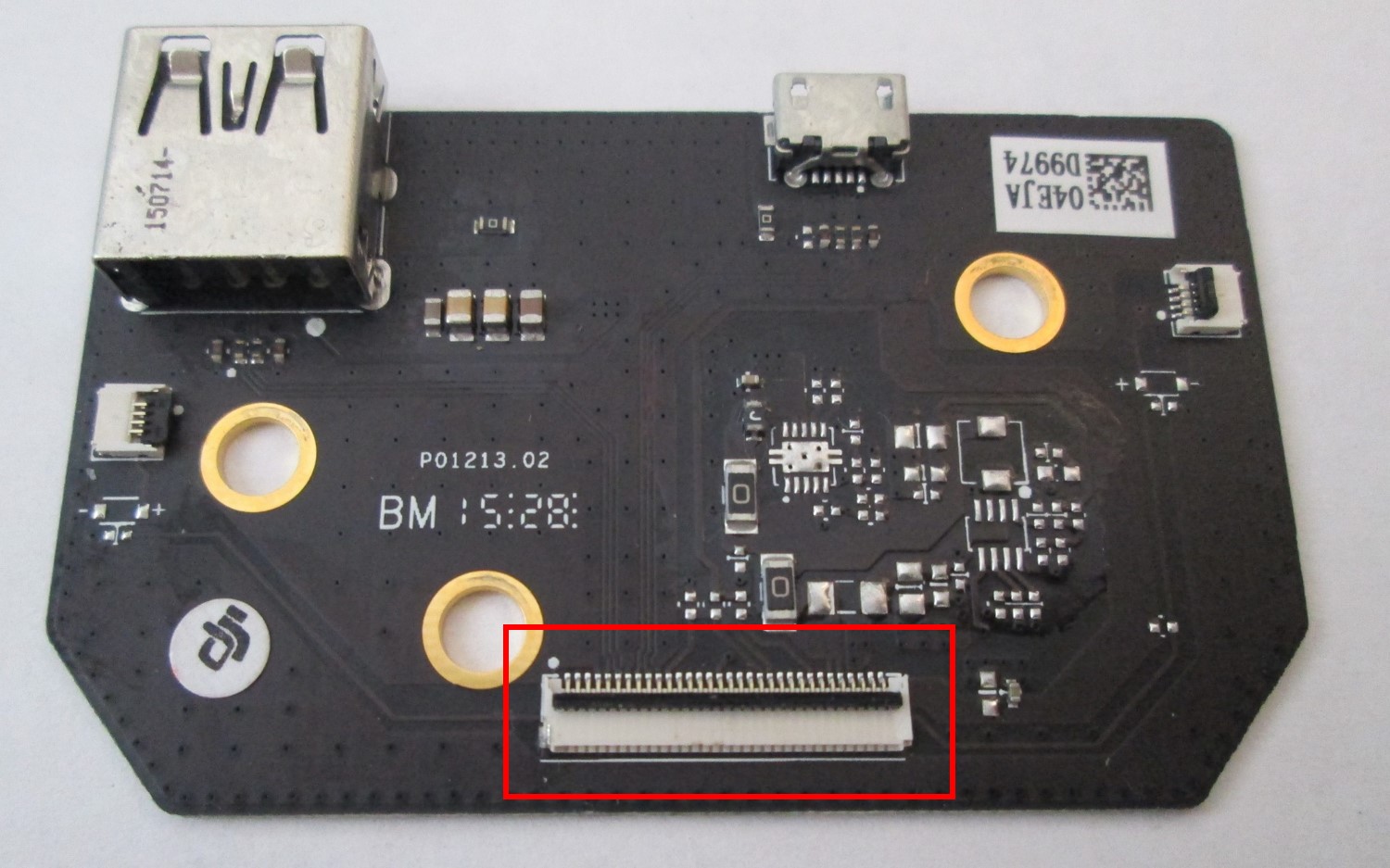

The picture is from the USB module, however, there is an identical connector on the remote's main board. The connector on my main board is damaged and no longer locks in the flat ribbon cable.

I ordered and tried a connector from Digikey:

XF2M-3215-1A Omron Electronics Inc-EMC Div | Connectors, Interconnects | DigiKey

The ribbon cable fits and locks in. However, the solder pads to secure the connector to the main board do not align with the ones on the connector.

Thank you for your help.



[williamyjk]

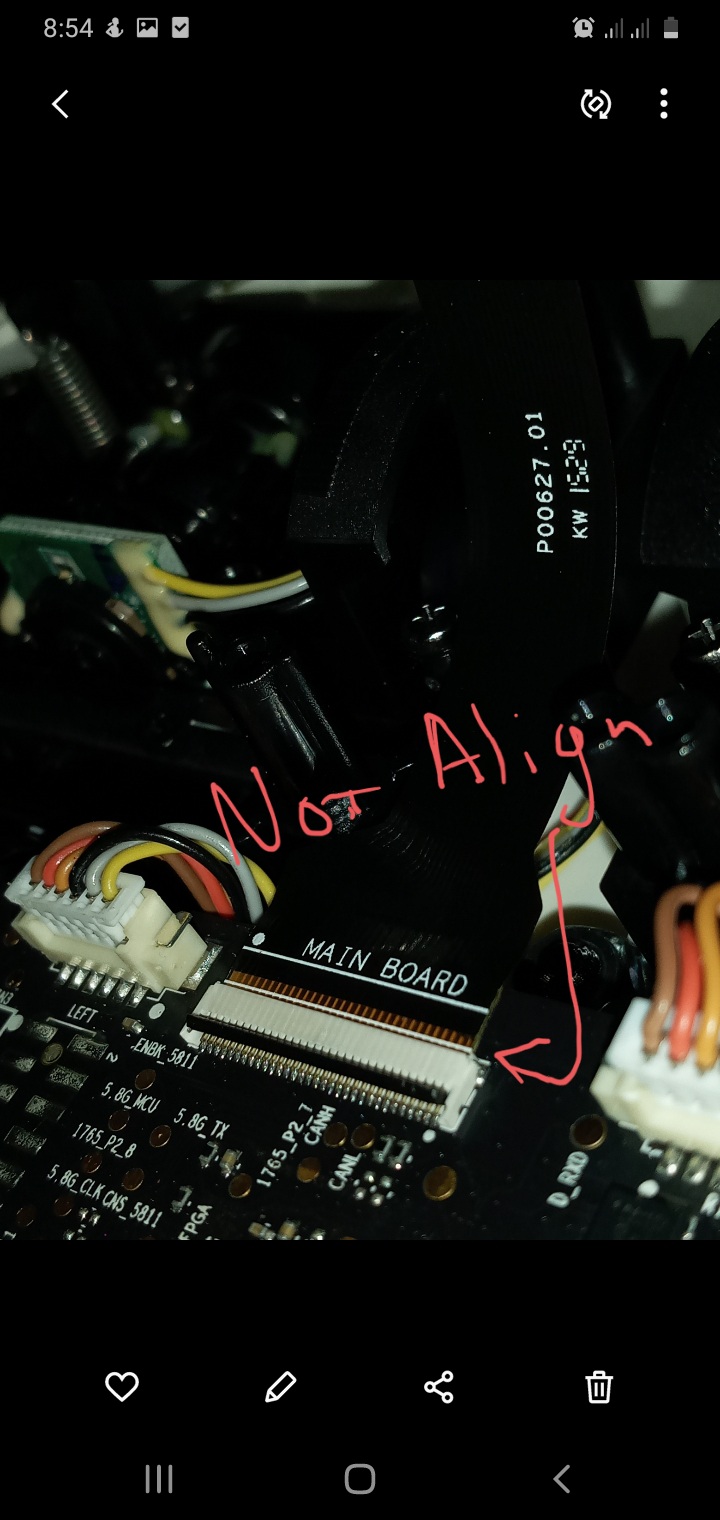

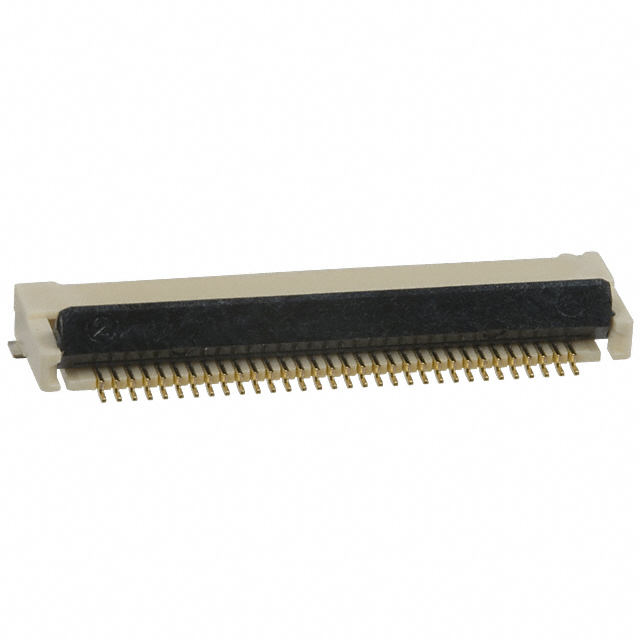

FPC Connector

• williamyjk
• Jul 8, 2018

XF2M-3215-1A

• williamyjk
• Jul 8, 2018



[lensmonkey]

I am trying to find the flat cable that fits this. Any Idea? thx!



[williamyjk]

Found one on ebay:

DJI Phantom 3/4 Controller Ribbon Cable P00627.01 Con To Main Board ORIGINAL | eBay



[chadat777]

William I am having the same problem, did you ever find a fix?

Does anyone know where to find a replacement 32 pin 0.5mm spacing flat ribbon cable connector on the Advanced remote controller main board (see attached picture)? I believe it is called a FPC connector.

The picture is from the USB module, however, there is an identical connector on the remote's main board. The connector on my main board is damaged and no longer locks in the flat ribbon cable.

I ordered and tried a connector from Digikey:

XF2M-3215-1A Omron Electronics Inc-EMC Div | Connectors, Interconnects | DigiKey

The ribbon cable fits and locks in. However, the solder pads to secure the connector to the main board do not align with the ones on the connector.

Thank you for your help.

William I am having the same problem... Did you find a fix?



[Saldivar Engineer]

Trying to revive the LiOn battery I had to unmount the controller and the ribbon cable came out from that FPC connector, now I can't put it all in.

Already tried pulling it with tape but nothing.

Could someone say if the fix it's to replace the ribbon cable or the connector?
