Sweet I hope your up and flying soon!!!!
Sent from my iPad using PhantomPilots mobile app
When checking cables , you can do a basic DC continuity test , ( without the cable connected and both ends free ). This will prove the continuity , U.fl , coax etc but make sure you disconnect them first . if you put a meter on them an have the end connected , then you actually introducing a voltage to the antenna receive input which is not good.
the best way is with a RF power meter ,connect to a known source like 20 mw of 2.4 transmitter a vtx will do for this , the with a RF power meter rated at that freq measure the power into a dummy load , this will show the cable loss as well , then change the cable to the one you want to test .
With RF amps there is a two way path , the transmit and receive path , the transmit path may me ok or not and the receive may be a problem , on the inverse maybe true , the rx is good and the RF amp is bad. So you have to prove both signal paths , once you prove all the cable are good you can then narrow it down . if you try to put a meter on the Antenna it will show hi resistance , this is RF not DC , you need a spectrum analyser to measure the return loss . However if there is a short when testing with a meter then there is a problem with the antenna ( panel type , not folded dipoles ) .
the simplest way to prove the cables in the RC is to put a pair of rubber duck antennas on the RC unit and fly out a few hundred meters . (we have dual band antennas for this ) .
- Joined
- Jan 3, 2016
- Messages
- 305
- Reaction score
- 46
- Age
- 34
Pro, since DB's a test pilot for Horizon, I'm sending him my Panel and my 5.8 amp. I tested yesterday with everything connected correctly. At about 1000ft, all of a sudden I'd get signal lost, even disconnected.
Like Will said, that amp might be bad out of the box. But even unboosted, I can't make it past 3000ft. I think there's an issue with the 5.8 panel and 5.8 amp, but DB will tell us for sure.
Nice! Do you need antennas to use while you get yours taking care of? Im sure i got something you can borrow in the meantime so you can fly! Let me know
sent from my POS Samsung Galaxy
sent from my POS Samsung Galaxy
- Joined
- Apr 14, 2015
- Messages
- 3,534
- Reaction score
- 2,041
- Age
- 46
I'm sending Beau my 19dB 5.8 panel. We'll get some answers
- Joined
- Apr 14, 2015
- Messages
- 3,534
- Reaction score
- 2,041
- Age
- 46
Just received BeauS's 17dB 5.8 extreme panel in the mail. My next few flights will be putting it through good flight paths w/ my p3S and his 5.8 gold amp. See what I produce because it was not producing well for him ( we both live in Iowa)

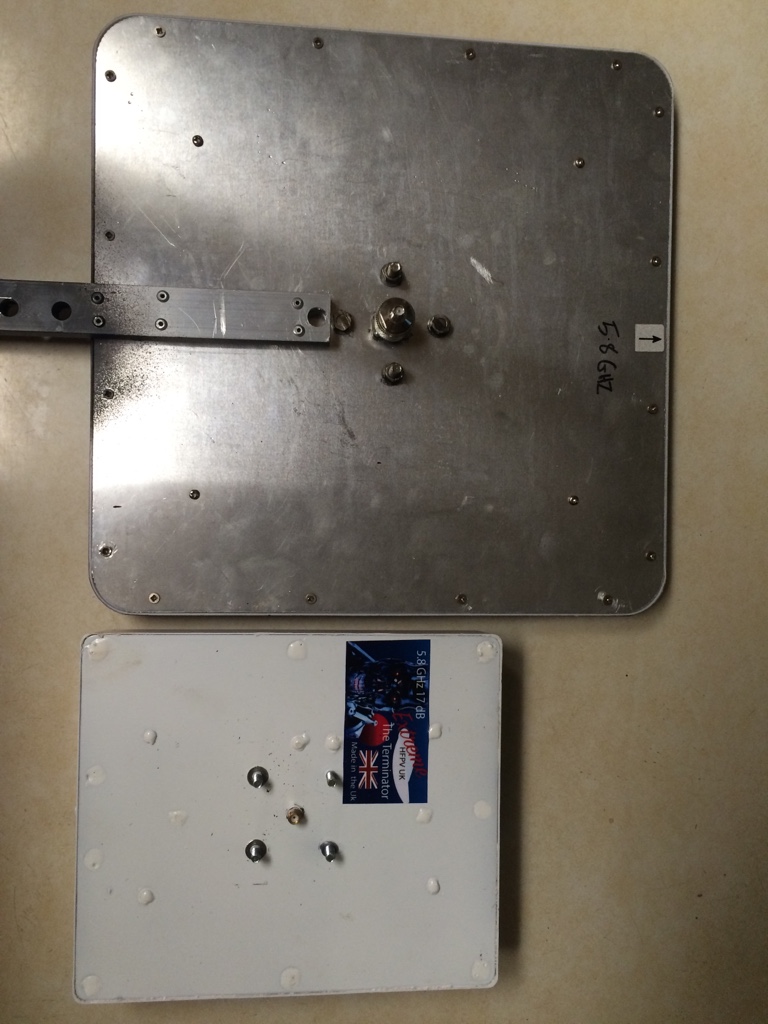

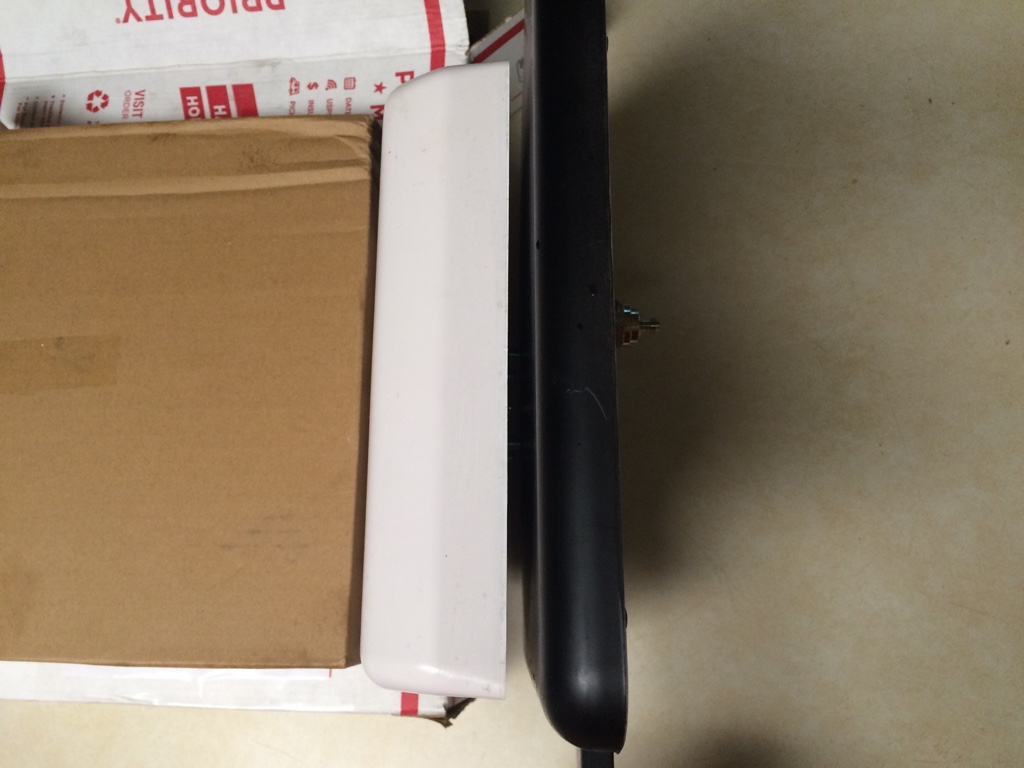

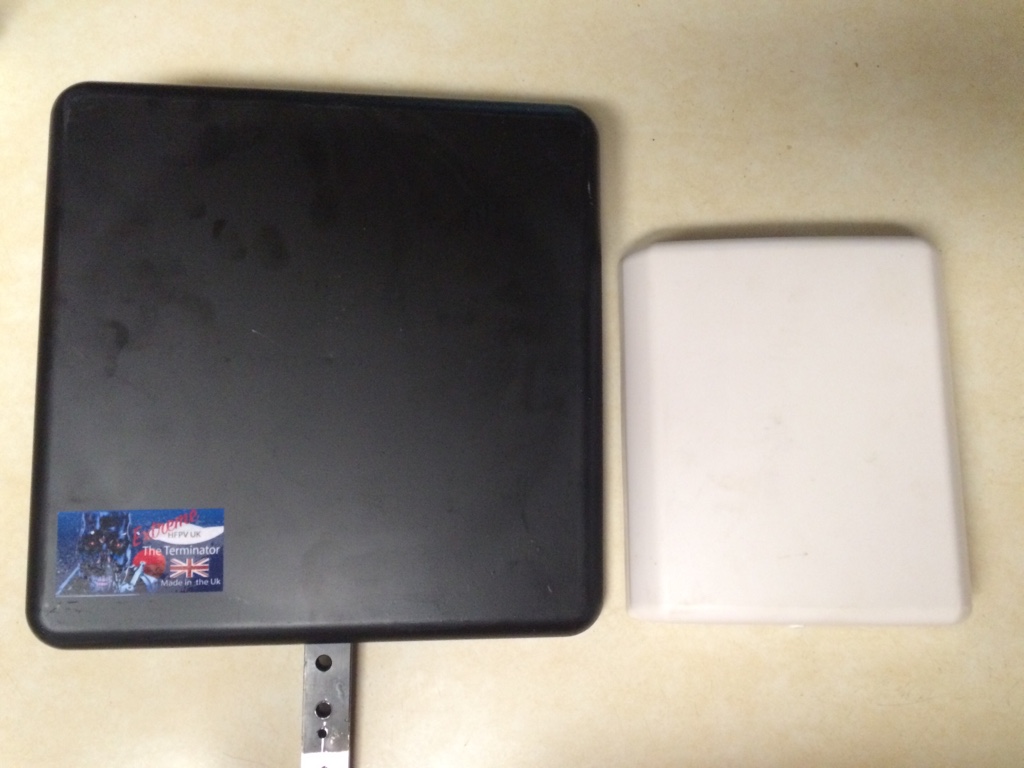

Heres some comparison pics of his white 17 dB panel vs my black 19dB panel
Big difference for 2dB's!! Makes me want to open Beau's panel!!
DONT WORRY I'm not going to BeauS! Stay tuned!
Heres some comparison pics of his white 17 dB panel vs my black 19dB panel
Big difference for 2dB's!! Makes me want to open Beau's panel!!
DONT WORRY I'm not going to BeauS! Stay tuned!
Nice! cant wait to see the results!! hopefully it was just a cable or amp issue. Is that 17dbi a stacked micro strip? that's how my 19dbi 5.8 is and is about that size
- Joined
- Jan 3, 2016
- Messages
- 305
- Reaction score
- 46
- Age
- 34
Wow, good to see you got it already! That's a huge difference in size for 2db, the 17 looks a lot thicker though!
Ok so this is the first I have heard about this type of range booster and that is pretty awesome!! My question, however, is how do you make the smart batteries last long enough to go that kind of range and back? My batteries last maybe 25 mins max. Is that long enough to go that distance and back or is there a way to get more flight time out of the batteries?
- Joined
- Apr 14, 2015
- Messages
- 3,534
- Reaction score
- 2,041
- Age
- 46
- Joined
- Jan 3, 2016
- Messages
- 305
- Reaction score
- 46
- Age
- 34
Hey angeloneemt- check out this thread. There are many of us who run dual batteries. The main DJI battery and an external. Dual Battery Mod
Hey Beau I may be wrong but I think yours is smaller because of genetics! lol just kidding. For reals tho I think DB's is a single and the one you have is stacked....again I may be wrong but that's how my Laird is...mine is 8" x 8" x 1-1/8".
- Joined
- Apr 14, 2015
- Messages
- 3,534
- Reaction score
- 2,041
- Age
- 46

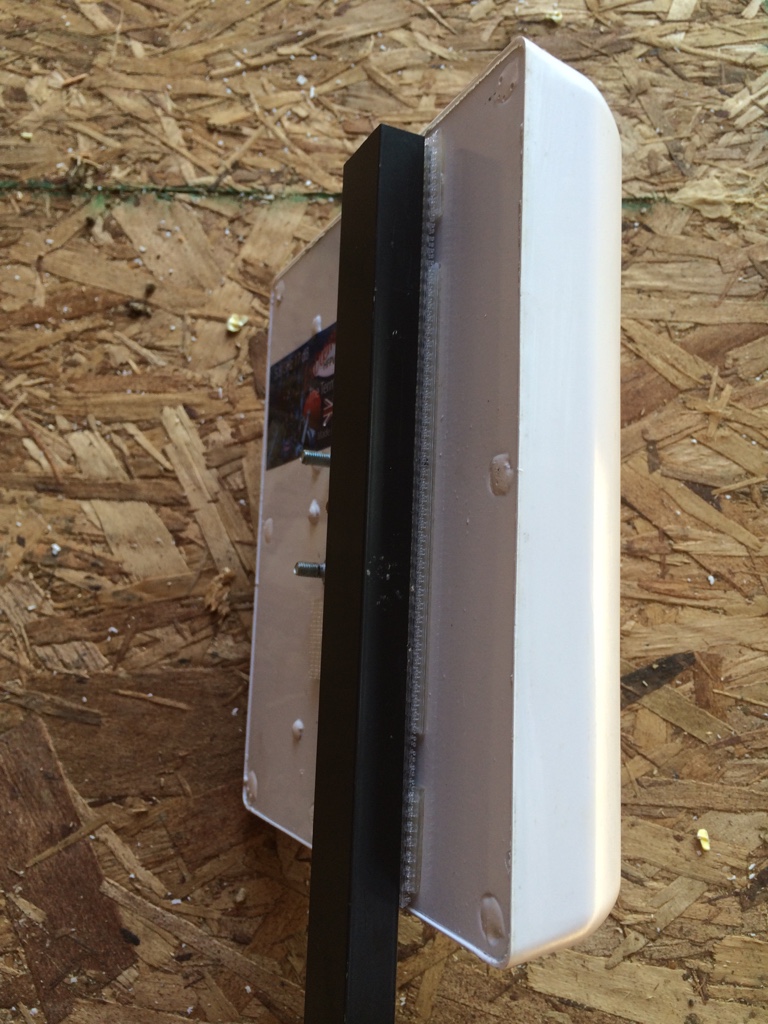

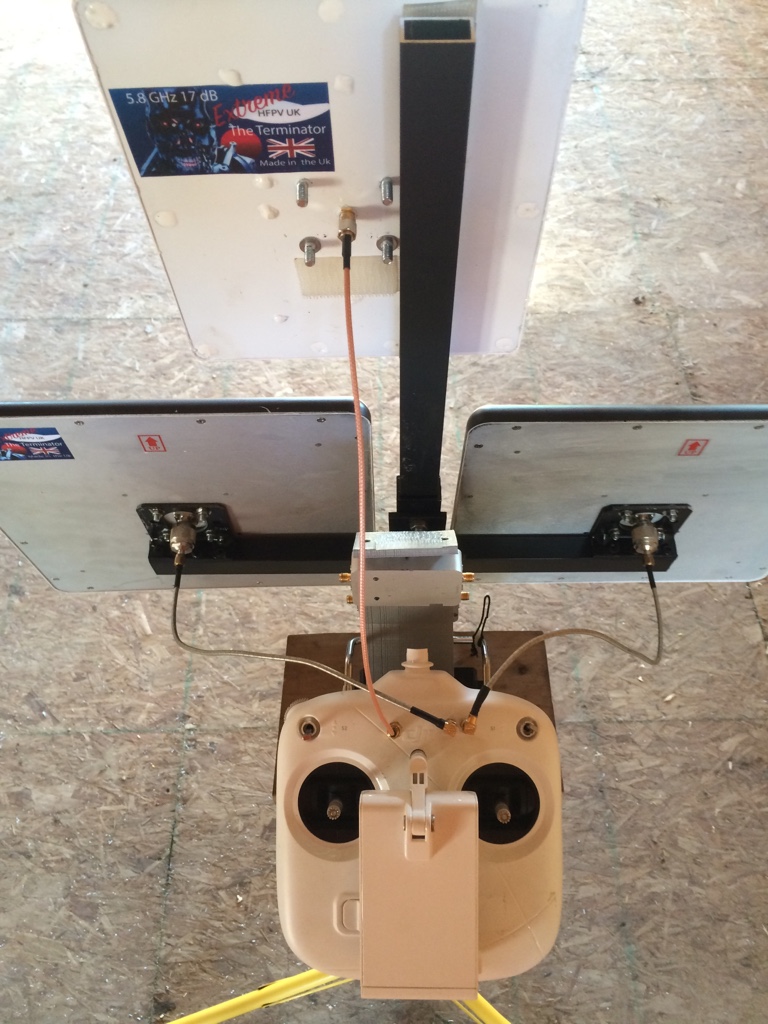

I didn't really have the right bracket to place Beaus's 17dB panel above my 19s , but I was anxious to try an unboosted set up, so I rigged it up this way and had to boost my 2.4 panels using the 3 foot cables.
Before even taking off I was getting no signal glitches on the app. Once I got out 500' The Wi-Fi preview was real glitchy and lagged. I think this was a result of having the 3 foot cables going from the antennas to the boosters, the way they was intended was The short cables from the antennas to the booster and then the long cable from the booster to the controller. I'm going to hit the hardware store for an aluminum stock bar and set it up the right way
Before even taking off I was getting no signal glitches on the app. Once I got out 500' The Wi-Fi preview was real glitchy and lagged. I think this was a result of having the 3 foot cables going from the antennas to the boosters, the way they was intended was The short cables from the antennas to the booster and then the long cable from the booster to the controller. I'm going to hit the hardware store for an aluminum stock bar and set it up the right way
- Joined
- Apr 14, 2015
- Messages
- 3,534
- Reaction score
- 2,041
- Age
- 46

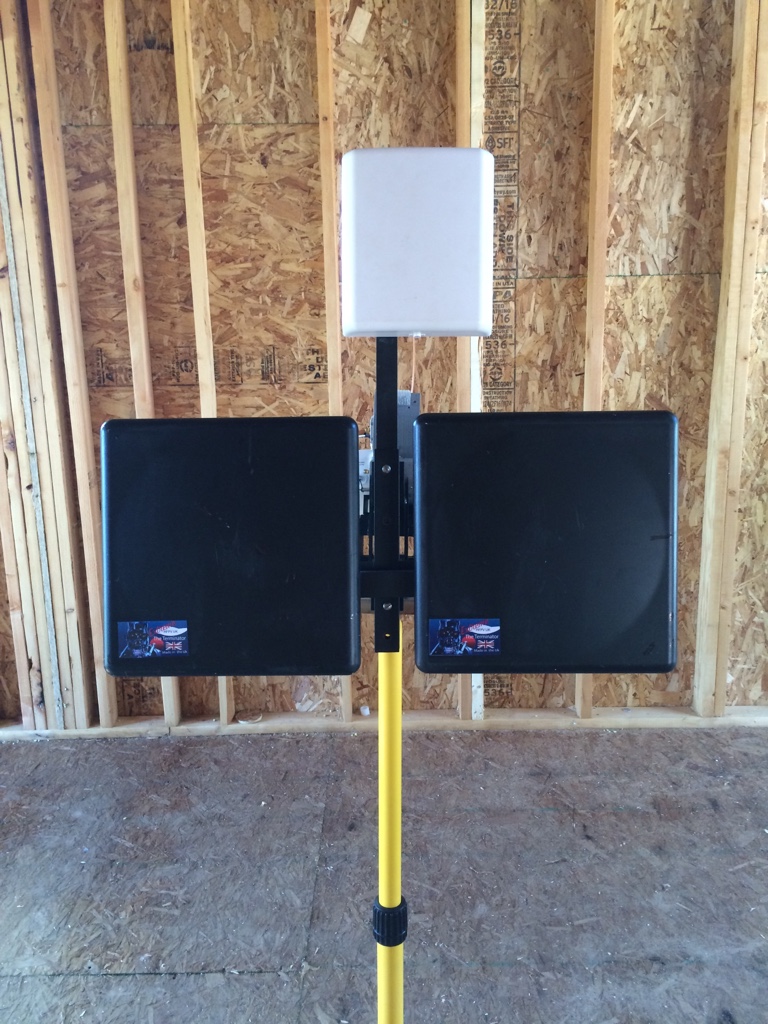

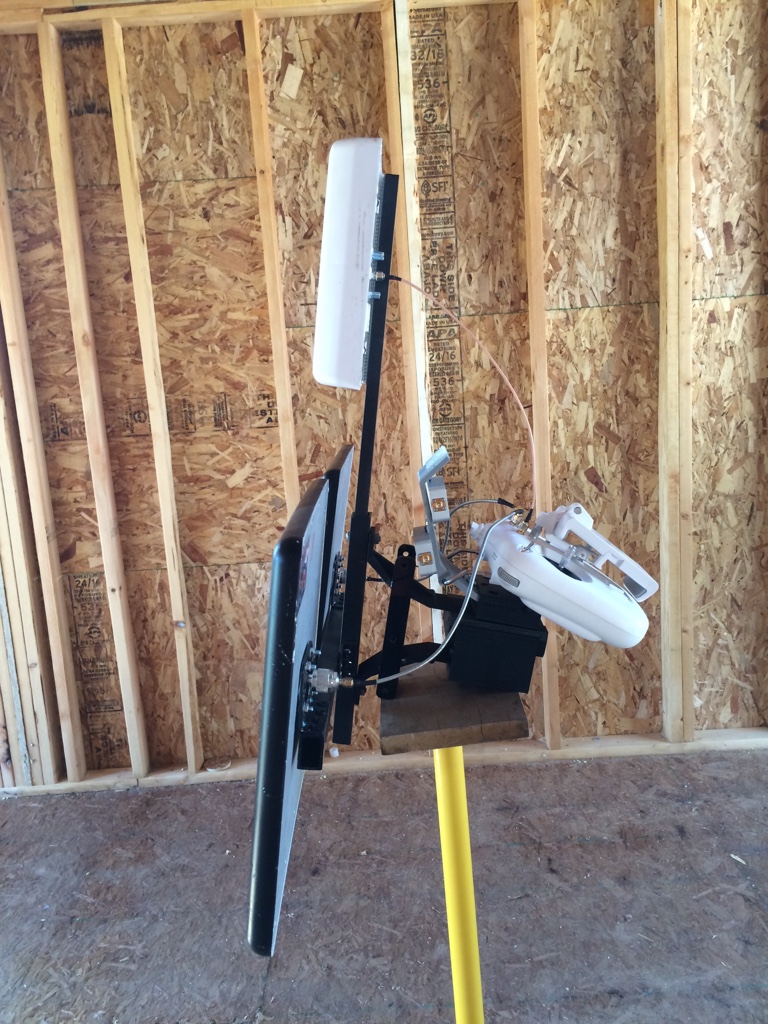

Here's the way I wanted to do it. But as you probably know BeauS, it feels like 115° and 95% humidity today, and I'm still working outside till 5:30. So I might not make the flight till morning
- Joined
- Jan 3, 2016
- Messages
- 305
- Reaction score
- 46
- Age
- 34
Oh man it's hot, hopefully it's a little cooler tomorrow morning but I think it will be even hotter tomorrow. Anyway, you got some skills DB, that setup looks sweet, tough as nails!
- Joined
- Apr 14, 2015
- Messages
- 3,534
- Reaction score
- 2,041
- Age
- 46
Part 1. Extreme 17dB vs 19dB UNBOOSTED
This panel had a strong signal out to about 3000 feet and then bars started getting weaker till I lost signal about 8000 feet, was able to regain control and go to 9000 feet, where I lost signal and when regain control could not get past 9000 feet
HealthyDrones.com - Innovative flight data analysis that matters
Good signal out to a mile then bars dipped slightly, around 9000 feet(in the same spot the 17dB was having its most trouble) I start getting weak signal message, I lost control at 12,000 feet, but was able to regain it turn around and fight through it, I chose to turn around at 17,000 feet 60% battery to play it safe in this high wind.
HealthyDrones.com - Innovative flight data analysis that matters
This panel had a strong signal out to about 3000 feet and then bars started getting weaker till I lost signal about 8000 feet, was able to regain control and go to 9000 feet, where I lost signal and when regain control could not get past 9000 feet
HealthyDrones.com - Innovative flight data analysis that matters
Good signal out to a mile then bars dipped slightly, around 9000 feet(in the same spot the 17dB was having its most trouble) I start getting weak signal message, I lost control at 12,000 feet, but was able to regain it turn around and fight through it, I chose to turn around at 17,000 feet 60% battery to play it safe in this high wind.
