Frequencies used by Phantoms

DoomMeister

Moderator
Staff Member
Premium Pilot
Joined
Mar 5, 2019
Messages
171
Reaction score
205
Age
63
Location
Florida’s Friendliest Hometown
I have a question about the RC and WiFi frequencies used by the Phantoms.

Am I correct that the RC Control is a 2.4GHz signal and the WiFi for video feed is 5.8GHz?

I have a member in another forum using an Itelite range extending antenna designed for use on a Phantom with another manufacturer’s controller. I suspect that is causing his video feed problems.

Thanks for your help.

Joined
Nov 2, 2013
Messages
503
Reaction score
95
Location
Olympic Peninsula USA
I have a question about the RC and WiFi frequencies used by the Phantoms.

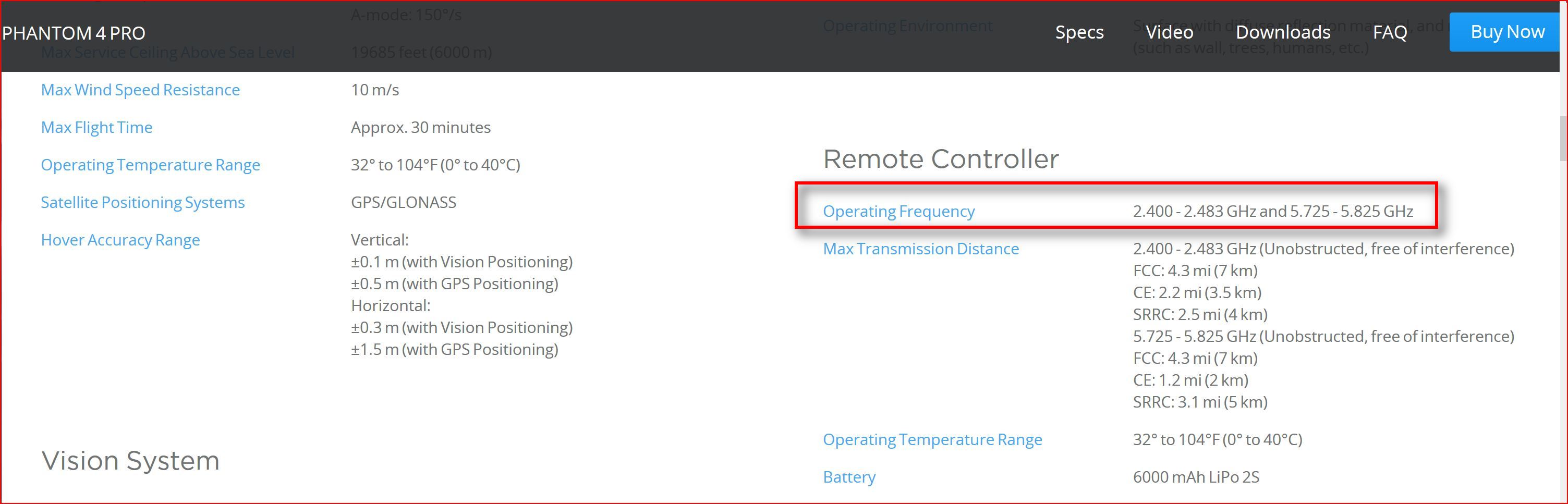

You can find frequencies used by the different models in the specs for the particular model.

Look for "Operating Frequency"


  • Like
Reactions: ianzone

ianzone

**P4**
Joined
May 22, 2016
Messages
6,901
Reaction score
4,659
Age
51
Location
NZ
P3s is 5.8 and 2.4 ....5.8 transmission and 2.4 signal ,,,p4s is 2.4 for both signals
P34k is 5.725 to 5.825ghz

Last edited:

DoomMeister

Moderator
Staff Member
Premium Pilot
Joined
Mar 5, 2019
Messages
171
Reaction score
205
Age
63
Location
Florida’s Friendliest Hometown
Thanks guys. Appreciate the help.

I’m pretty sure from your response and further research on the web that he has mismatched antennas. Think he was trying to save money using the same range extender and hope he didn’t mess up the transmitter.

  • Like
Reactions: ianzone
Joined
Aug 3, 2017
Messages
23
Reaction score
20
Age
71
I have been flying for over two years and have never NOT been warned about the 2.4 cellphone frequency interfering. I ignore it, never had a real problem keeping in control.

  • Like
Reactions: ianzone
Joined
Feb 3, 2018
Messages
857
Reaction score
655
Age
57
Location
Albuquerque, New Mexico
I have a question about the RC and WiFi frequencies used by the Phantoms.

Am I correct that the RC Control is a 2.4GHz signal and the WiFi for video feed is 5.8GHz?

I have a member in another forum using an Itelite range extending antenna designed for use on a Phantom with another manufacturer’s controller. I suspect that is causing his video feed problems.

Thanks for your help.

DJI nomenclature is vague in this regard, citing only "Operating Frequencies." Well...okay....what is controlling what and on which frequency??? Here's what I've gathered from my years of experience:

1) Control is always 2.4Ghz across all platforms.
2) Video feed can be either 2.4Ghz or 5.8Ghz for drones that offer that option. In lieu of that option, video feed is 2.4Ghz.
3) Telemetry comes down on the same frequency as video feed (but that's speculation).
4) For dual controllers, they talk to one another via a BlueToothish 2.4Ghz protocol, but receive video and telemetry data directly from the bird. The secondary controller operates the camera through the primary controller. In "Auto" mode (which I hate and should be avoided like the plague), the main controller does the channel switching, and then sends those commands to the secondary controller. There seems to be some channel switching latency, which can wreak havoc with video feeds. So I never, ever use "auto" mode.

It would be nice if DJI published technical data, but they don't. It would also be nice if they were forthcoming and comprehensive with their firmware/software release notes, but they aren't. So we're basically stuck figuring this stuff out on our own. Thanx for nothing, DJI!

D

  • Like
Reactions: ianzone
Joined
Mar 2, 2021
Messages
2
Reaction score
0
Age
52
DJI nomenclature is vague in this regard, citing only "Operating Frequencies." Well...okay....what is controlling what and on which frequency??? Here's what I've gathered from my years of experience:

1) Control is always 2.4Ghz across all platforms.
2) Video feed can be either 2.4Ghz or 5.8Ghz for drones that offer that option. In lieu of that option, video feed is 2.4Ghz.
3) Telemetry comes down on the same frequency as video feed (but that's speculation).
4) For dual controllers, they talk to one another via a BlueToothish 2.4Ghz protocol, but receive video and telemetry data directly from the bird. The secondary controller operates the camera through the primary controller. In "Auto" mode (which I hate and should be avoided like the plague), the main controller does the channel switching, and then sends those commands to the secondary controller. There seems to be some channel switching latency, which can wreak havoc with video feeds. So I never, ever use "auto" mode.
I am looking at my first drone to buy. It will likely be a second-hand Phantom 4.

Phantom 4 Advanced does not have both 2.4GHz or 5.8GHz as an RC Operating Frequency, only 2.4GHz. What am I compromising if I don't have 5.8GHz available?
I am in Australia, where both frequencies are allowed.

Joined
Feb 3, 2018
Messages
857
Reaction score
655
Age
57
Location
Albuquerque, New Mexico
I am looking at my first drone to buy. It will likely be a second-hand Phantom 4.

Phantom 4 Advanced does not have both 2.4GHz or 5.8GHz as an RC Operating Frequency, only 2.4GHz. What am I compromising if I don't have 5.8GHz available?
I am in Australia, where both frequencies are allowed.
I'm the wrong guy to ask because I utilize the 32-channel hack on all my drones. So I can always find an open channel on the 2.4Ghz network. But for those of you limited to 8 channels, your drone can benefit from 5Ghz in "WiFi saturated" areas.

If I'm going longer distance, I always use 2.4Ghz. If there are more objects like buildings and trees, and I'm not flying that far way, I sometimes use 5Ghz. But remember, control is always 2.4Ghz. 5Ghz is just for video feed and telemetry (I believe).

D
