My very first drone was a Syma X8G way back in the summer of 2016. Shortly after I got it, I bought a cheap 2-axis gimbal and mounted my action cam to it. My avatar has a picture of it flying. I powered the gimbal by drawing power from the main battery connector so that I wouldn't have to modify each battery. It worked surprisingly well - the camera stayed level and the recorded video was smooth. I had to be careful especially when descending as the wait of the gimbal and the camera would make the rig come down rather fast. I got used to it and was able to descend and land most times. Had a few hard landings though. After a hard landing/crash the gimbal got messed up and I had trouble with the roll and could never get it to stabilize. I got tired of tinkering and did not want to put any more money into it so I purchased my first DJI drone - a P3S.

That brings me to now. Just for fun, I want to see if I can get my 2-axis gimbal working again and flying on my X8G. The X8G still flies perfectly. I know I can use my P3S or Spark and get way better results but I want to see if I can get this working again.

Here is a link to a Utube video showing the drone, two axis gimbal, and action cam AND the problem I am having with the roll axis.

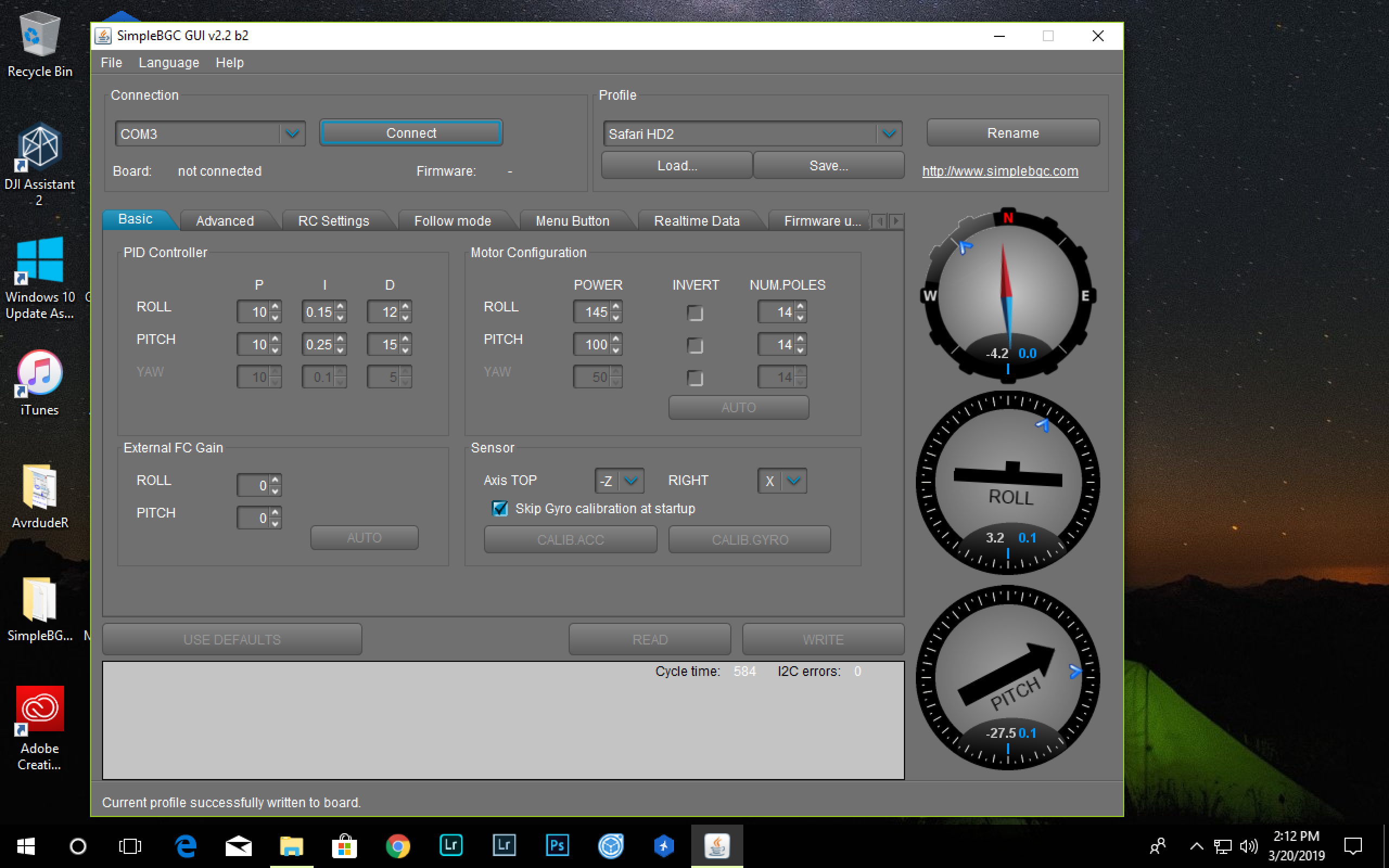

Here is a screen shot of my current configuration in SimpleBGC.

Screen Shot 2019-03-20 at 2.12.58 PM.png


I have tried numerous configurations (from increasing/decreasing motor power configuration, and playing with various PID values). I am not sure what the individual PID values do but I tinkered around with them anyway. The default configuration is not working.

Anyone have any ideas on what to do or try to get it working?

Note, I do not want to purchase a new 2-Axis gimbal if I cannot get this working as its not worth it.

Chris

Joined
Oct 31, 2014
Messages
1,962
Reaction score
333
Age
49
Location
Manchester UK
My very first drone was a Syma X8G way back in the summer of 2016. Shortly after I got it, I bought a cheap 2-axis gimbal and mounted my action cam to it. My avatar has a picture of it flying. I powered the gimbal by drawing power from the main battery connector so that I wouldn't have to modify each battery. It worked surprisingly well - the camera stayed level and the recorded video was smooth. I had to be careful especially when descending as the wait of the gimbal and the camera would make the rig come down rather fast. I got used to it and was able to descend and land most times. Had a few hard landings though. After a hard landing/crash the gimbal got messed up and I had trouble with the roll and could never get it to stabilize. I got tired of tinkering and did not want to put any more money into it so I purchased my first DJI drone - a P3S.

That brings me to now. Just for fun, I want to see if I can get my 2-axis gimbal working again and flying on my X8G. The X8G still flies perfectly. I know I can use my P3S or Spark and get way better results but I want to see if I can get this working again.

Here is a link to a Utube video showing the drone, two axis gimbal, and action cam AND the problem I am having with the roll axis.


Here is a screen shot of my current configuration in SimpleBGC.

View attachment 109784

I have tried numerous configurations (from increasing/decreasing motor power configuration, and playing with various PID values). I am not sure what the individual PID values do but I tinkered around with them anyway. The default configuration is not working.

Anyone have any ideas on what to do or try to get it working?

Note, I do not want to purchase a new 2-Axis gimbal if I cannot get this working as its not worth it.

Chris
May be able to dig out some old info on these gimbals, by the looks of it the board isn’t seeing the IMU properly and it’s jamming the motors in hold position, the IMU cables were very flaky and broke easy.
