Phantom 4 RTK off centered camera

Joined
Jan 16, 2019
Messages
36
Reaction score
11
Age
45
Location
South Dakota
Hello, I just received a P4P RTK that I am using for work. When I took it out of the box and fired it up I noticed the camera was pointing to the side. I have a P4PV2 and that had the same issue after several flights. On that one I was able to go into the gimbal settings and adjust the camera position. On the RTK there is no option to do that. I am not sure if it is a crystal sky thing but that seems really weird. My question is if the camera is pointed slightly to the side is that going to cause any error in my photogrammetry? Is it telling itself it is pointing to A and it is actually pointing to B? And does anybody have a work flow for post processing? I use Pix4D. Do I dump files from the DRTK and the aircraft as well as the pictures? Thanks for any help.

Joined
Dec 25, 2016
Messages
1,892
Reaction score
1,146
Location
Tucson, Arizona
For what that hardware costs, it should be perfect right out of the box.
If it‘s a new unit, I would be putting it back in the box and sending it back where it came from.
If not new, sorry, I’m not sure what steps you should take.
Certainly you could refresh the firmware and see if that may help.
Possibly a camera gimbal calibration?
Hope you get it solved.

  • Like
Reactions: Capt KO
Joined
Mar 9, 2020
Messages
136
Reaction score
43
Age
70
Have you tried calibrating the gimbal while sitting on it's back two legs instead of sitting flat?

Joined
Mar 9, 2020
Messages
136
Reaction score
43
Age
70

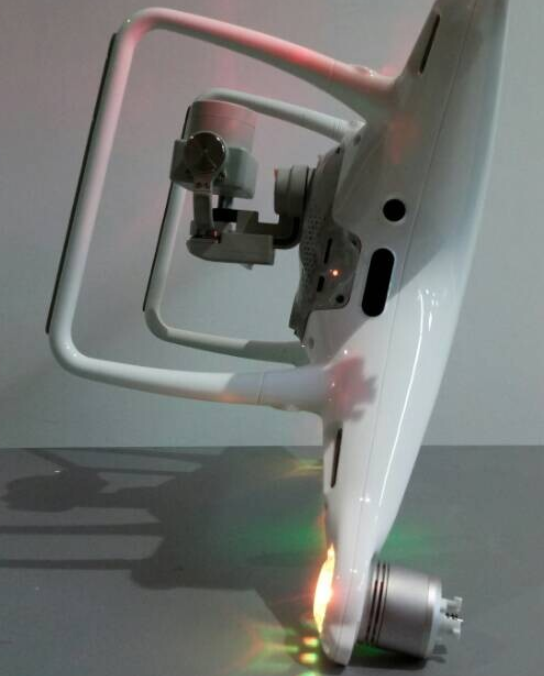

Run the gimbal calibration with the bird in this position, it actually works. If it doesn't, I would also fear that the photogrammetry could be skewed.

Joined
Apr 4, 2019
Messages
44
Reaction score
23
Age
66
Do your surveys with GCPs even with RTK on the drone. RTK on the drone is helpful but it can’t correct for distortions in the ortho photo and point cloud caused by unavoidable lens distortion, camera misalignments in all directions, camera shake, and any number of other issues. All instruments are imperfect. Only known points on the ground (GCPs) provide a means of correcting what the drone was able to see and record vs. the real world it was recording,

I don’t have an P4 with RTK but the photo coordinates on such systems are typically embedded in the metadata of the photos,. Nor do I use Pix4D, but I assume your workflow would not include uploading the flight records from the drone.

Joined
Mar 25, 2021
Messages
8
Reaction score
0
Age
71
Hello, I just received a P4P RTK that I am using for work. When I took it out of the box and fired it up I noticed the camera was pointing to the side. I have a P4PV2 and that had the same issue after several flights. On that one I was able to go into the gimbal settings and adjust the camera position. On the RTK there is no option to do that. I am not sure if it is a crystal sky thing but that seems really weird. My question is if the camera is pointed slightly to the side is that going to cause any error in my photogrammetry? Is it telling itself it is pointing to A and it is actually pointing to B? And does anybody have a work flow for post processing? I use Pix4D. Do I dump files from the DRTK and the aircraft as well as the pictures? Thanks for any help.
The camera that came with the drone is all adjusted. Do not change the camera that came with the rtk
