How to wire P2 with FPV no IOSD mini

Joined
Jun 2, 2019
Messages
27
Reaction score
2
The components I have are listed below. I am trying to get FPV to work with my P2 v2.0. I do not have a dedicated fpv monitor; therefore, I am using my SmartTv. I also do not have a dedicated battery and would prefer to connect the AVL58 RX to the wall 110v. I need a 110v to 12v convertor and I thought to use a laptop charger. I do not have the iosd mini or mark ll devices.

avl58 rx
avl58 tx lite
runcam3 tv out cable
lcd tv
phantom 2 v2.0
fpv hub and cables

Thanks

Last edited:
Joined
Jun 2, 2019
Messages
27
Reaction score
2

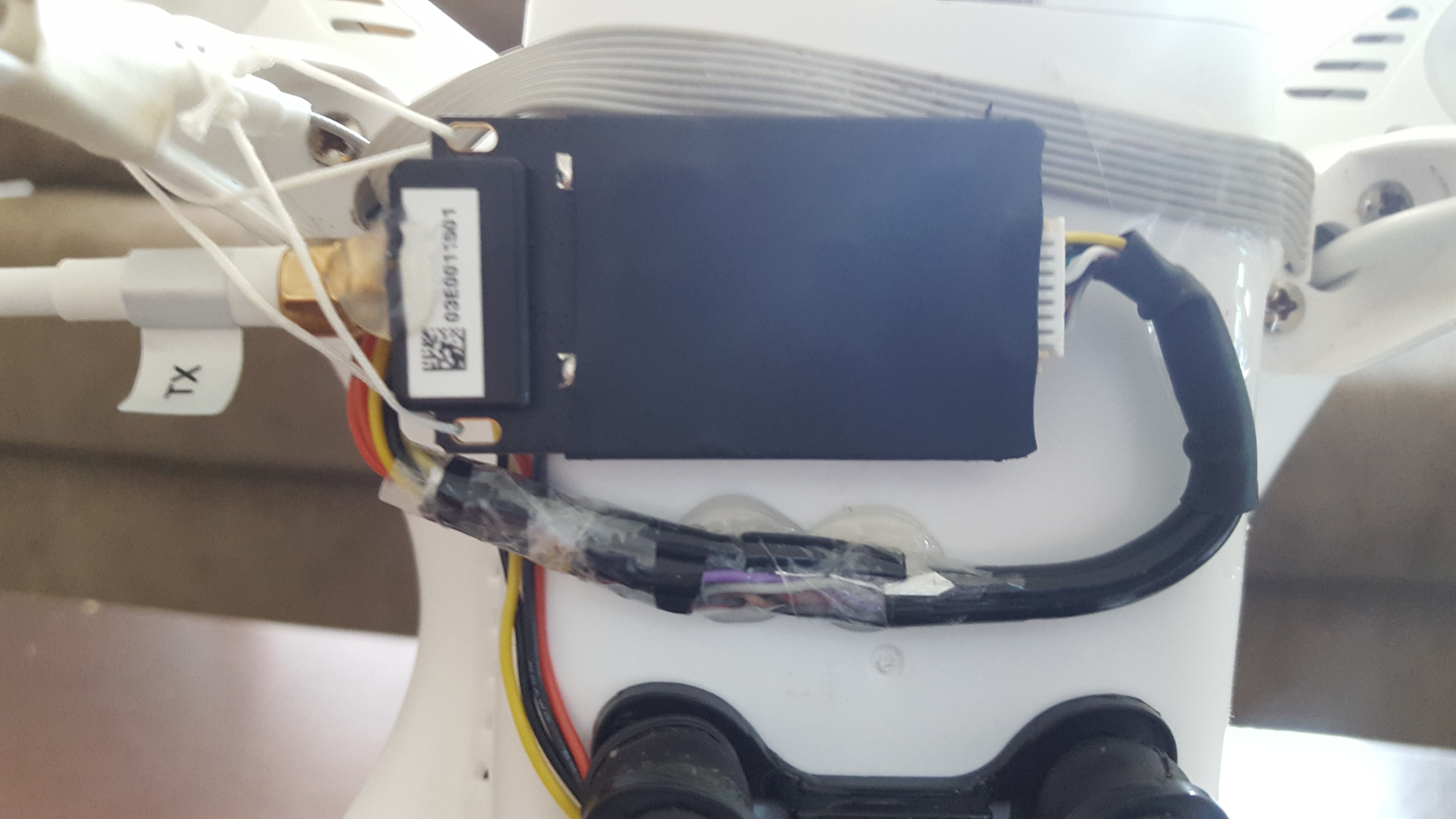

So far, I was able to wire the following as described in the picture attached. I guess I do not need the FPV hub and cables because I do not have the gimbal and iosd mini device. The RX is already connected to the LCD tv but without power because the laptop charger I have outputs 19v and not 12v.

From the camera manual, "RunCam 3's micro USB port requires a DC 5-17V power source. It is recommended to use a mobile phone charger (output 5V 1A) to charge the battery.", right now my multimeter says 12v power source, and from what I believe the AVL58 TX will also receive the power from the same cable. I guess I am ok with this setup.

I am not sure about the wiring to the AVL58 TX Lite.


Attachments

Joined
Jun 2, 2019
Messages
27
Reaction score
2
Update:

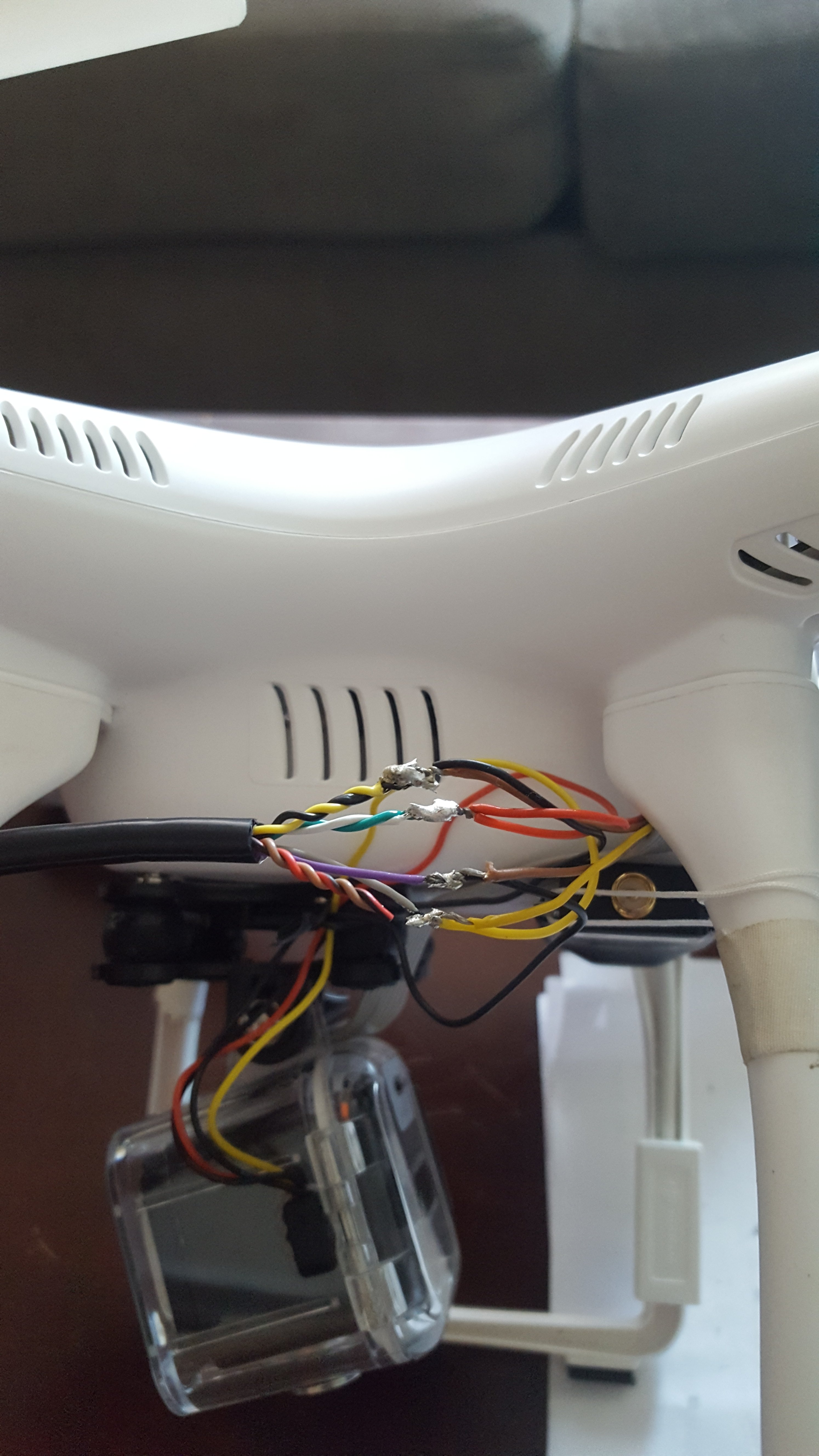

I was able to solder the AVL58 Lite tx to the runcam3 and P2 successfully following @thelostsurfer information.


To bad the WiFi module in the runcam3 camera is dead, I am unable to change camera settings and the settings are lost each time the camera is turned off. I always have to flip the image through the camera settings first. I leave this information here, perhaps something else will come along and find this information useful.

Cheers


Attachments

Last edited:
