Phantom 3 Gimbal Clamp with Lens Cap

Joined
May 8, 2015
Messages
6
Reaction score
0
Age
39
Location
Ankara, Turkey
Hi Guys :)

I present my latest design 3D Printed 'Phantom 3 Gimbal Clamp with Lens Cap'

The most important difference is there are no any loads on vibration dampers. It increase damper life through stability. You don't need to use original plastic case.

You can attach your Propeller Wrench on it.

Good news for US Pilots! My design on sale in NJ,US:

http://fpvline.com/store/multicopter-accessories/282-dji-phantom-3-gimbal-clamp-with-lens-cap.html

http://www.drone-works.com/gimbal-lock-lens-protector-phantom-3/

Or, You can still buy fro Shapeways without RBF tags:

https://www.shapeways.com/product/386HV2F92/phantom-3-gimbal-clamp-with-lens-cap

PLEASE WATCH VIDEO:
(Introducing-Assembling-Disassembling)


Note: 'Remove Before Flight' tag is not included on Shapeways.

Last edited:
Joined
Jan 29, 2015
Messages
4,851
Reaction score
2,068
Location
Salt Lake City, UT
Only thing I don't like about this design is that it appears that the camera can still rotate while the lock is in place. Watch at 1:16. Perhaps this is only because the lock is loose on the lens of the camera.

Joined
May 8, 2015
Messages
6
Reaction score
0
Age
39
Location
Ankara, Turkey
Only thing I don't like about this design is that it appears that the camera can still rotate while the lock is in place. Watch at 1:16. Perhaps this is only because the lock is loose on the lens of the camera.
Now, there is no any movements.If I get tight, camera material can be stratch...


jlo

Joined
May 17, 2015
Messages
479
Reaction score
216
Location
FL
I like this idea. I wanted a way to lock the gimbal plates to prevent them from shifting/sagging, during travel when in a backpack and the bird is vertical.

How about a design, for people that already have a lens cap, that just stabilizes the two gimbal plates? ;)

  • Like
Reactions: Emre
Joined
Mar 17, 2014
Messages
853
Reaction score
469
Location
Big Bear, CA
Joined
Mar 17, 2014
Messages
853
Reaction score
469
Location
Big Bear, CA
Some times the Ninjaflex has a mind of it's own and does not want to feed.
Feeds like a champ in my M2, but I do need to run it about 250-255 ;-)

Joined
Mar 13, 2014
Messages
366
Reaction score
149
Location
Southern California
I also made something similar to Milehighdesign in Ninja semi flex, very simple and easy only takes about 20 min to print...I feed Ninja Semiflex at 245C and works great...

Joined
Aug 15, 2014
Messages
453
Reaction score
63
Location
Glen Burnie, MD
Anyone have good STLs for things like these? I have my own printer, just not enough design skills. A couple of the ones I downloaded from Thingaverse weren't very good quality (one didn't even render as a complete object, despite the preview)

Last edited:
Joined
Oct 20, 2014
Messages
498
Reaction score
238
Location
Alberta, Canada

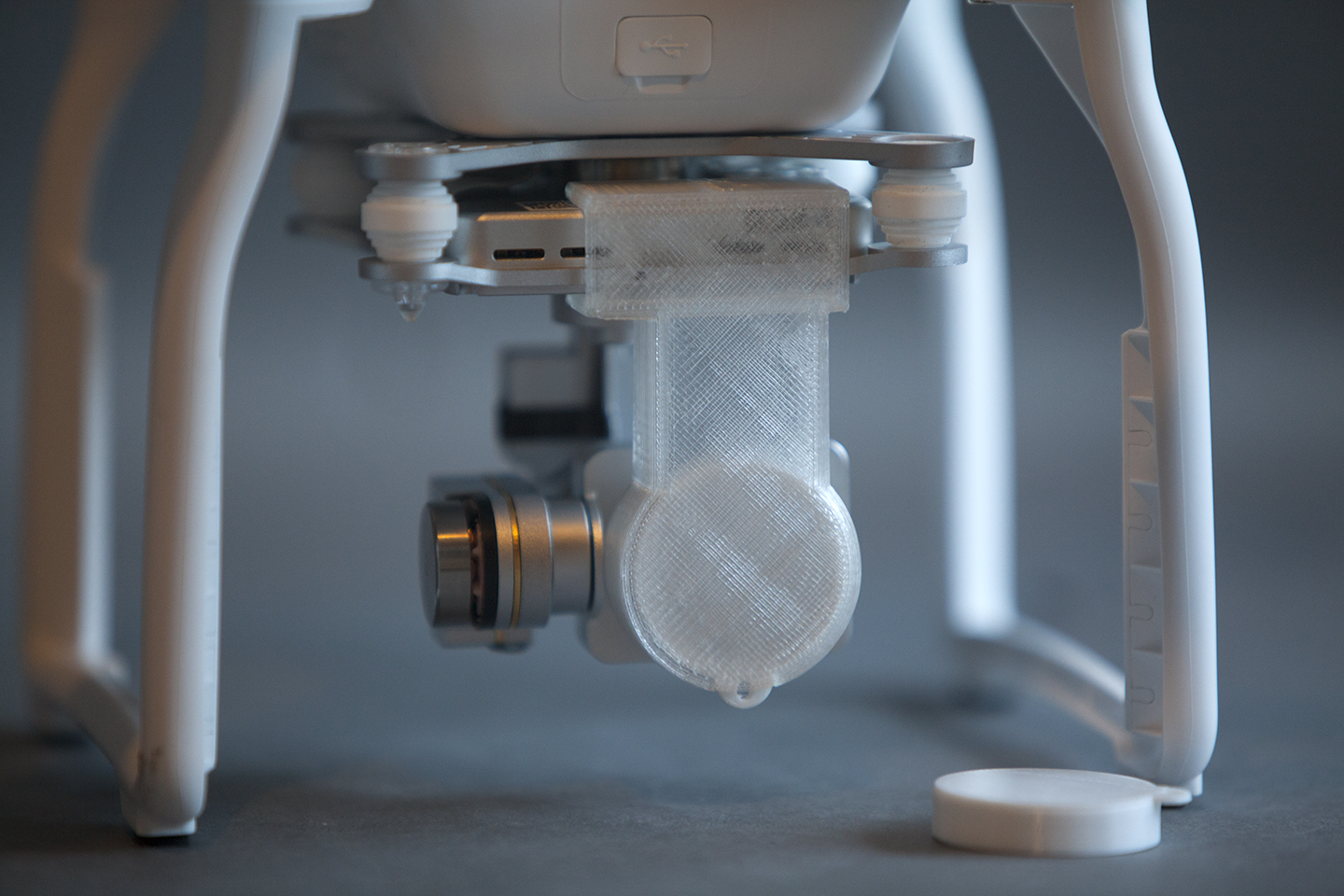

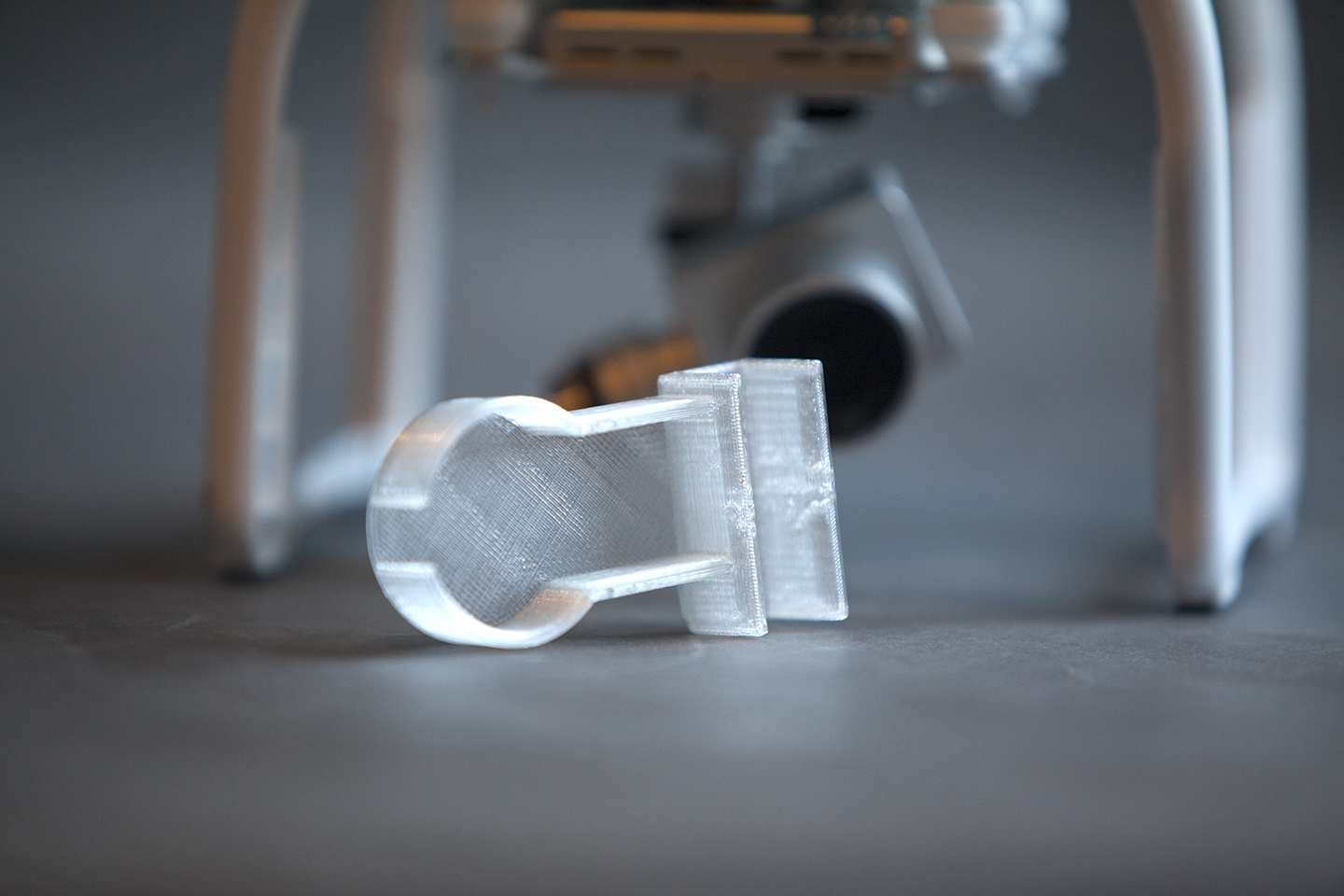

I have one that might slip over your lens cap and do a better job than the stock one. I View attachment 20810 View attachment 20811 know that's not saying much. here is the link to just the Gimbal Lock.
http://www.ebay.com/itm/111685935307?ssPageName=STRK:MESELX:IT&_trksid=p3984.m1555.l2649
The one I received is super loose on the gimbal, doesn't even hold on, camera flops all over. The factory one is much better, it actually holds things in place. The lens cap I got is awesome though.

Joined
May 4, 2015
Messages
243
Reaction score
86
Did you use it with the lens cap inside the lock? It wold be loose with out the cap inside. I have test fit the lock to fit snug on the camera and gimbal top. Can you take a photo of where it's loose?
Thanks,
Nathan
