Standard No gimbal pitch control, no errors

Joined
Jun 28, 2022
Messages
14
Reaction score
3
Age
43
I posted recently about gimbal and RC link issues with my P3S; it’s a crashed drone I bought and repaired, replaced the gimbal board, yaw motor (rotated roughly), roll motor (had broken apart), and ribbon cable (had sheared), synced to RC by shorting the missing sync button, updated FW, calibrated compass and IMU, and took a successful test flight. Biggest remaining problem? Camera pitch is limp — not held steady automatically, doesn’t move in response to RC wheel. However, no relevant errors were reported by the DJI GO app at any point.

What’s most likely the problem? Pitch motor, pitch control board, ribbon cable, other? Is there any way to troubleshoot further other than trial and error?

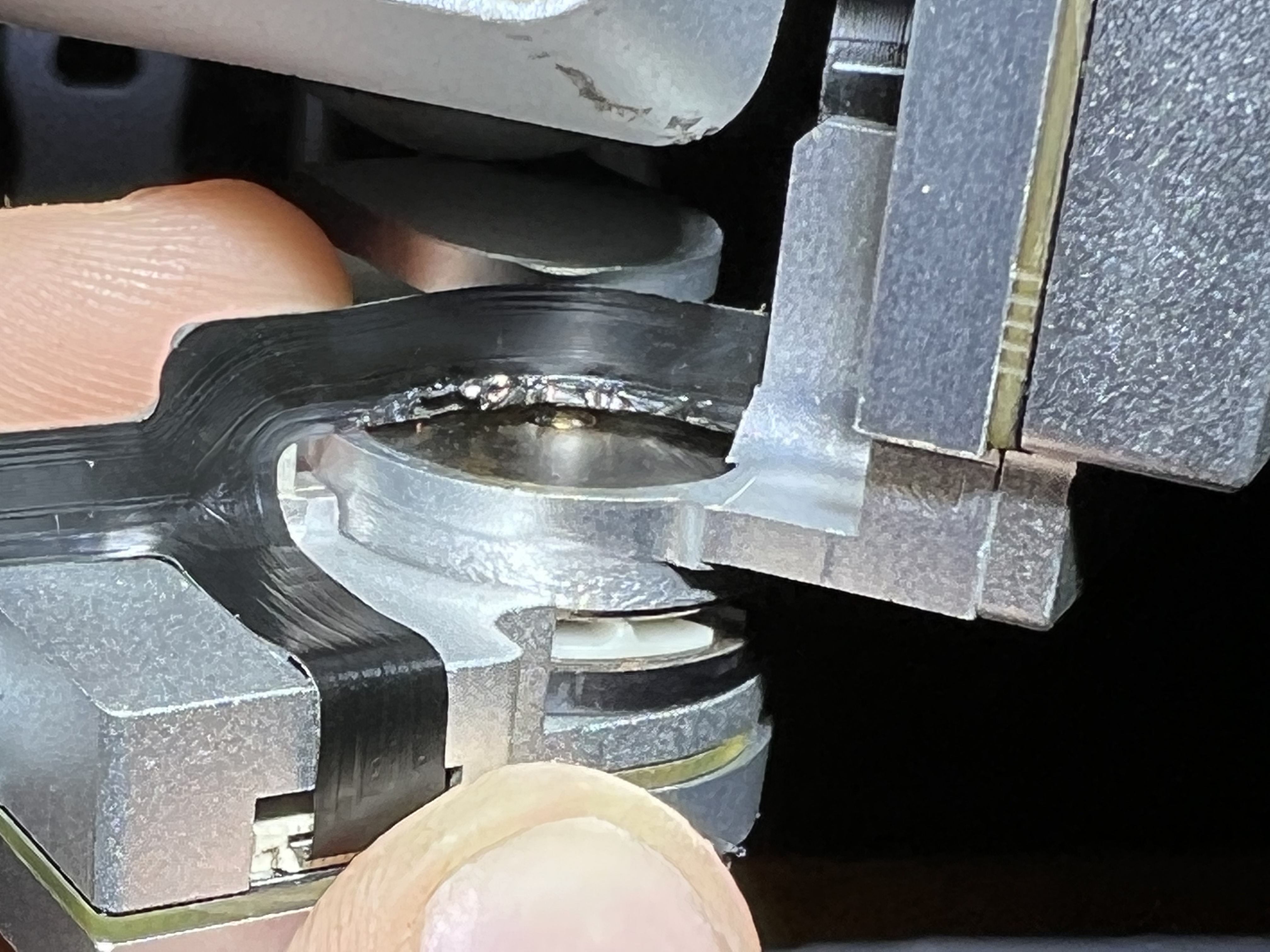

ETA: Also, burned edge on the ribbon cable after replacing it, which I smelled but couldn’t immediately locate after a lengthy firmware update attempt.


Attachments

  • 385237F9-5EA0-4258-BEC3-4AC336429AF2.jpeg
    1.8 MB · Views: 40
Last edited:
Joined
May 15, 2019
Messages
1,203
Reaction score
813
Age
60
Location
Homer,Alaska
I posted recently about gimbal and RC link issues with my P3S; it’s a crashed drone I bought and repaired, replaced the gimbal board, yaw motor (rotated roughly), roll motor (had broken apart), and ribbon cable (had sheared), synced to RC by shorting the missing sync button, updated FW, calibrated compass and IMU, and took a successful test flight. Biggest remaining problem? Camera pitch is limp — not held steady automatically, doesn’t move in response to RC wheel. However, no relevant errors were reported by the DJI GO app at any point.

What’s most likely the problem? Pitch motor, pitch control board, ribbon cable, other? Is there any way to troubleshoot further other than trial and error?

ETA: Also, burned ribbon cable edge.
Did you use a original equipment DJI ribbon cable?
Also, you mentioned burned ribbon cable edge. Is this on the cable you just replaced?

  • Like
Reactions: Vivek Dwivedi
Joined
Jun 28, 2022
Messages
14
Reaction score
3
Age
43
Did you use a original equipment DJI ribbon cable?
Also, you mentioned burned ribbon cable edge. Is this on the cable you just replaced?
Not OEM (didn’t learn that was a common issue until later), and yes, this was after ribbon cable replacement. In retrospect, pretty sure I smelled it during a previous firmware update attempt.

Joined
Jun 28, 2022
Messages
14
Reaction score
3
Age
43
Sounds like a good place to start. OEM and a fan next time. Good luck.
Just ordered OEM cable, and a pitch motor, last night. My only concern is avoiding burning the new cable, too; is it most likely an overheated roll motor due to lack of airflow that caused the damage visible in the photo I attached?

Joined
May 15, 2019
Messages
1,203
Reaction score
813
Age
60
Location
Homer,Alaska
Just ordered OEM cable, and a pitch motor, last night. My only concern is avoiding burning the new cable, too; is it most likely an overheated roll motor due to lack of airflow that caused the damage visible in the photo I attached?
Yes, I’ve seen bad roll and pitch motors burn cables.

Joined
Jun 28, 2022
Messages
14
Reaction score
3
Age
43

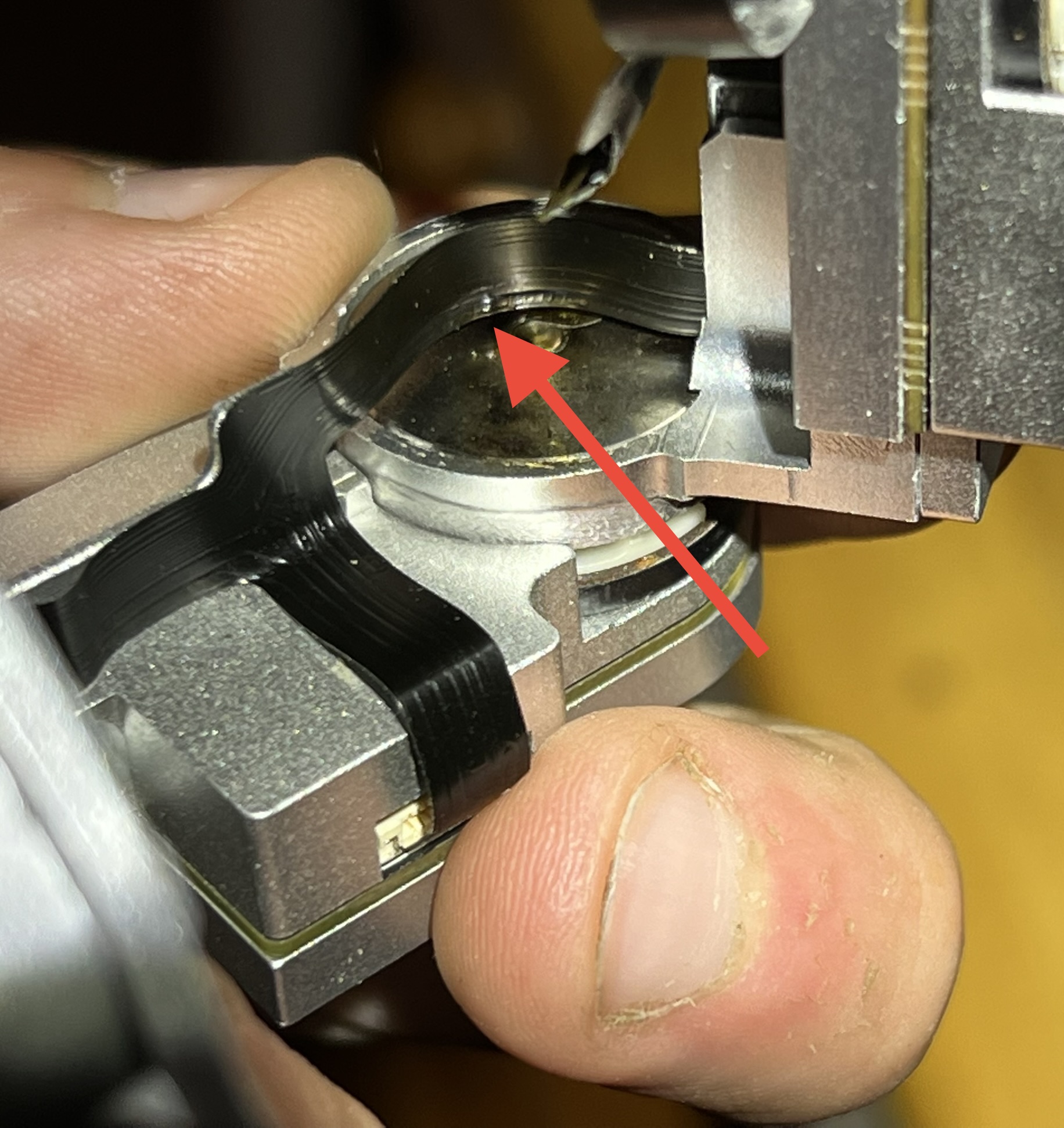

Welp.. replaced the ribbon cable (DJI) and pitch motor, powered up, gimbal didn’t move at all, and it immediately started to burn the cable in the same spot — the trace immediately adjacent to the surface of the roll motor, between roll board and pitch board. (See attached photo.) I’ve already replaced all three axis motors and the main gimbal control board; is there any way to determine if it’s still a bad motor, or one of the two axis control boards — as well as whether that one trace on the latest flex cable is still good?


Attachments

  • 2FFCEF16-F361-4712-B573-98E09ED11182.jpeg
    595.8 KB · Views: 41
