Is This Fixable? Camera Circuit Board.

Joined
Dec 31, 2018
Messages
5
Reaction score
1
Age
47

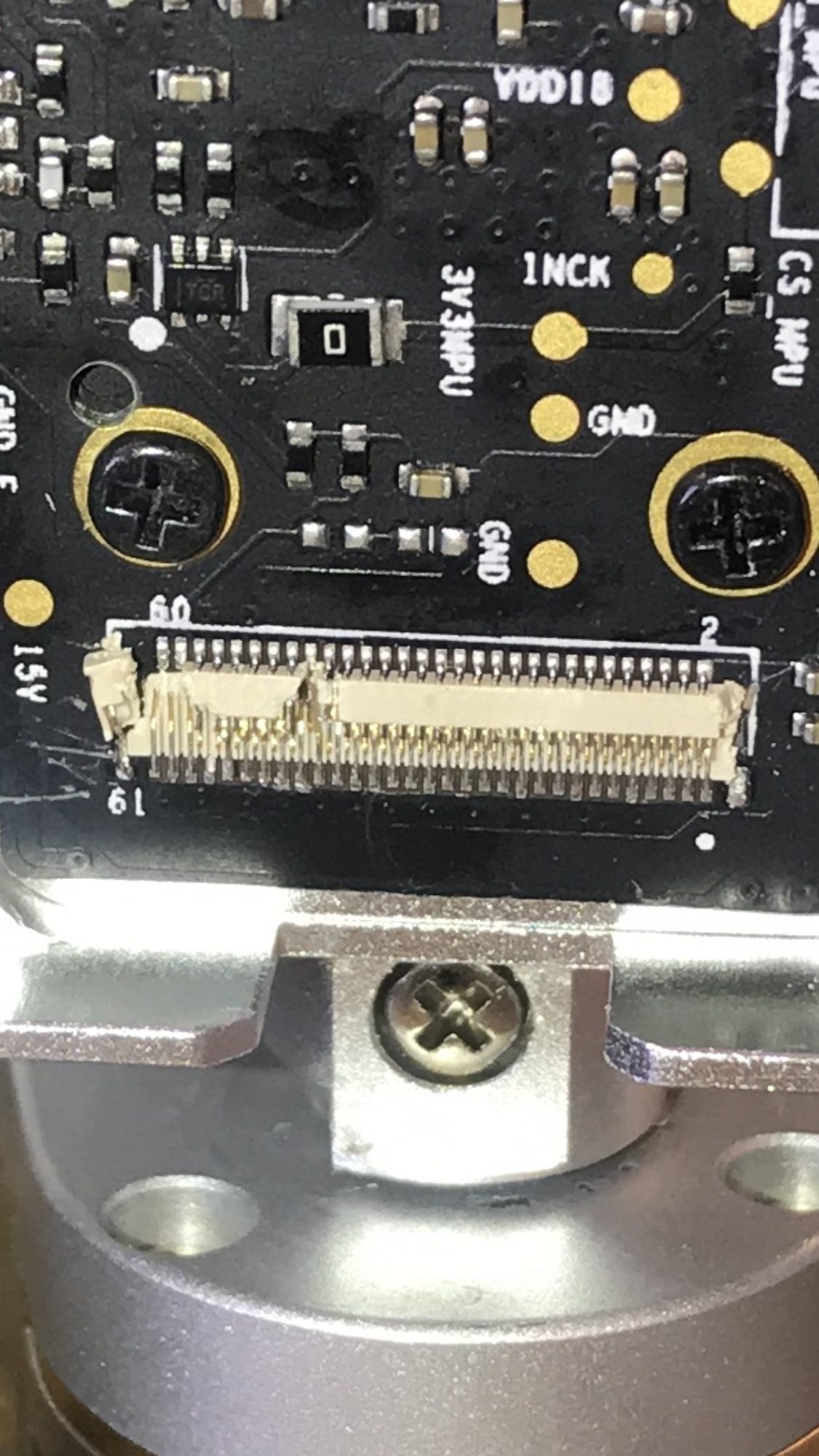

As usual I tried to replace the ribbon cable with no experience what so ever and this is what I have now. I lost the black clip that holds the cable down and damaged the white thingy that I can barely see.


Fly Dawg

"Electricity is really just organized lightning"
Premium Pilot
Joined
Apr 29, 2016
Messages
4,659
Reaction score
2,077
Location
Watkinsville, Georgia
I lost the black clip that holds the cable down and damaged the white thingy that I can barely see.
If these are like most ribbons, the black clip rotates and locks in. Both sides of the connector appear to be broken as well as a section of the center pins. You would need to replace the entire connector assembly IMHO. With no experience at such things would be quite a feat on your own. The connector would need to be de-soldered then re-soldered, pin by pin. You take a risk of lifting the trace pads with too much heat, and conversely a poor connection with not enough. It takes a very steady hand, a fine tip temperature controllable iron, and good luck to accomplish that. It can be done, but it is not easy, even if you can find the connector.

  • Like
Reactions: Humpinit and Oso
Joined
Jan 4, 2016
Messages
7,844
Reaction score
3,113
Location
Australia
Ouch!!!!! I can’t imagine how you managed to butcher it that badly without ripping the header off the board completely. I think your in the market for a new board unfortunately. While many have the proficiency to repair it they probably wouldn’t want to take it on because it’s fiddly and as has been said can take a bit if reworking to get it 100%.

Out of curiosity how did you manage this? Tried to lever the connection apart with a screwdriver?

  • Like
Reactions: Humpinit
Joined
Jan 1, 2019
Messages
96
Reaction score
56
Age
30
The assembly is fixable, but with little experience you are more likely to cause additional damage to the board than actually fix it. I’d recommend finding a board from another quad, or possibly attempting to salvage one from a crashed quad, which can be a cheaper option, but any prts from crashed drones must be thoroughly inspected.
