Gimbal main board VS OFDM module

Joined
Aug 25, 2018
Messages
6
Reaction score
0
Age
42
Hi,

I have P3 Adv which had a crash and now there is no live streamining from the drone to my phone(S8+).
The gimble works fine, camera takes photos/videos, but there is no live streaming to the phone.
I suspect the one of the modules is broken (Gimbal main board OR OFDM module).

Which part is responsible for video transmission?

Thanks Alot!

Joined
Jan 4, 2016
Messages
7,844
Reaction score
3,114
Location
Australia
Both.... do you have telemetry in the go app? If so probably the top gimble board. Video signal goes from there to OFDM board (above VPS) via USB... the. It’s obvious problem is the gimble to OFDM cable but I’m guessing you have had a good fiddle with that.

Joined
Aug 25, 2018
Messages
6
Reaction score
0
Age
42
On go app, the HD indicator is full, meaning the drone camera signal is transmitted just fine.
Is it means that the OFDM module is ok and probably the gimble board is malfunctioned?

Joined
Jan 4, 2016
Messages
7,844
Reaction score
3,114
Location
Australia
I don’t know if you can safely assume the camera signal is being transmitted. I was interested in if you are getting telemetry displayed (this is encoded by OFDM) board. If yes suspect camera.

Joined
Aug 25, 2018
Messages
6
Reaction score
0
Age
42
I can take photos/video with the camera from the remote control/go app, but in order to see them I need to plug the SD card into computer.
I do get distance from proximity sensor, camera exposure, channels in HD menu seems to get transmissions.
Also I do get camera histogram perfectly.

Last edited:
Joined
Aug 25, 2018
Messages
6
Reaction score
0
Age
42
Hi,

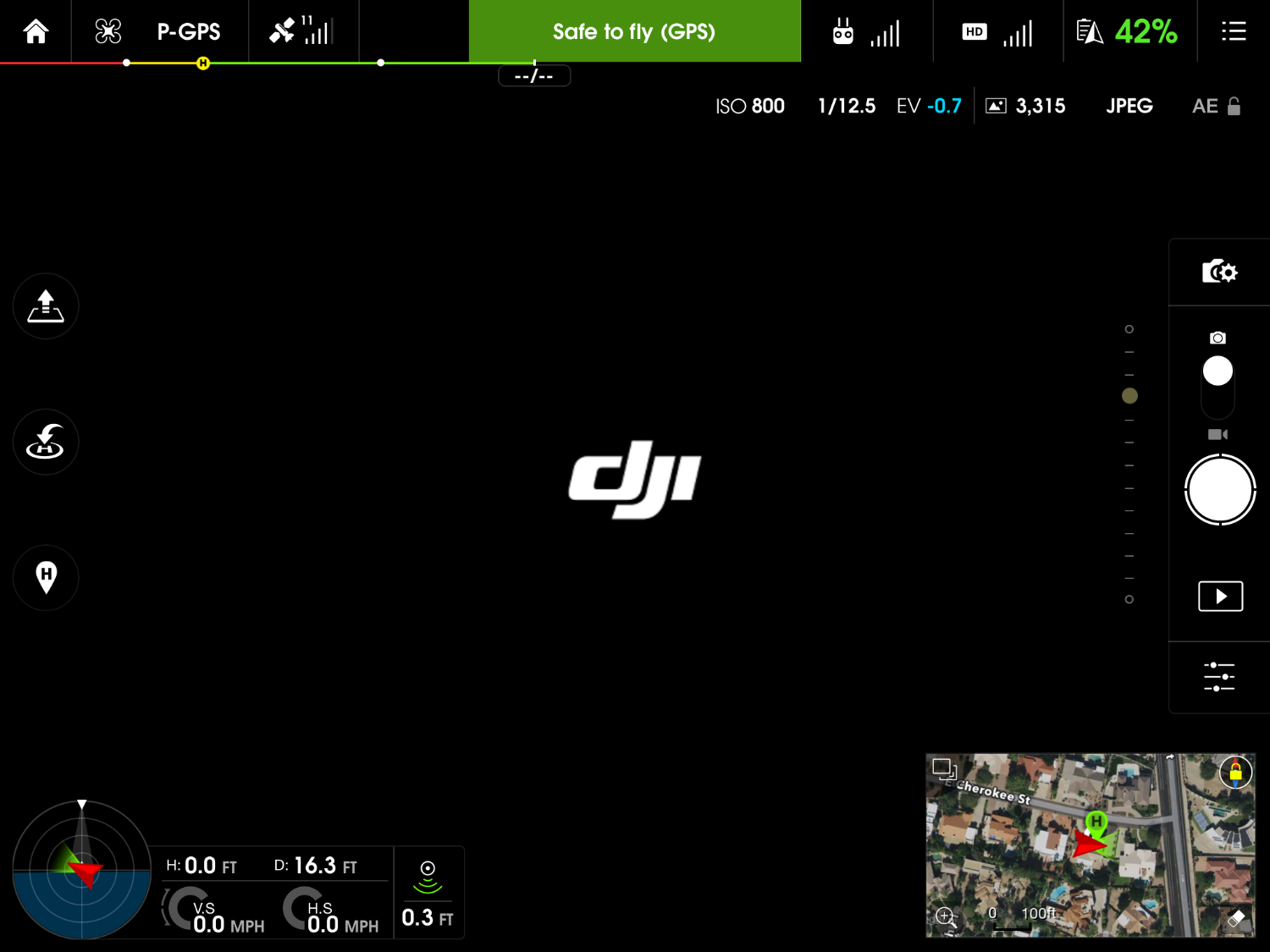

attaching a photo of my phone, HD indicator is fully receiving the signal from the drone.
Does it mean the OFDM board is working fine and the issue is probably the gimbal board?

Thanks


Attachments

  • 100320m10srocccynss0cq.png
    366.2 KB · Views: 349
Joined
Jan 4, 2016
Messages
7,844
Reaction score
3,114
Location
Australia
Telemetry seems to be ok, right?
regarding #4, if the camera takes photos/videos, it reflect that the camera ok, isn't it?
Not necessarily... you might also say if telemetry can be encoded in the downlink the OFDM board is ok... As I suggested in the first instance, I would be having a really good look at the cabling and connectors. The OFDM board connector is notorious for being destroyed with even a minor crash. It doesn’t take much.

  • Like
Reactions: Elsh1
Joined
Aug 25, 2018
Messages
6
Reaction score
0
Age
42
Not necessarily... you might also say if telemetry can be encoded in the downlink the OFDM board is ok... As I suggested in the first instance, I would be having a really good look at the cabling and connectors. The OFDM board connector is notorious for being destroyed with even a minor crash. It doesn’t take much.


Thanks a lot for the support.
I will try replacing the ribbon cable first, hopefully it will solve it :\

Joined
Jun 30, 2016
Messages
1,437
Reaction score
636
Location
PL
Do you solve the problem?
Even if he did, there is no reason to assume you have the same cause.

The drone consists of modules which talk to each other. They are like separate computers linked into a network.
Do something which will ask all modules for something, ie. FW version. Check if all responded. If any module didn't respond - it is your culprit, it either doesn't boot or is disconnected from the rest.
