New product: 4W Powered Antenna Extenders * Long Range Antenna extender* up to 10km range

Joined
Nov 13, 2015
Messages
85
Reaction score
23
Age
30
Website
www.fstop-labs.com
Hi Everyone,

We are coming out with a new antenna extender to extend your range up to 5km in noisy environments (city etc) and up to 10km out in the wild. It is an all in one package - amplifier and battery in one simple package so you don't have to deal with the hassles of carrying/highly modifying your RC controller.

Price: $249, please visit our website at Long Range Antenna Systems 5-10KM

You can also swap out different antennas easily since the amplifier and battery is not coupled with the output antennas.
  • 4W Powered Lightbridge antenna signal booster with an integrated 6000mah battery (5-6 flights)
  • Range increases to about 5km in the city (noisy environment), and 10km outside
  • Charges directly via USB
  • You can use custom antennas
  • Uses direct sequence (DSSS), orthogonal frequency division multiplexing (OFDM) to amplify the signal
Compatible with:

  • Phantom 3 Professional, Advanced
  • Phantom 4
  • Matrice 600/100
  • Inspire 1, V2.0, Pro
  • Any Lightbridge Remote
Specifications:

  • Working frequency band: 2.4 ~ 2.5GHz.
  • Operating voltage: 7.5V.
  • Receive gain: 10dB ± 1.
  • Transmitting gain: 13dB ± 1.
  • Input power range: 3 ~ 20dBm.
  • Maximum output power (P1dB): 4W (36dBm)
  • EVM: 3% @ 28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz.
  • Operating Current: 435mA @ Pout 28dBm 9V.
  • Noise figure: ≤2.5dB.
  • Transmission delay: ≤ 1us.
  • Operating temperature: -40 C ~ 80 C


Attachments

Last edited:
  • Like
Reactions: Drestin Black
Joined
Jul 14, 2015
Messages
512
Reaction score
162
Location
West Yorkshire, UK
Hi Everyone,

We are coming out with a new antenna extender to extend your range up to 5km in noisy environments (city etc) and up to 10km out in the wild. It is an all in one package - amplifier and battery in one simple package so you don't have to deal with the hassles of carrying/highly modifying your RC controller.

You can also swap out different antennas easily since the amplifier and battery is not coupled with the output antennas.
  • 4W Powered Lightbridge antenna signal booster with an integrated 6000mah battery (5-6 flights)
  • Range increases to about 5km in the city (noisy environment), and 10km outside
  • Charges directly via USB
  • You can use custom antennas
  • Uses direct sequence (DSSS), orthogonal frequency division multiplexing (OFDM) to amplify the signal
Compatible with:

  • Phantom 3 Professional, Advanced
  • Phantom 4
  • Matrice 600/100
  • Inspire 1, V2.0, Pro
  • Any Lightbridge Remote
Specifications:

  • Working frequency band: 2.4 ~ 2.5GHz.
  • Operating voltage: 7.5V.
  • Receive gain: 10dB ± 1.
  • Transmitting gain: 13dB ± 1.
  • Input power range: 3 ~ 20dBm.
  • Maximum output power (P1dB): 4W (36dBm)
  • EVM: 3% @ 28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz.
  • Operating Current: 435mA @ Pout 28dBm 9V.
  • Noise figure: ≤2.5dB.
  • Transmission delay: ≤ 1us.
  • Operating temperature: -40 C ~ 80 C

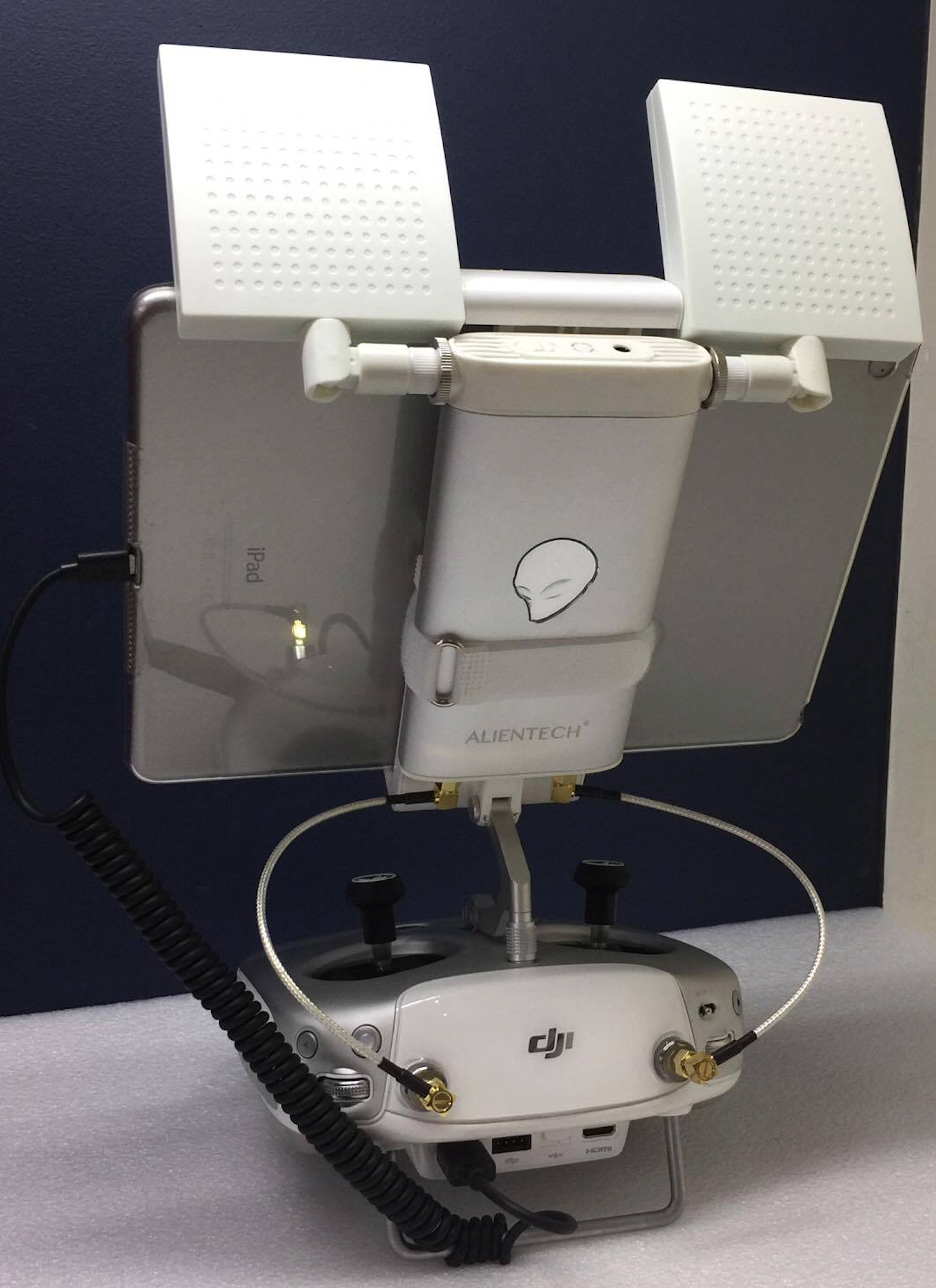

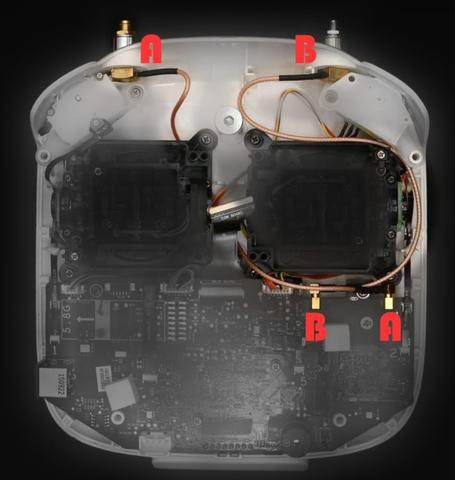

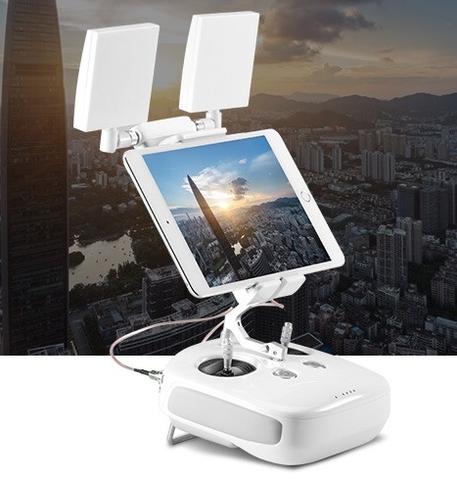

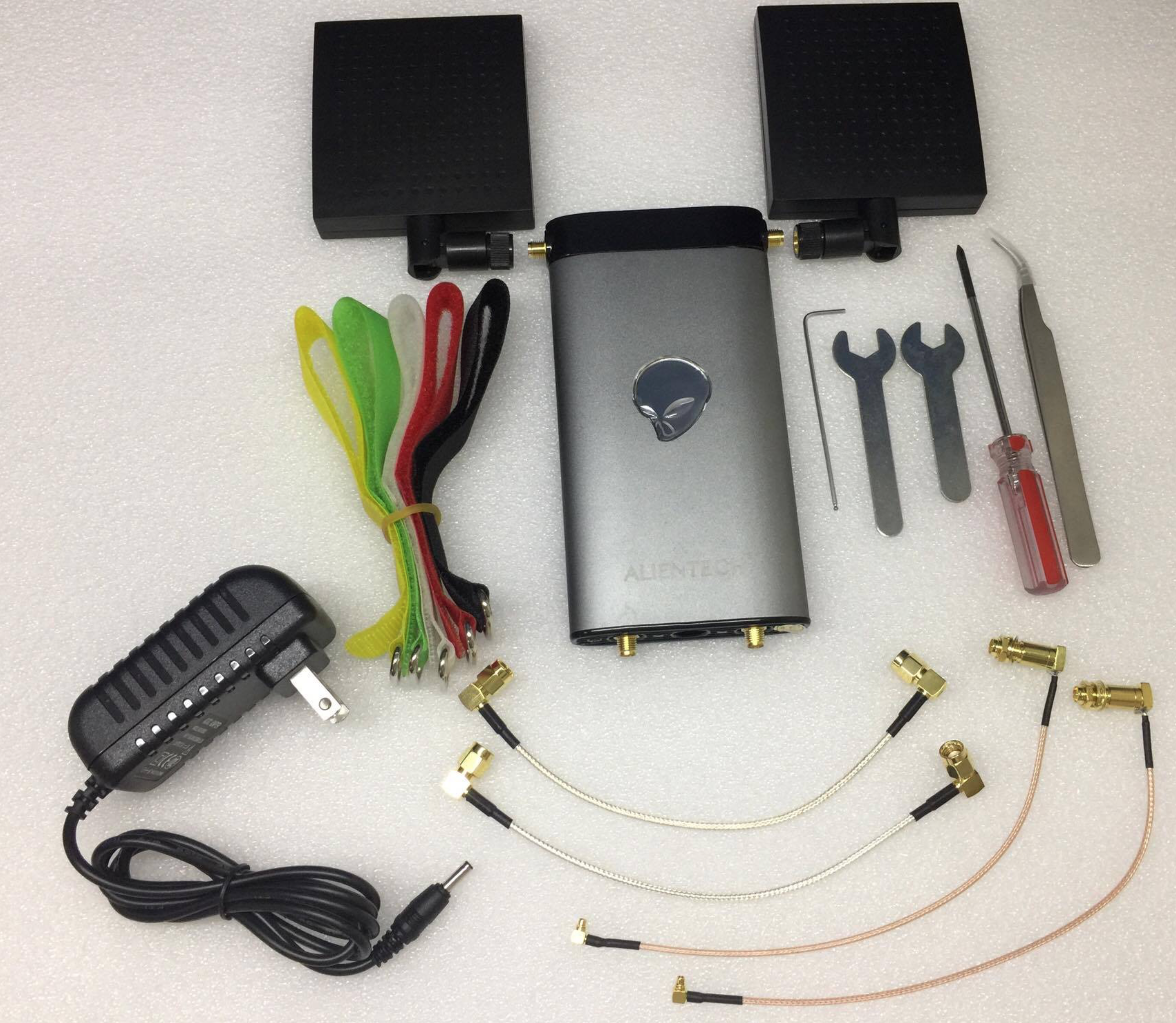

View attachment 68056 View attachment 68061 View attachment 68063 View attachment 68058
Looks really good when can we have one....?
