F-Stop, Shutter speed and ISO. A refresher in what it all means.

Joined
Dec 4, 2016
Messages
51
Reaction score
50
Age
61
Location
Parrish, FL
A quick lesson in photography as it relates to your Phantom 4 Pro.



Our new drones come with a pretty sophisticated camera. The only problem with that is; you have to make adjustments and setting to get the most out of it. Many, if not most, simply set it to Auto and off you go. This usually produces satisfactory results to the new pilot; after all, you’re seeing a birds-eye view of your stuff for the first time. To start getting professional results, you need to understand what all the numbers mean and how you can use them to your advantage.

Our Phantoms have basically three settings:
ISO - Camera sensitivity to light
Shutter Speed - length of time your ‘shutter’ is open. 60 = 1/60th of a second.
F-Stop - essentially the iris of your camera.

We’ll talk about all these and how they relate to each other.

The ISO tells the camera how sensitive it is to light. The higher the number, the more sensitive. ISO 100 is the bottom setting. It’ll give you the best quality results as far as noise in shadow detail. If at all possible, you should strive to start with this setting. If there isn’t sufficient light (i.e., you can’t get the shutter speed you want or some other reason) you can adjust this upwards. ISO 200 is twice as sensitive as 100. ISO 400 is twice as sensitive as ISO 200 and four times as sensitive as ISO 100; and so on. There is a trade off. The higher the ISO you go, the faster the sensor has to collect light and the more noise is introduced into the darker regions of your image. Only your eye can be the judge if it’s suitable. On some occasions, you may want to set a very high ISO on bright days to allow for a very fast shutter speed. This will allow you to stop action. Noise wouldn’t be as big a factor as you’re shooting in a bright environment.

The shutter speed simply is the length of time the sensor catching light. The speed is actually the reciprocal of the number you see on screen, i.e. 200 = 1/200th second. 1000 = 1/1000th second. The higher the number, the shorter (faster) time the ‘shutter’ is open. You’d want a fast shutter to stop action. A slower shutter to create blur or to use a smaller f-stop.

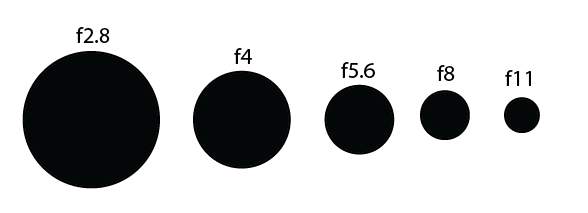

The f-stop is the iris of your camera. In Auto mode, the computer determines what it thinks is the best combinations of settings to get an exposure. It adjusts all these parameters and comes up with an EV value. This value is displayed on your screen as well. The f-stop value starts at f2.8. This is the widest opening your camera can have. It lets in the most amount of light for a given ISO and shutter speed. When you set the f-stop to f4, you let in exactly 1/2 the amount of light as f2.8. An f-stop of 5.6 lets in HALF the amount of light as f4 and ONE QUARTER the amount of light as f2.8. An f-stop of f8 lets in HALF the amount of light as F5.6 and ONE EIGHTH the amount of light as f2.8. F11 = 1/2 the amount of light as f8 and ONE SIXTEENTH the amount of light as f2.8. You can see the relationship in the little graphic I attached.
Screen Shot 2017-02-21 at 1.03.41 PM.png


If you’re starting to see a pattern here, you’re right. Let’s look at some examples.

For the sake of argument lets say you have ISO set to 400. Shutter speed set to 800, f-stop set at f5.6. We’ll call this an EV of 0.

You want to change the shutter speed to 400. That lets in twice as much light because it’s 2x slower. To keep the same EV=0, you’d have to change the f-stop to f8, which lets in half as much light as f5.6. (Yes you could also have changed the ISO to 200 but it’s good practice to keep the ISO fixed for each shoot). If you wanted to change the shutter speed to 200, you’d have to change the f-stop to f11, again as 1/200 is twice as long as 1/400th, letting in twice as much light, thus f11 lets in half as much as f8 and your EV stays at EV=0.

Well what now if you want to get to a shutter speed of 100 (or 60?) Remember cinematic blur? F11 is the uppermost (smallest opening) f-stop. Since we can go any further on the f-scale (we could change the ISO in this instance to 100, letting in 1/4 the amount of light via sensitivity), this is where ND filters come in. An ND4 filter lets in 1/4th (2 f-stops) the amount of light than without. An ND8 lets in 1/8 (3 f-stops). ND16 (4 f-stops) and ND32 (5 f-stops)

In this instance, we could use an ND16 filter, set our shutter speed to 50 (or 60) and leave the f-stop at f11 keeping our EV=0. The ND16 effectively reduces the amount of light coming in the camera to give us more latitude to set our camera for our creative needs.

There are other reasons in photography to use a higher (smaller opening) f-stop that affects some of what we do but not as much as a handheld still camera. It’s called depth of field. The smaller the opening of the iris, the more light refracts and the greater the depth of field. Let’s say you take a picture of your loved one, and you focus on their face. At f2.8 Their face is nicely focused and the background beautifully blurs into a colorful, non-distracting canvas. If you used f-11 (or f16-f22 on those type cameras) the background would be in sharp focus. Maybe what you want, but maybe there would be something like a trashcan you didn’t see in the background demanding to be emptied.

On your Phantom, I’ve found that if you keep the f-stop at around f5.6, you have two stops up and down latitude while in flight. It’s normally the sharpest area of the lens and your depth of field in the air will normally be suitable to keep from constantly focusing as you fly. Also note, the Phantom allows you to adjust the f-stop in 1/3 increments. If you see EV +.3 or EV -.7 you’re 1/3 stop over exposed in the first example and 2/3rds stop under exposed in the second. It’s simply giving us more creative latitude to work with.

Remember, Strive for ISO 100. Use ND filters to get your shutter speed to 2x your video frame rate and an f-stop somewhere around f5.6. Look at your histogram to ensure you have a good distribution of light-dark (you can see this even in bright light) and you’ll be happy with nice even exposure.

Have fun folks. Fly safe. Make good shots!

Last edited:
Joined
Jan 4, 2016
Messages
7,844
Reaction score
3,113
Location
Australia
A nice comprehensive summary there. I have a few considerations to throw in, you might know the answers, with the exception of the third I don't.

Firstly, do we know ISO100 produces the lowest noise? With a lot of digital cameras one stop above the lowest available ISO setting gives the cleanest images.

Re overall exposure it's almost always preferable to expose to the right of the histogram. This gives a lot more opportunity to find detail (and less noise) in the shadow areas in post).

How are you finding images shot at apertures smaller than f5.6? Diffraction distortion should be quite apparent given the sensor photosite density.

Joined
Dec 4, 2016
Messages
51
Reaction score
50
Age
61
Location
Parrish, FL
A nice comprehensive summary there. I have a few considerations to throw in, you might know the answers, with the exception of the third I don't.

Firstly, do we know ISO100 produces the lowest noise? With a lot of digital cameras one stop above the lowest available ISO setting gives the cleanest images.

Re overall exposure it's almost always preferable to expose to the right of the histogram. This gives a lot more opportunity to find detail (and less noise) in the shadow areas in post).

How are you finding images shot at apertures smaller than f5.6? Diffraction distortion should be quite apparent given the sensor photosite density.


Good point on the ISO. I've not really looked too in depth into this. I'm always comparing my Phantom camera to my Nikon cameras. I did assume that ISO 100 was the best as far as noise but that is my assumption only.

As far as exposing to the right of the histogram, I equate digital as opposite to film. It was always my practice to slightly over-expose film and to under expose a transparency. I find digital more like transparency photography. Too much light on the sensor, detail is lost to pure white. At the under exposed side, the sensors are so good, detail can be brought back from the shadows more readily than from the highlights. I normally err to the 1/3 stop under exposed. It's simply my non-professional practice.

I try to shoot at mid f-stops. With my Nikons of course, there are reasons to shoot at f16, f22 and what have you. On this fine little camera, I'm not sure the glass (or optics) are as sharp as a pro handheld camera. I haven't done any resolution tests other than my eye's preference. I find I like the f5.6 range. You certainly would get diffraction at f11 vs f2.8. I did a little personal test to see if I could discern a better depth of field at f11, and I could. In flight, I use ND's and have a full set to get me where I need to be on the aperture. Thanks for your comments.

  • Like
Reactions: Alba52 and Texacola
Joined
Feb 18, 2017
Messages
100
Reaction score
35
Location
New York
A quick lesson in photography as it relates to your Phantom 4 Pro.



Our new drones come with a pretty sophisticated camera. The only problem with that is; you have to make adjustments and setting to get the most out of it. Many, if not most, simply set it to Auto and off you go. This usually produces satisfactory results to the new pilot; after all, you’re seeing a birds-eye view of your stuff for the first time. To start getting professional results, you need to understand what all the numbers mean and how you can use them to your advantage.

Our Phantoms have basically three settings:
ISO - Camera sensitivity to light
Shutter Speed - length of time your ‘shutter’ is open. 60 = 1/60th of a second.
F-Stop - essentially the iris of your camera.

We’ll talk about all these and how they relate to each other.

The ISO tells the camera how sensitive it is to light. The higher the number, the more sensitive. ISO 100 is the bottom setting. It’ll give you the best quality results as far as noise in shadow detail. If at all possible, you should strive to start with this setting. If there isn’t sufficient light (i.e., you can’t get the shutter speed you want or some other reason) you can adjust this upwards. ISO 200 is twice as sensitive as 100. ISO 400 is twice as sensitive as ISO 200 and four times as sensitive as ISO 100; and so on. There is a trade off. The higher the ISO you go, the faster the sensor has to collect light and the more noise is introduced into the darker regions of your image. Only your eye can be the judge if it’s suitable. On some occasions, you may want to set a very high ISO on bright days to allow for a very fast shutter speed. This will allow you to stop action. Noise wouldn’t be as big a factor as you’re shooting in a bright environment.

The shutter speed simply is the length of time the sensor catching light. The speed is actually the reciprocal of the number you see on screen, i.e. 200 = 1/200th second. 1000 = 1/1000th second. The higher the number, the shorter (faster) time the ‘shutter’ is open. You’d want a fast shutter to stop action. A slower shutter to create blur or to use a smaller f-stop.

The f-stop is the iris of your camera. In Auto mode, the computer determines what it thinks is the best combinations of settings to get an exposure. It adjusts all these parameters and comes up with an EV value. This value is displayed on your screen as well. The f-stop value starts at f2.8. This is the widest opening your camera can have. It lets in the most amount of light for a given ISO and shutter speed. When you set the f-stop to f4, you let in exactly 1/2 the amount of light as f2.8. An f-stop of 5.6 lets in HALF the amount of light as f4 and ONE QUARTER the amount of light as f2.8. An f-stop of f8 lets in HALF the amount of light as F5.6 and ONE EIGHTH the amount of light as f2.8. F11 = 1/2 the amount of light as f8 and ONE SIXTEENTH the amount of light as f2.8. You can see the relationship in the little graphic I attached.
View attachment 76771

If you’re starting to see a pattern here, you’re right. Let’s look at some examples.

For the sake of argument lets say you have ISO set to 400. Shutter speed set to 800, f-stop set at f5.6. We’ll call this an EV of 0.

You want to change the shutter speed to 400. That lets in twice as much light because it’s 2x slower. To keep the same EV=0, you’d have to change the f-stop to f8, which lets in half as much light as f5.6. (Yes you could also have changed the ISO to 200 but it’s good practice to keep the ISO fixed for each shoot). If you wanted to change the shutter speed to 200, you’d have to change the f-stop to f11, again as 1/200 is twice as long as 1/400th, letting in twice as much light, thus f11 lets in half as much as f8 and your EV stays at EV=0.

Well what now if you want to get to a shutter speed of 100 (or 60?) Remember cinematic blur? F11 is the uppermost (smallest opening) f-stop. Since we can go any further on the f-scale (we could change the ISO in this instance to 100, letting in 1/4 the amount of light via sensitivity), this is where ND filters come in. An ND4 filter lets in 1/4th (2 f-stops) the amount of light than without. An ND8 lets in 1/8 (3 f-stops). ND16 (4 f-stops) and ND32 (5 f-stops)

In this instance, we could use an ND16 filter, set our shutter speed to 50 (or 60) and leave the f-stop at f11 keeping our EV=0. The ND16 effectively reduces the amount of light coming in the camera to give us more latitude to set our camera for our creative needs.

There are other reasons in photography to use a higher (smaller opening) f-stop that affects some of what we do but not as much as a handheld still camera. It’s called depth of field. The smaller the opening of the iris, the more light refracts and the greater the depth of field. Let’s say you take a picture of your loved one, and you focus on their face. At f2.8 Their face is nicely focused and the background beautifully blurs into a colorful, non-distracting canvas. If you used f-11 (or f16-f22 on those type cameras) the background would be in sharp focus. Maybe what you want, but maybe there would be something like a trashcan you didn’t see in the background demanding to be emptied.

On your Phantom, I’ve found that if you keep the f-stop at around f5.6, you have two stops up and down latitude while in flight. It’s normally the sharpest area of the lens and your depth of field in the air will normally be suitable to keep from constantly focusing as you fly. Also note, the Phantom allows you to adjust the f-stop in 1/3 increments. If you see EV +.3 or EV -.7 you’re 1/3 stop over exposed in the first example and 2/3rds stop under exposed in the second. It’s simply giving us more creative latitude to work with.

Remember, Strive for ISO 100. Use ND filters to get your shutter speed to 2x your video frame rate and an f-stop somewhere around f5.6. Look at your histogram to ensure you have a good distribution of light-dark (you can see this even in bright light) and you’ll be happy with nice even exposure.

Have fun folks. Fly safe. Make good shots!

FANTASTIC FRED!
Invaluable tools for both beginners and experienced.
Thanks or sharing!

Joined
Mar 29, 2016
Messages
1,727
Reaction score
504
Age
59
A nice comprehensive summary there. I have a few considerations to throw in, you might know the answers, with the exception of the third I don't.

Firstly, do we know ISO100 produces the lowest noise? With a lot of digital cameras one stop above the lowest available ISO setting gives the cleanest images.

Re overall exposure it's almost always preferable to expose to the right of the histogram. This gives a lot more opportunity to find detail (and less noise) in the shadow areas in post).

How are you finding images shot at apertures smaller than f5.6? Diffraction distortion should be quite apparent given the sensor photosite density.
Can't agree with you more on exposing to the right on any histogram With The Birds. But I'm puzzled by your not being sure about noise being the lowest at 100 ISO or not. I have never heard of a sensor not being the best at it's lowest ISO setting as far as noise goes. Def heard of shooting a stop or so closed from a lenses max aperture to get the sharpest image for that lens. But never heard this about ISO. Love to more know on that.

  • Like
Reactions: DronePilotOne
Joined
Jan 4, 2016
Messages
7,844
Reaction score
3,113
Location
Australia
Can't agree with you more on exposing to the right on any histogram With The Birds. But I'm puzzled by your not being sure about noise being the lowest at 100 ISO or not. I have never heard of a sensor not being the best at it's lowest ISO setting as far as noise goes. Def heard of shooting a stop or so closed from a lenses max aperture to get the sharpest image for that lens. But never heard this about ISO. Love to more know on that.
It's simple. Camera makers often offer a user ISO setting one stop below the sensor native optimum, it's good marketing strategy. Even my old 1Ds mk3 has less DR at the lowest available ISO. Olympus EM1 is the same.

  • Like
Reactions: DronePilotOne
Joined
Mar 29, 2016
Messages
1,727
Reaction score
504
Age
59
It's simple. Camera makers often offer a user ISO setting one stop below the sensor native optimum, it's good marketing strategy. Even my old 1Ds mk3 has less DR at the lowest available ISO. Olympus EM1 is the same.
Wow! I have been shooting Canon DSLR's for 13 years and I have never heard of this. So your telling me that your old 1Ds mk3 has lower noise at 200 ISO compared to 100? I still have my 1Ds mk2 but have now gone through all the 5D's and on the 4 now. Great camera btw. I certainly appreciate the info btw.

  • Like
Reactions: DronePilotOne
Joined
Jan 4, 2016
Messages
7,844
Reaction score
3,113
Location
Australia
Wow! I have been shooting Canon DSLR's for 13 years and I have never heard of this. So your telling me that your old 1Ds mk3 has lower noise at 200 ISO compared to 100? I still have my 1Ds mk2 but have now gone through all the 5D's and on the 4 now. Great camera btw. I certainly appreciate the info btw.
No, I'm saying 100 is better than 50 ISO on the 1Ds3. 200 better than 100 on the Olympus. i have a few 5s and the latest 4 also. They are just tools, I think the current nikons pull the pants down on canon offerings but have too much investment in glass to change camps. As subjective as it might be I still find the overall colour rendition of the 1ds3 is very hard to beat.
