Phantom 4 pro Gimbal ESC board calibration help

Joined
Mar 12, 2021
Messages
12
Reaction score
3
Age
48
Hi to all of you, drone enthusiasts,

I come again here on the forum hoping that someone has experience with ESC Board calibration.
I have a P4PRO drone which had the so called "limp gimbal" sindrome and after we unscuccesfully try everything to correct it (gimbal calibration, imu calibration,firmware downgrade, firmware update, etc) we have come to the conclusion that the gimbal esc board is dead and needs replacement.

So, I bought one from ebay and replace it, but now we have another problem: the camera YAW direction is not straight, but facing to the left about 45 degres. I noticed that the ebay seller posted on his page that the ESC board needs professional calibration after replacing.

Now I come to you with the question: does anyone have any ideea of how this calibration is performed ?
We find some clues on github.com about the "dji-firmware-tools", and on another site: wiki.dji-rev.com about OGs Service Tool for Dji products

Does anyone try such calibration with some of these software ? Is this calibration need the specific software or is there any other procedure in order to complete it ?

Thank you in advance, any advice is welcomed, as we are in a dead end wit this isue....

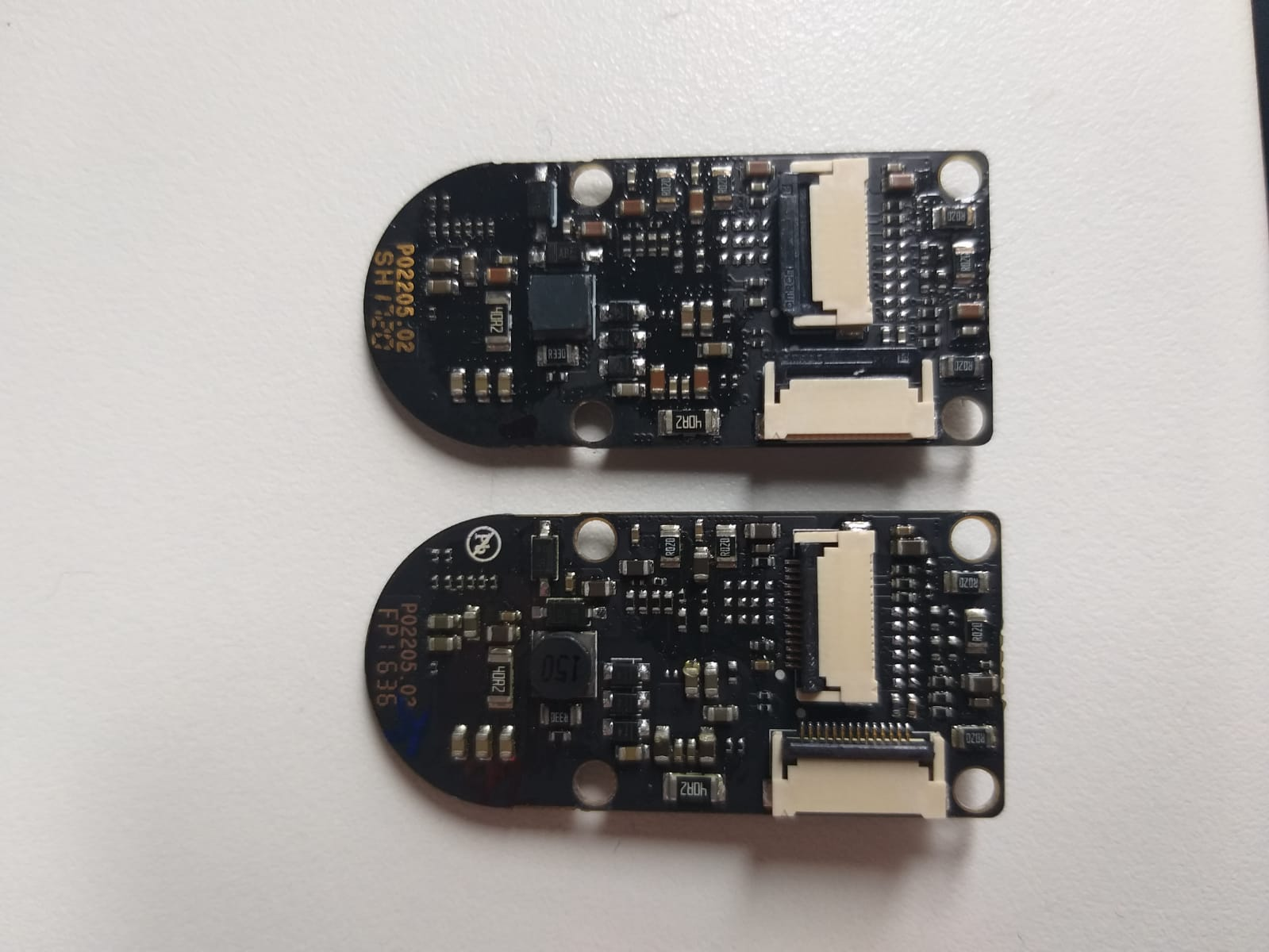

PS: This is the board responsable for "Limp Gimbal", which needs callibration after replacement, I talk about in my post:



Now


Attachments

  • 1646313760815.png
    1.1 MB · Views: 57
Joined
Mar 3, 2022
Messages
14
Reaction score
2
Age
39
I am having same issue after changing the yaw motor and yaw roll motor esc board . Gimbal is facing left side . Anyone can help with yaw motor roll motor esc baord calibratiin tool please. It is not even calibrating with dji firmware tools master (python).
Thanks in advance

Joined
Mar 3, 2022
Messages
14
Reaction score
2
Age
39
the only solution which i know is keep changing the yaw roll esc board till it is aligned . dji firmware tolols master (python) not working on phantom gimbals . correct me if i am wrong . some people are having calibration tool for yaw roll esc board . i tried to buy that tool but didn't find anywhere. if someone have the tool to calibrate yaw roll motor esc board then please share . thanks in advance

Joined
Jun 1, 2022
Messages
15
Reaction score
3
Age
55
The yaw angle data comes from the motor, there are two analog Hall sensors. It's easier for you to replace the motor.

Joined
Jun 1, 2022
Messages
15
Reaction score
3
Age
55

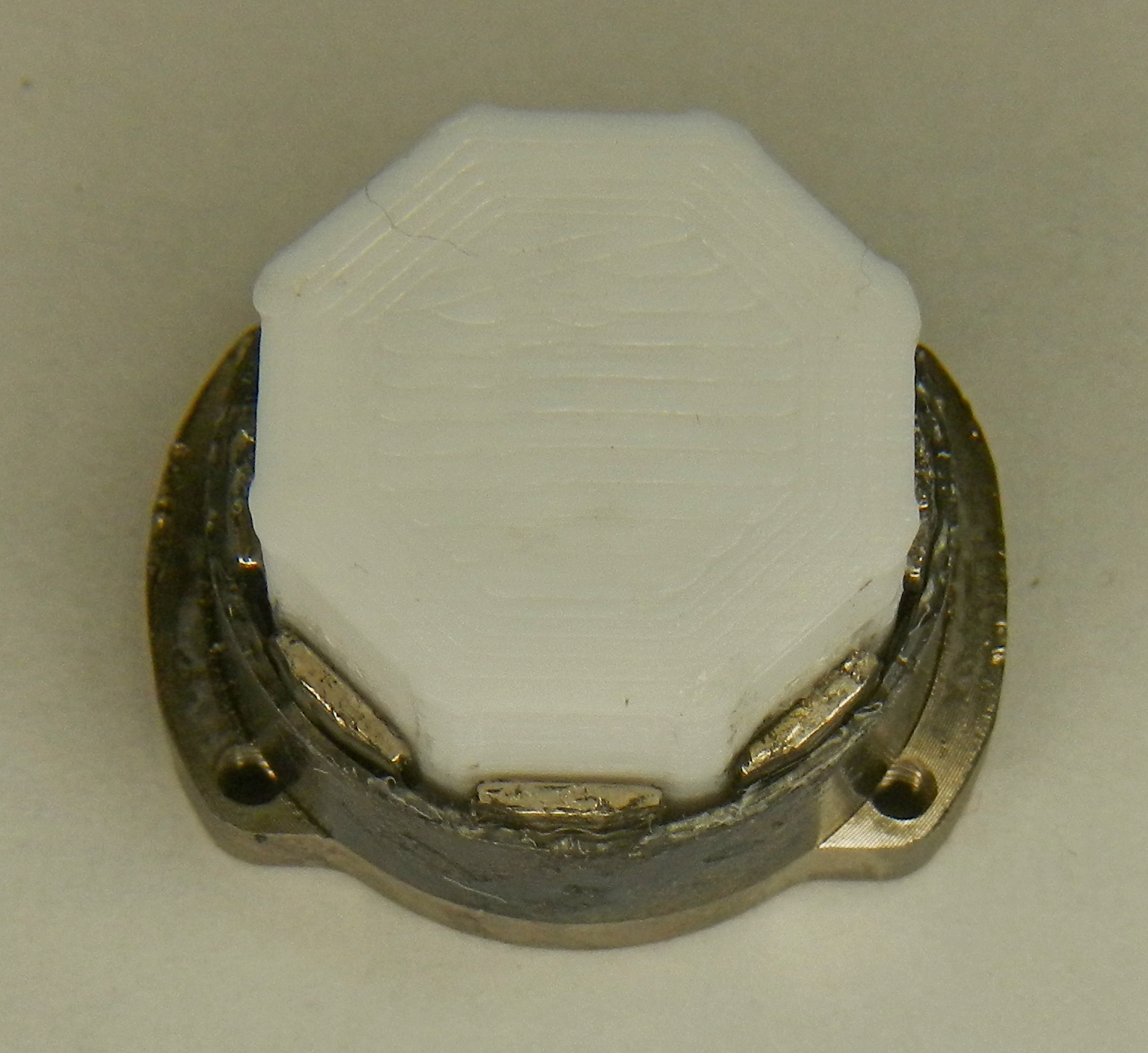

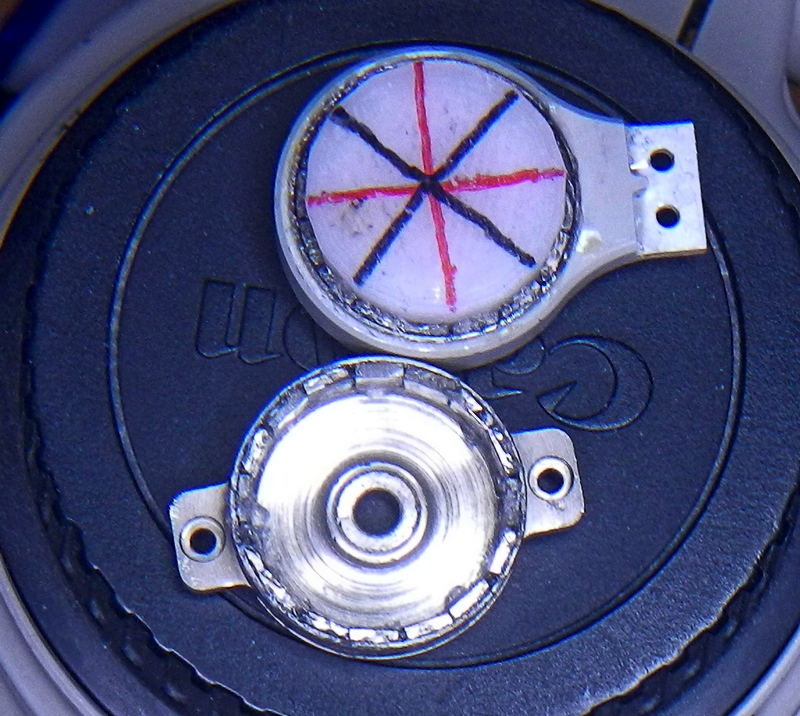

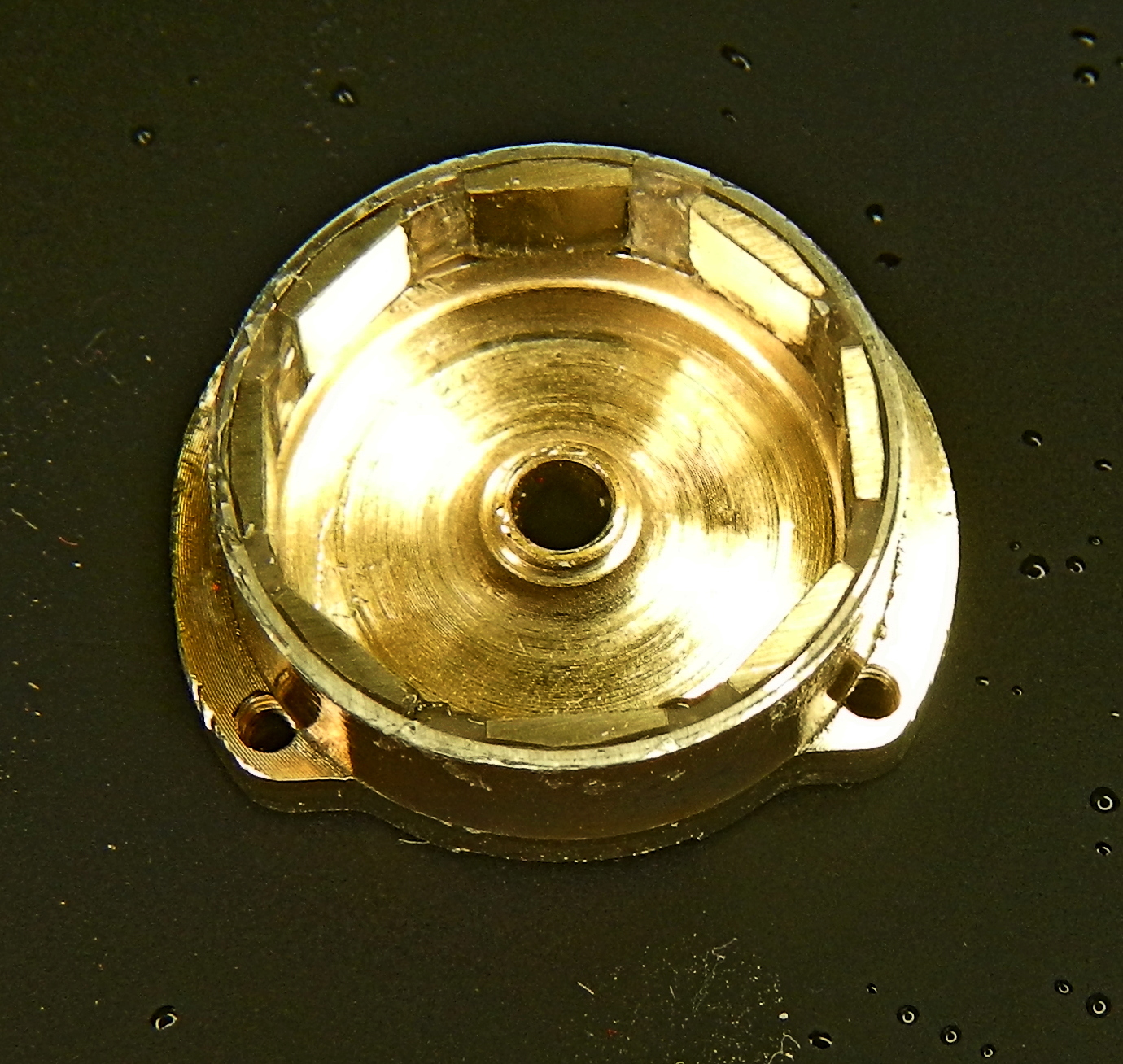

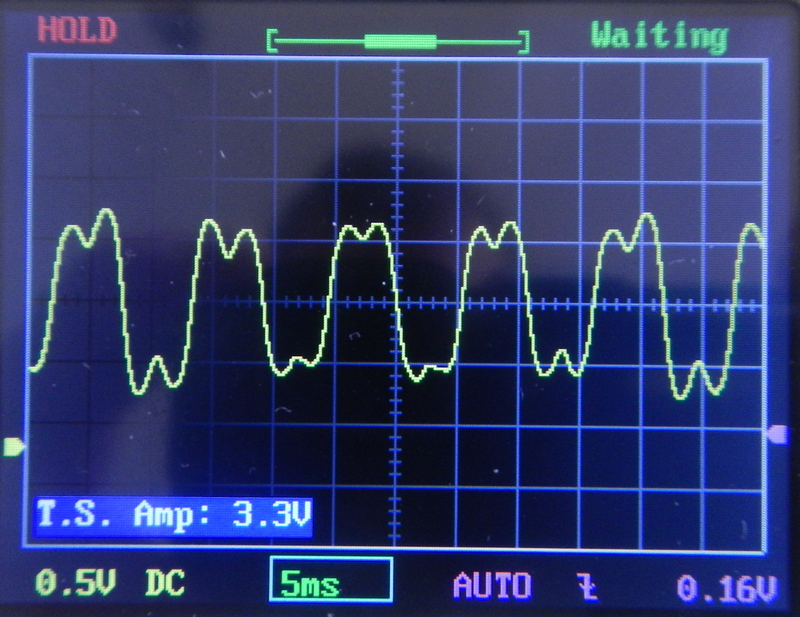

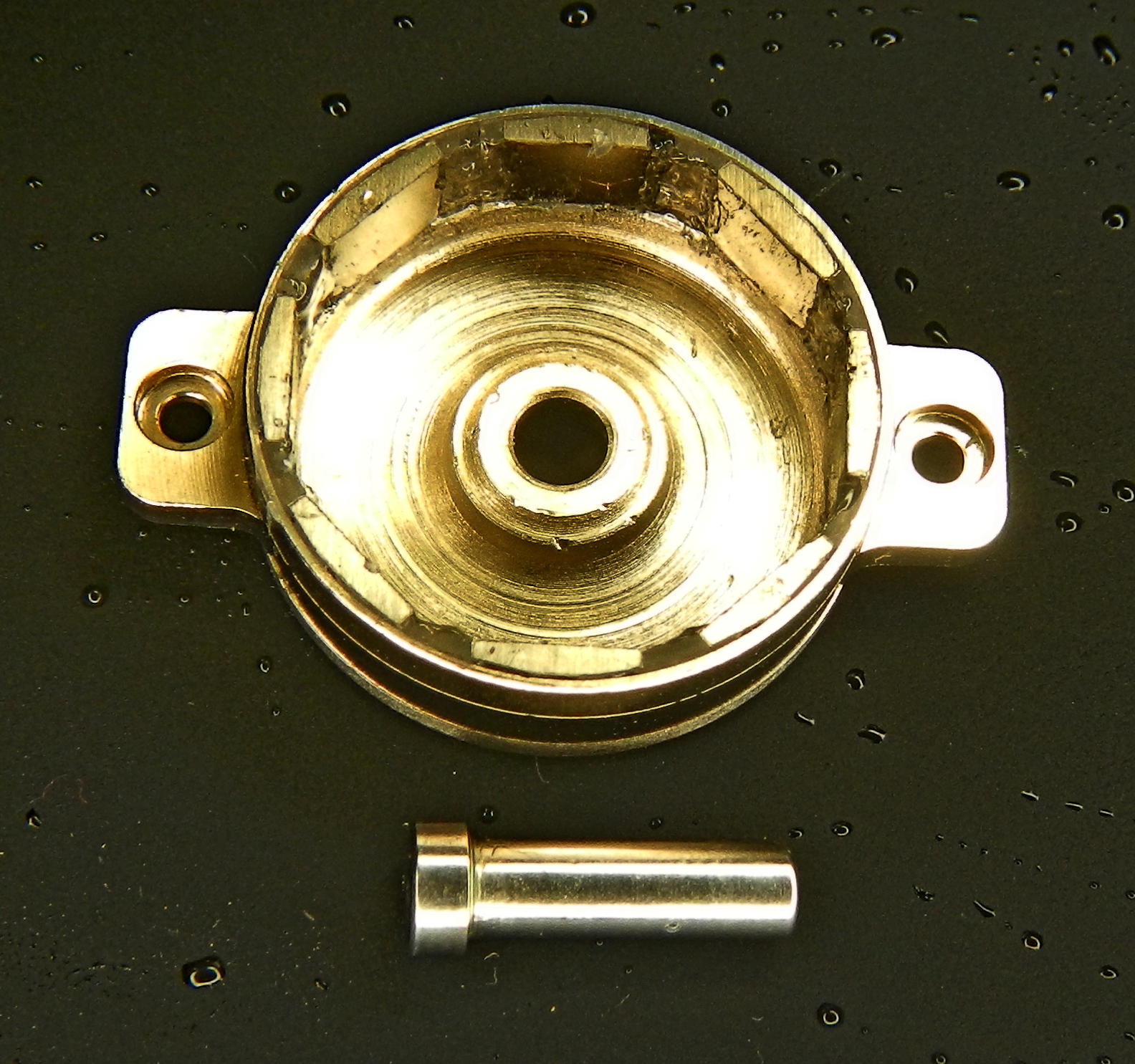

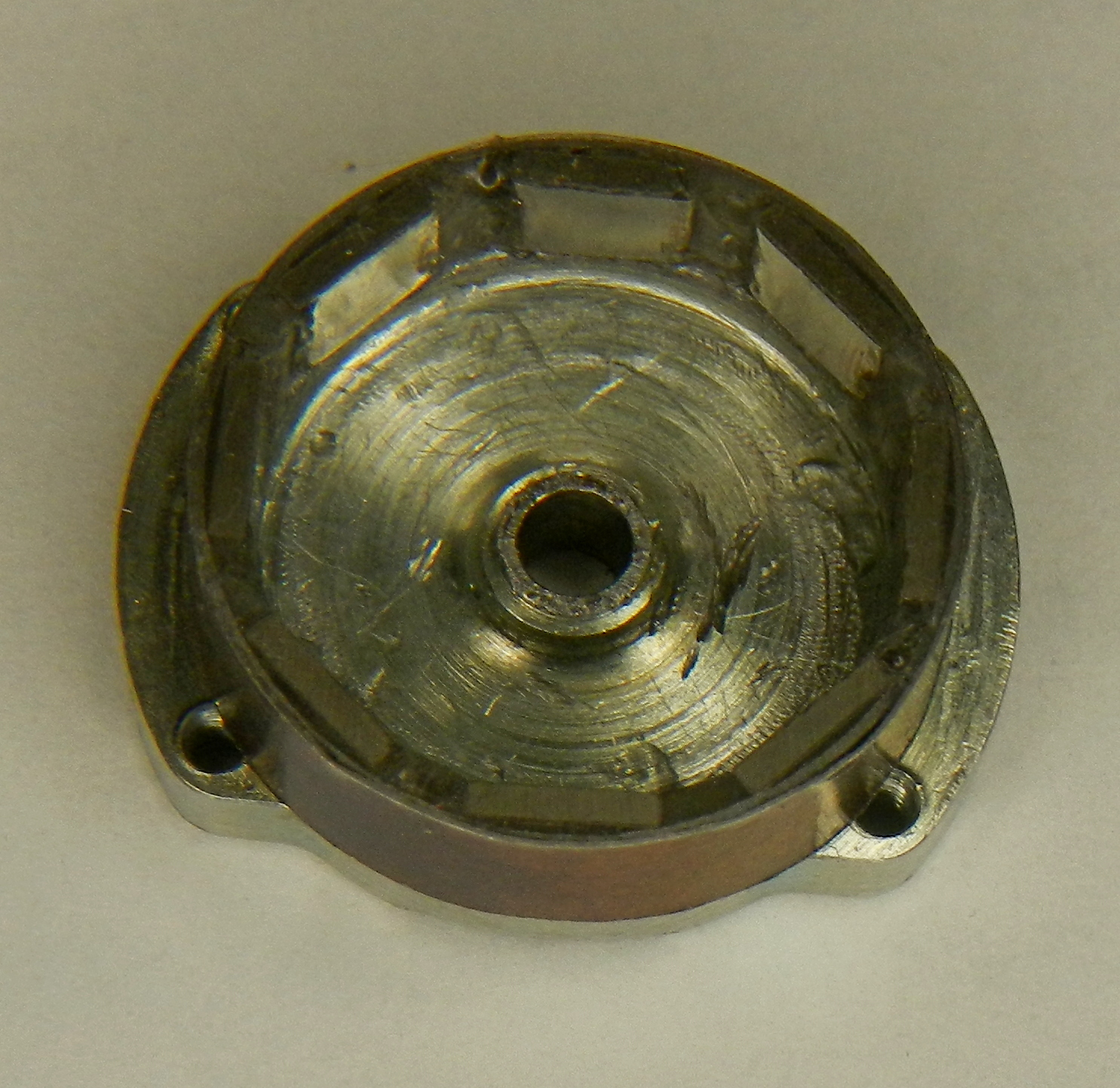

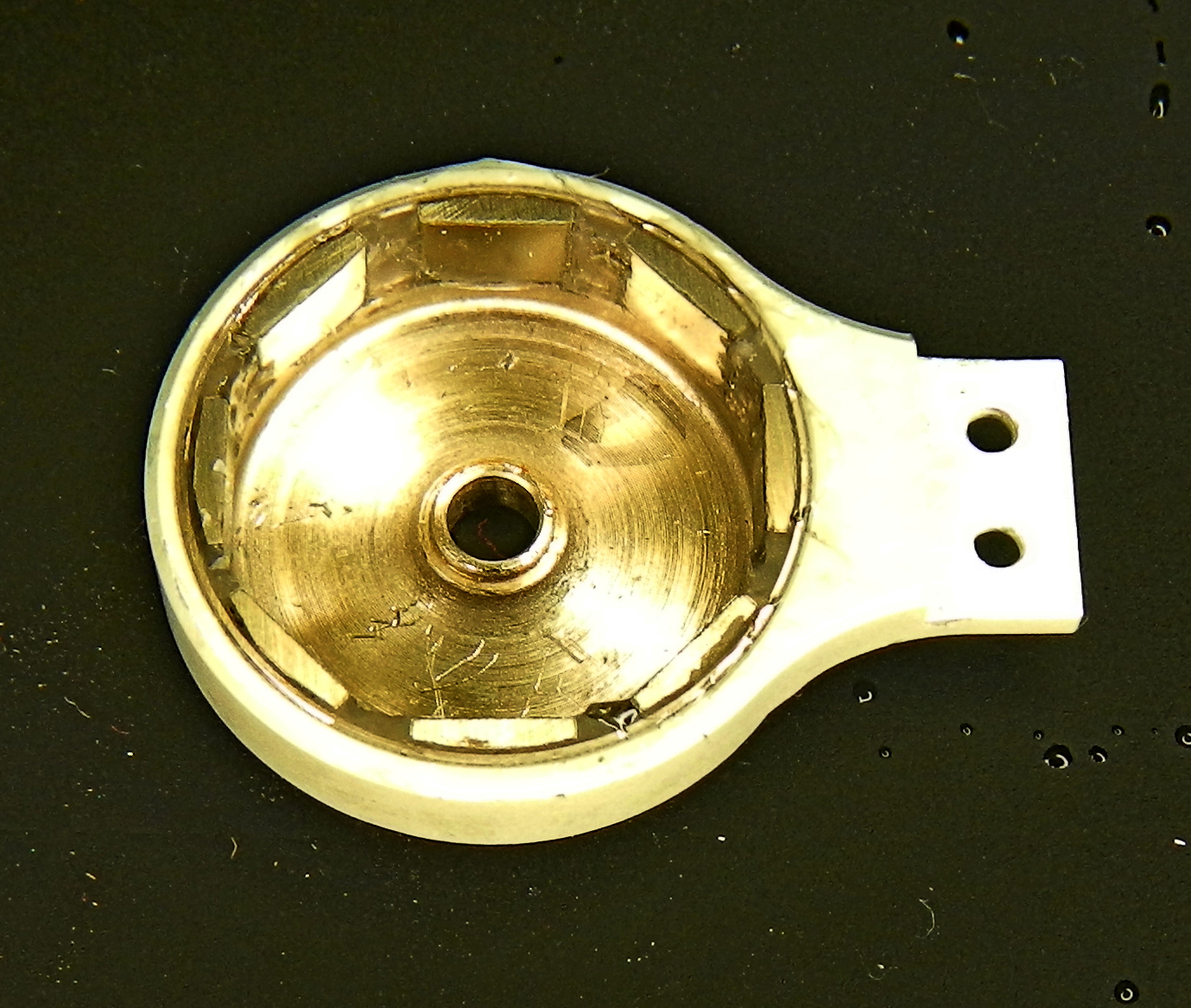

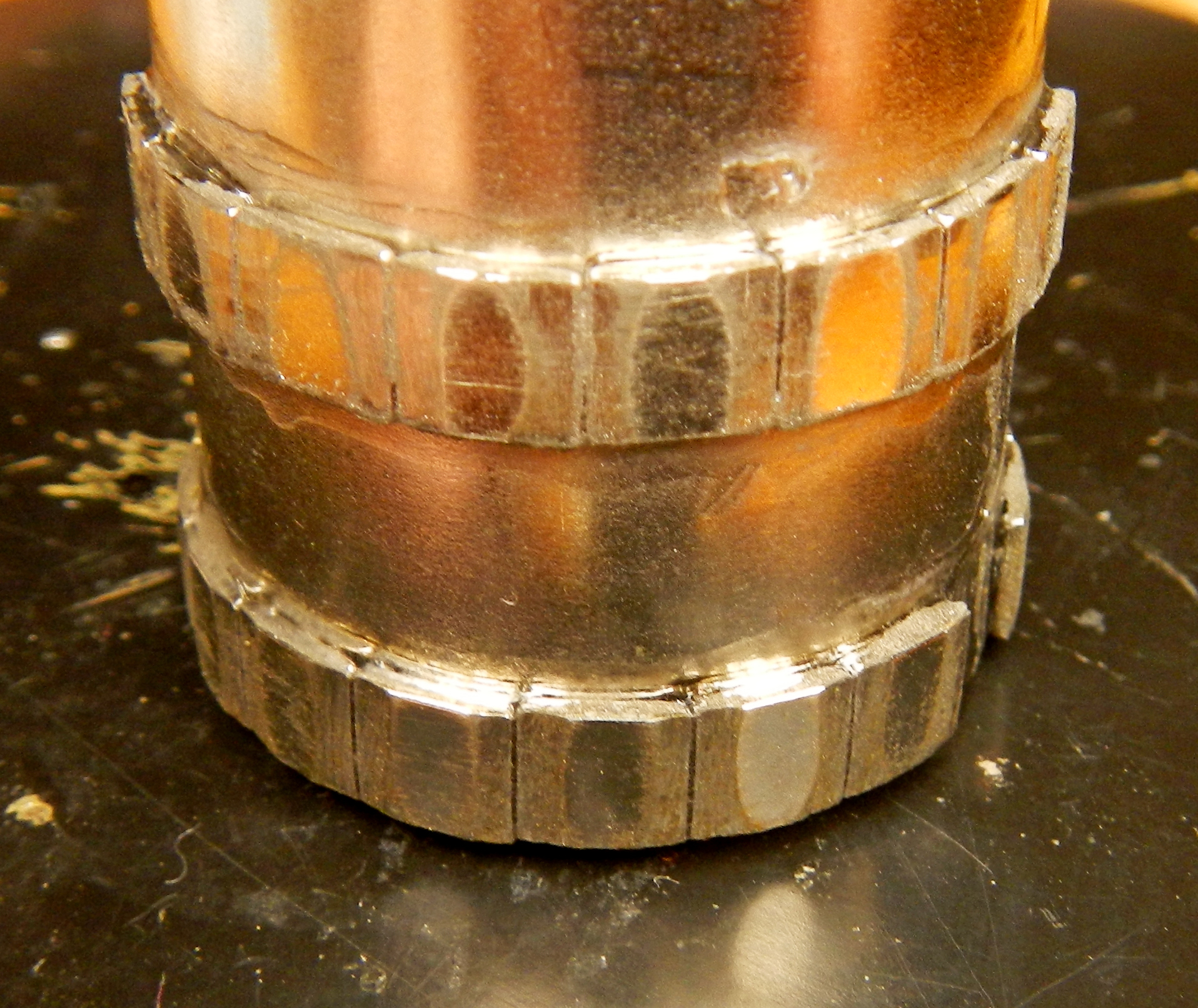

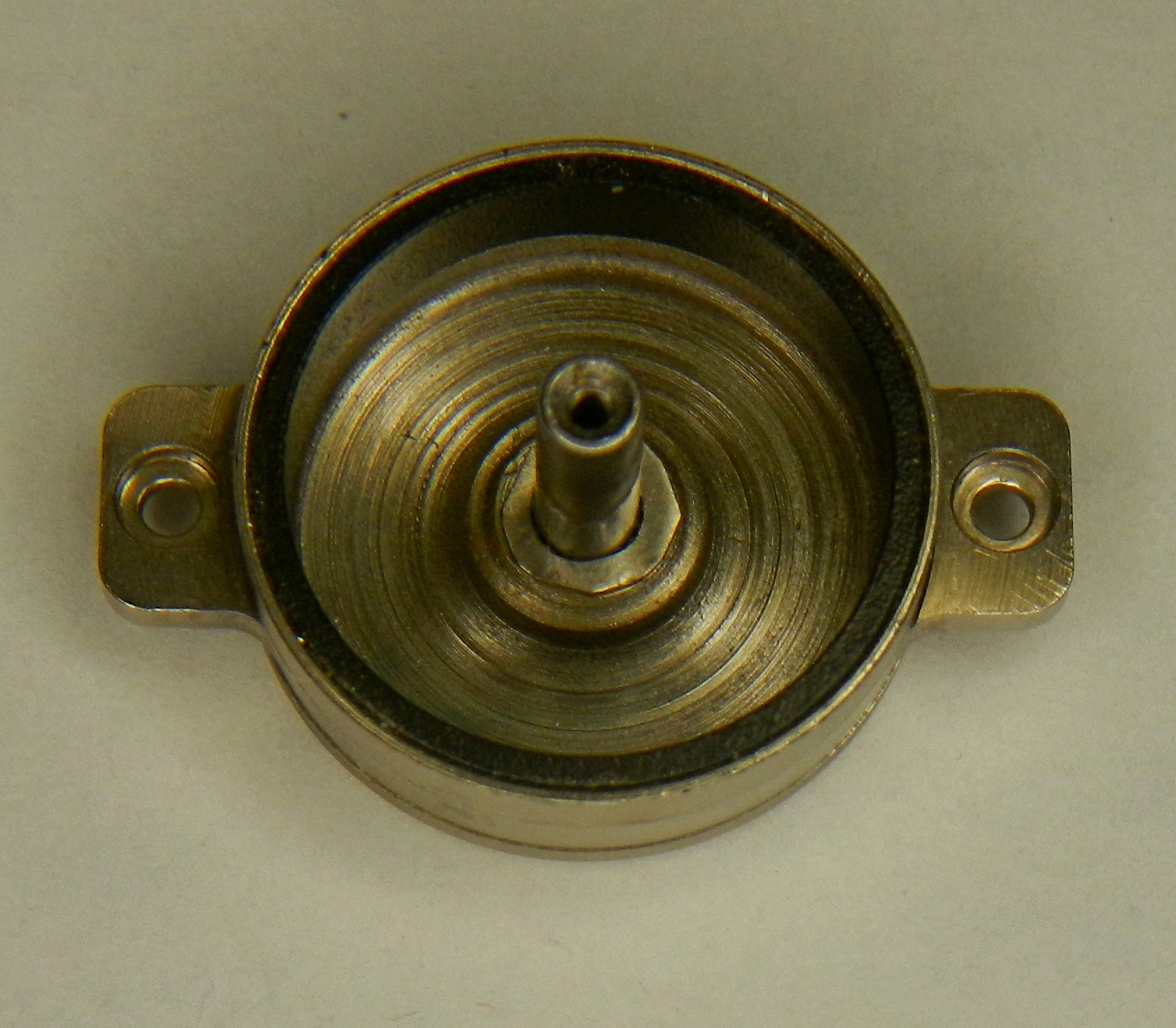

In three disassembled gimbal motors (yaw and roll motors inside are absolutely the same), there were three Hall sensors, that is, half that did not correspond to the datasheet. The correct 5053 sensor puts out 0.5 volts under one pole of the magnet and 2 volts under the other. Some of the sensors output 1 volt and 2.5 volts, respectively. If the sensors are the same - calibration is the easiest - the normal position of the camera is the balance of the signals from both sensors, approximately 1.4 volts. If the sensors are different, soldered crookedly, or the magnetic ring is defective, there will be problems.
