    I have a phantom 4 with a bad motor, the outside case is slowly sliding up exposing the windings. Is there a way to fix this or how do you replace the motor. I have a motor and I called DJI but they wanted me to send it in. Any help or suggestions.

  2. jwt873

    Joined:
    Apr 4, 2016
    Messages:
    413
    Likes Received:
    162
    Location:
    Woodlands, MB Canada
    You can buy P4 motors on line.. DJI doesn't seem to sell replacement motors, but you can get them at third party sellers such as Helipal DJIP4-024 2312S Motor (CW)

    Replacing them requires taking the shell apart and soldering wires.

  3. Jimww

    Joined:
    Apr 23, 2016
    Messages:
    13
    Likes Received:
    1
    I have the motor I need directions on how to replace it.

  4. jwt873

    Joined:
    Apr 4, 2016
    Messages:
    413
    Likes Received:
    162
    Location:
    Woodlands, MB Canada
    Oops.. I missed the part where you mentioned you had the motor.

    You have to split the shell in order to connect the wires. They need to be soldered. You can just follow the wires back from the motors to where they connect to the ESC's.

    Here's a video of a P4 being split in two.... (At the 1:40 point, they show how to remove the motors which is the final step in getting the top and bottom shells apart).


  5. Jimww

    Joined:
    Apr 23, 2016
    Messages:
    13
    Likes Received:
    1
  6. jwt873

    Joined:
    Apr 4, 2016
    Messages:
    413
    Likes Received:
    162
    Location:
    Woodlands, MB Canada
    I've been thinking more about this...

    You say that the case of the motor is lifting up exposing the coils. If so,you don't need to take the craft apart.

    The motor's case is held in place by a single 'C' clip on the bottom of the shaft. Your clip has obviously come off. (They shouldn't, but it's not unheard of).

    Just remove the motor as per the video I posted a link to. It's held on by three screws. The 'C' clip may be sitting there under the motor. If so, clip it back on. There's a chance that the clip was never installed. If there is no clip under the motor, just use the one from the good motor you have.

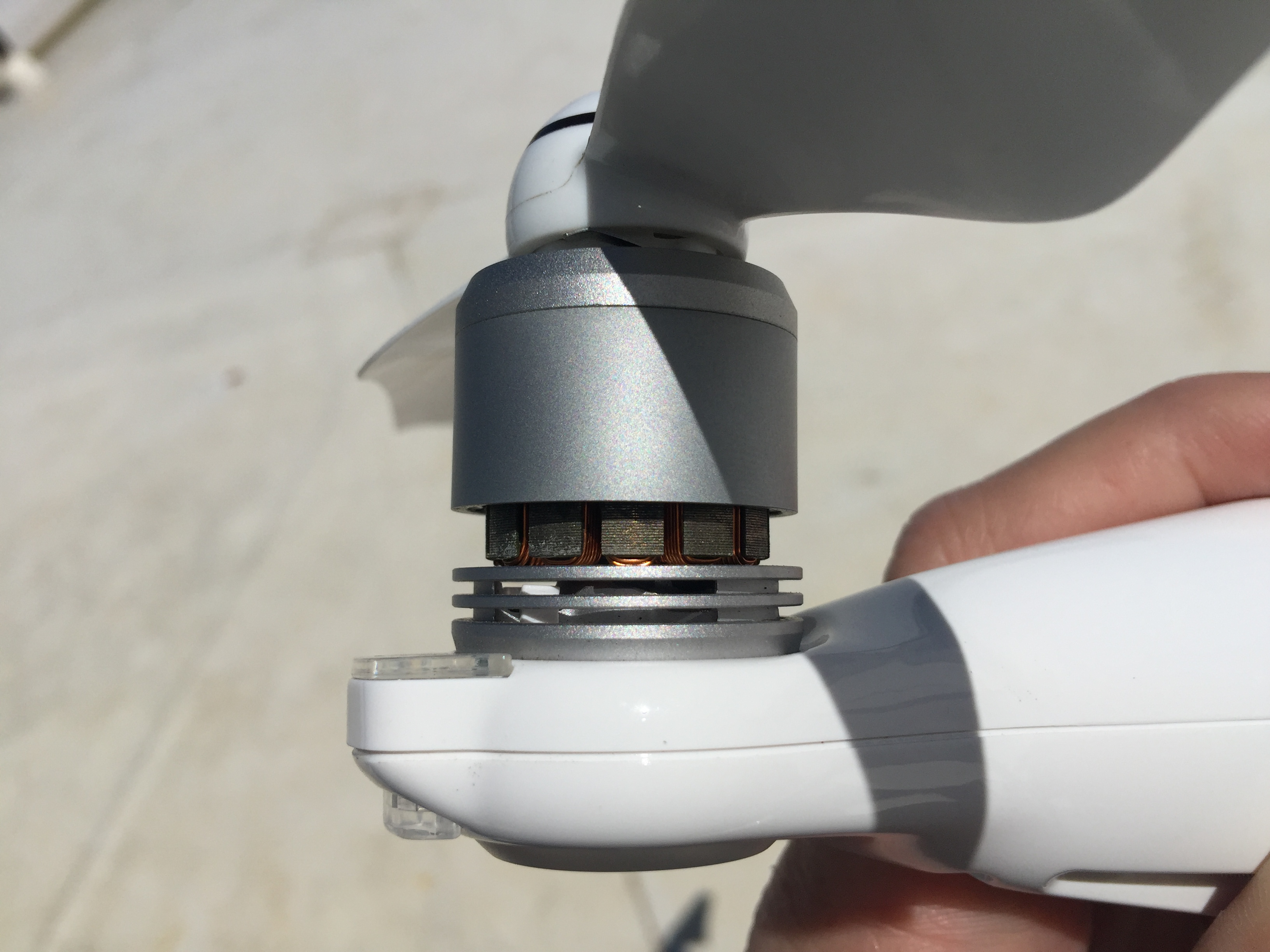

    The image below shows where the 'C' clip should be. It fits in a groove on the shaft. And.. if you're flying with the case lifting, DON'T.. With a missing clip, there's nothing but friction holding it on the motor body, It could fly off causing you to crash.



    #6 jwt873, Sep 26, 2016
    Last edited: Sep 26, 2016
  7. jwt873

    Joined:
    Apr 4, 2016
    Messages:
    413
    Likes Received:
    162
    Location:
    Woodlands, MB Canada
    And... More thinking..

    The case should also held on to the shaft with a set screw. I say should, because I haven't had a P4 motor apart yet. (but I have repaired other brushless motors). If there is one, it should be under the plastic prop mount.

    It could be that the bottom clip is still in place and is holding the shaft in place, but the set screw has come loose allowing the case to slide up the shaft....

  8. Jimww

    Joined:
    Apr 23, 2016
    Messages:
    13
    Likes Received:
    1
    Thank you I will check it out now and let you know.

  9. Jimww

    Joined:
    Apr 23, 2016
    Messages:
    13
    Likes Received:
    1

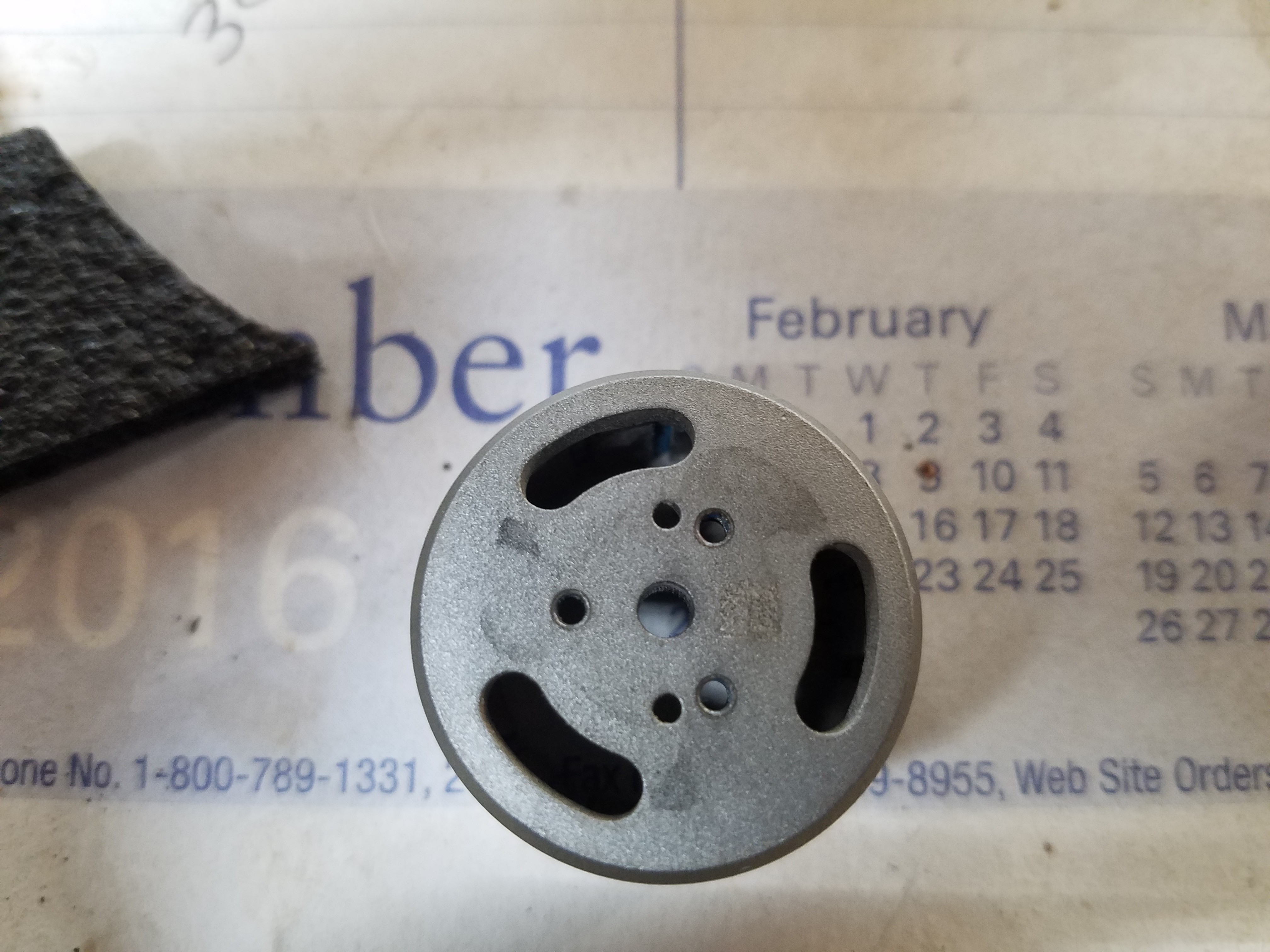

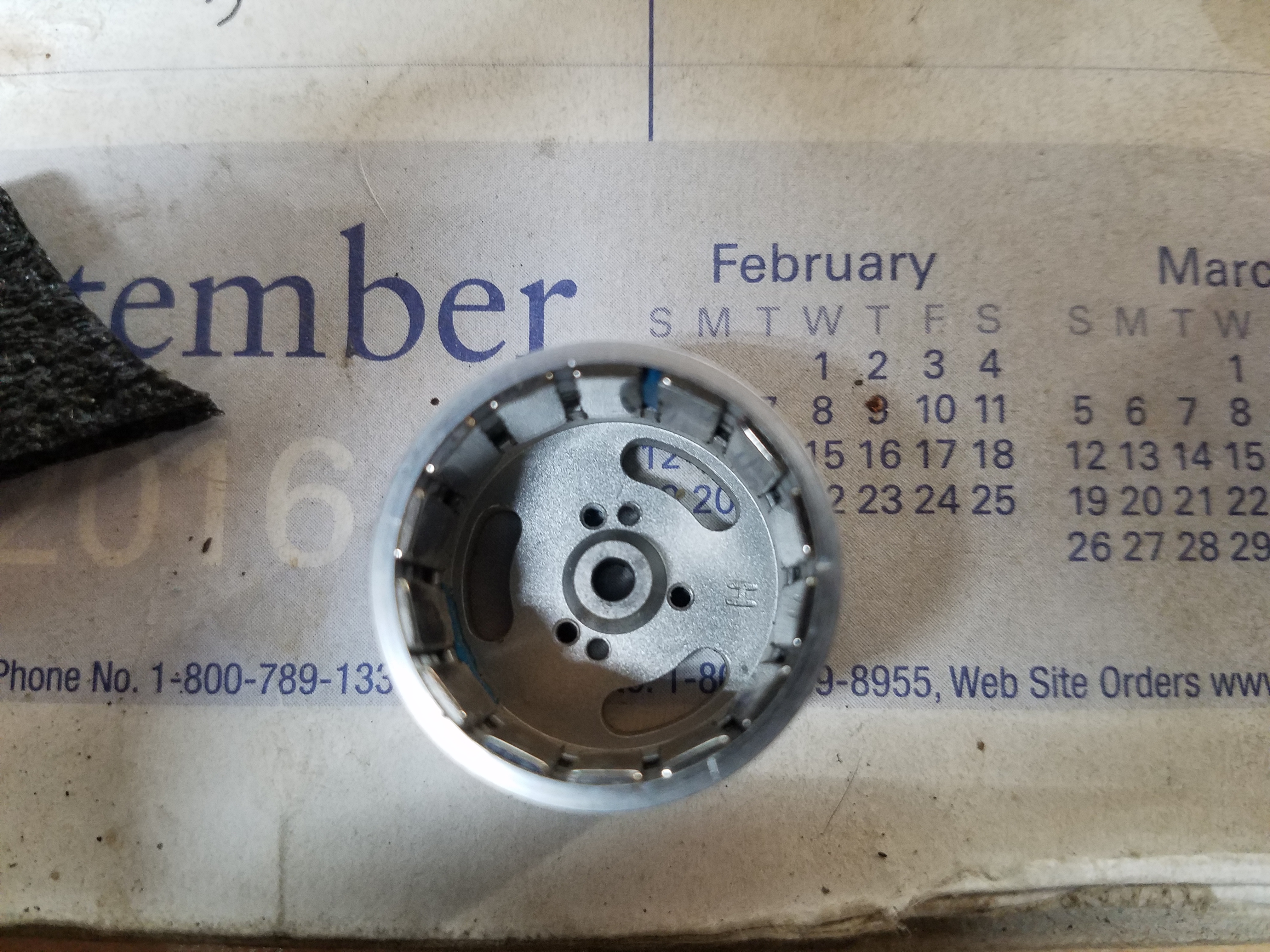

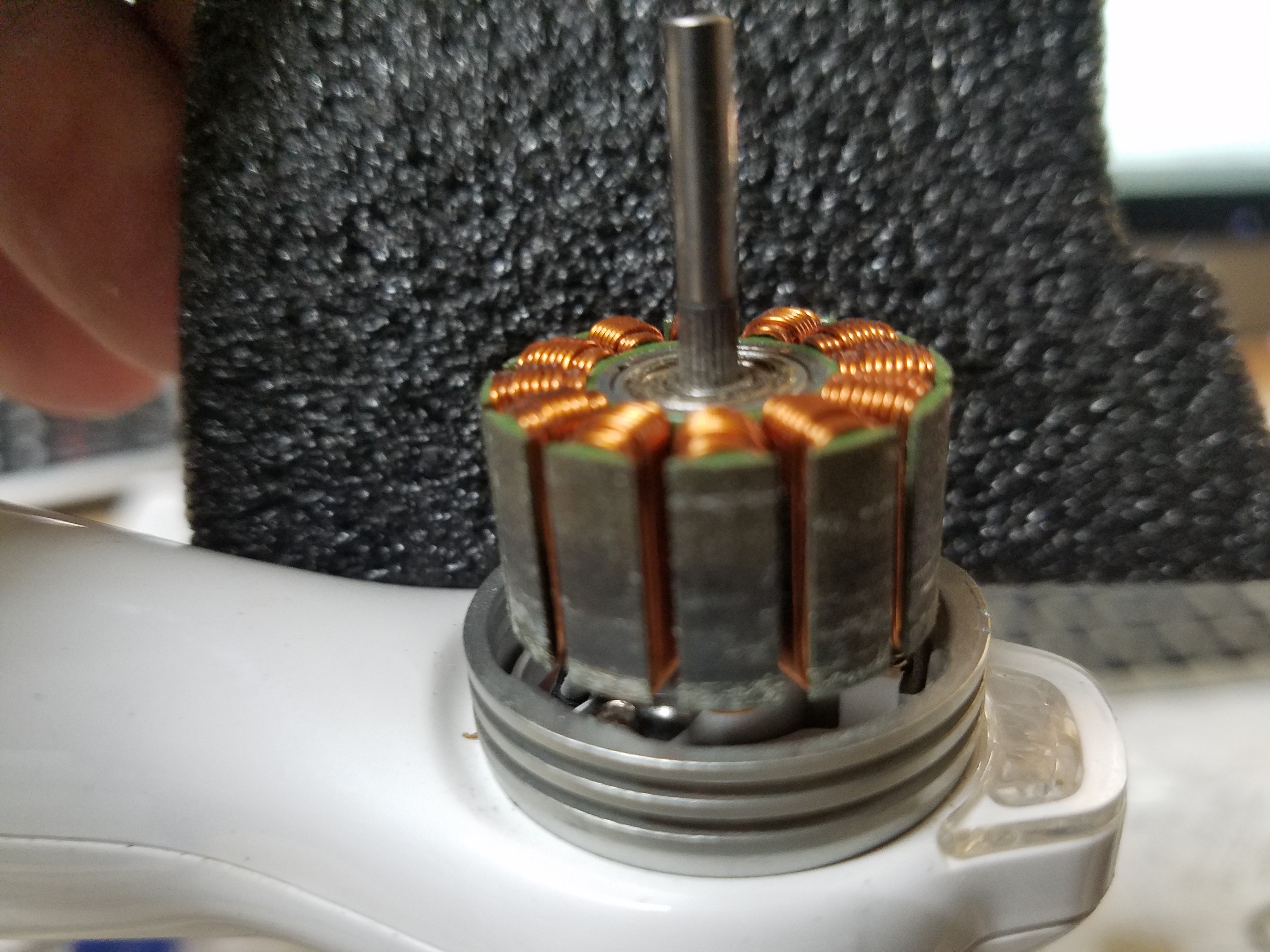

    ok I've taken the motor off and there is a c-clip but it is in place. I've taken the prop mounts off and there is no set screw, I've posted pic's and from what I can tell the shaft has splines and it looks like it might be pressed on. Is that possible? 20160927_101317_001.jpg 20160927_101331.jpg 20160927_101342.jpg

  10. flyhotstuff

    Joined:
    Dec 1, 2016
    Messages:
    2
    Likes Received:
    0
    i have the same issue, i noticed in flight that the drone jerked twice and could see it in the footage so i'm not sure it it hit something in the air. when i brought it down i noticed the outer shell was separating. It appears to be pressed in. Did you replace or repair the motor?

  11. Jimww

    Joined:
    Apr 23, 2016
    Messages:
    13
    Likes Received:
    1
    I ended up replacing the motor, as far as I can tell there is no way to secure the case back in place and also I didn't want to take a chance I don't think I could ever trust it again. The best would be to send it in for them to fix its not an easy job if you've never did this before.

  12. jbrown630

    Joined:
    Sep 7, 2016
    Messages:
    159
    Likes Received:
    55
    Location:
    Lake Wylie, SC
    I sent mine in for the peace of mind knowing the shell etc is secured properly. I've done plenty of electronics (laptop and cellphone screens) repair myself but dealing with plastic clips etc I'd rather not damage them and have a "gapped" shell where the clips won't hold.

  13. flyhotstuff

    Joined:
    Dec 1, 2016
    Messages:
    2
    Likes Received:
    0
    Interestingly because i live in the Caribbean and it's gonna take some time for the motor to reach; i used some slow drying jb weld and and carefully put it around the splines and though the hole of the cover. I did this after cleaning around the spline in the hole. Then i secured it with a zip tie to hold the position. It's been working great so far. As good as New! will replace the motor when i get the time. but so far i'm sure the bond is stronger than stock and it appears to be all balanced.

  14. addyb0y

    Joined:
    Nov 23, 2016
    Messages:
    9
    Likes Received:
    1
    Location:
    Columbus, Ohio


    Instructions on how to :

    Remove the case.
    Replace the motor.
    Soldering tips.

Loading...
