I CAN'T TAKE IT ANYMORE LOL.....I have searched and watched every friggin video I can find and everyone simply hooks up 1 stupid wire and voula, instant gimbal pitch control..Not me folks. I have tried every wire sent, every position on the gimbal and NAZA, I made sure the RC is set to upgraded remote on the DJI assistant and although the gimbal works great I still have no pitch control. PLEASE PLEASE anyone have any other ideas I am at a loss at this point. And of course there appears to be no repair places in the greater Orlando Fl. area that are still in business...

Sorry for the rant but I truly am at my wits end.



[J Dot]

Hey
I'm Sarasota, a bit west and south of you, I might be able to help!

First these are VISION PLUS CRAFTS? Right?

Next
Can you please send some pics of your gimbal, wiring, and hookups you've done? ( gimbal & Craft )

(. As well as Tx, Dial wheel Or 7th channel mod ( lever on rear X1 port?

Have you set your gimbal gain to 0 or 20 ?
( in Pc assistant ( gimbal Tab )

Also your End points on the gimbal pitch Up-Down ( min-max pitch )

Are you powering it seperately? Or jumping power through pitch port?

If you can provide a bit more info as described above, I'll get you going! If not I'll build you a set of plug-n-play wires!

No worries my friend,
I spent MONTHS, fooling with gimbals, simpleBGC boards and software, from cheap china ones, CNC ( nicer china ones ), to rotorpixel gimbals!
I was just like you
Ready to just smash it to pieces, but once I figured it all out, I found I was thinking too hard, as it really is quite simple, if you understand it, and how the software works!

Either way Glad to help!
J Dot



[crash1sttime]

Worst case scenario, during your experimenting you've damaged the board



[AMGINE]

Thank you for responding, I will get it hooked up all ip and get those nunbers and pics. Again thank you sook much !

Hey
I'm Sarasota, a bit west and south of you, I might be able to help!

First these are VISION PLUS CRAFTS? Right?

Next
Can you please send some pics of your gimbal, wiring, and hookups you've done? ( gimbal & Craft )

(. As well as Tx, Dial wheel Or 7th channel mod ( lever on rear X1 port?

Have you set your gimbal gain to 0 or 20 ?
( in Pc assistant ( gimbal Tab )

Also your End points on the gimbal pitch Up-Down ( min-max pitch )

Are you powering it seperately? Or jumping power through pitch port?

If you can provide a bit more info as described above, I'll get you going! If not I'll build you a set of plug-n-play wires!

No worries my friend,
I spent MONTHS, fooling with gimbals, simpleBGC boards and software, from cheap china ones, CNC ( nicer china ones ), to rotorpixel gimbals!
I was just like you
Ready to just smash it to pieces, but once I figured it all out, I found I was thinking too hard, as it really is quite simple, if you understand it, and how the software works!

Either way Glad to help!
J Dot



[AMGINE]

Had it all hooked up suddenly had pitch control, hit the write button and the gjmbal starting shaking



[AMGINE]



[AMGINE]



[AMGINE]

Hopefully the gimbal gurus can help please please please !



[J Dot]

I was not aware you are using alexmosSimpleBGC software,
I wish you told me first!

Anyhow,
These gimbals come set from the factory and each is different! Usually you save already saved profile ( if you did this than GREAT, just reload the profile )
If not we are in for a ride!
You must understand PID's , and is VERY complicated!

In one page of BGC software there is a frequency bar ( a horizontal line ) tells how things work together the smoother and straighter the line is the better, oh and to add there are several levels indicated by color! None are ever PERFECT per-say, but if you can get it close the gimbal should work great!

It's been a while since I fooled with it, but I'll try to hook my china gimbal tonight, and see if I can get you some settings! ( from mine ) although will be different , might get you close!

Watch the YouTube ( Alex moss simple BGC WALKTHROUGH ). Might have to watch a couple times, to understand it all! But will help you along the way, be back soon!

J Dot



[J Dot]

Ok,

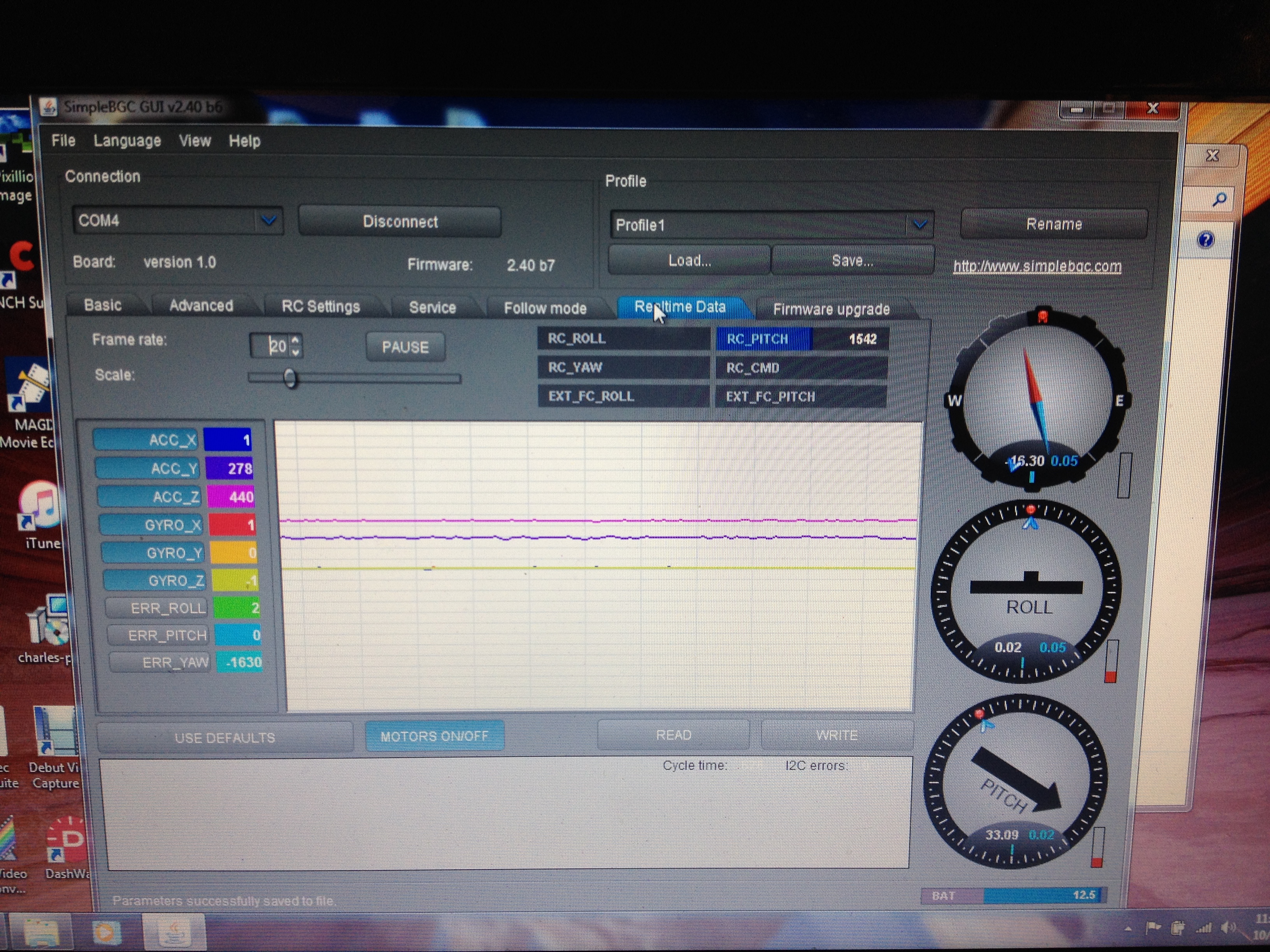

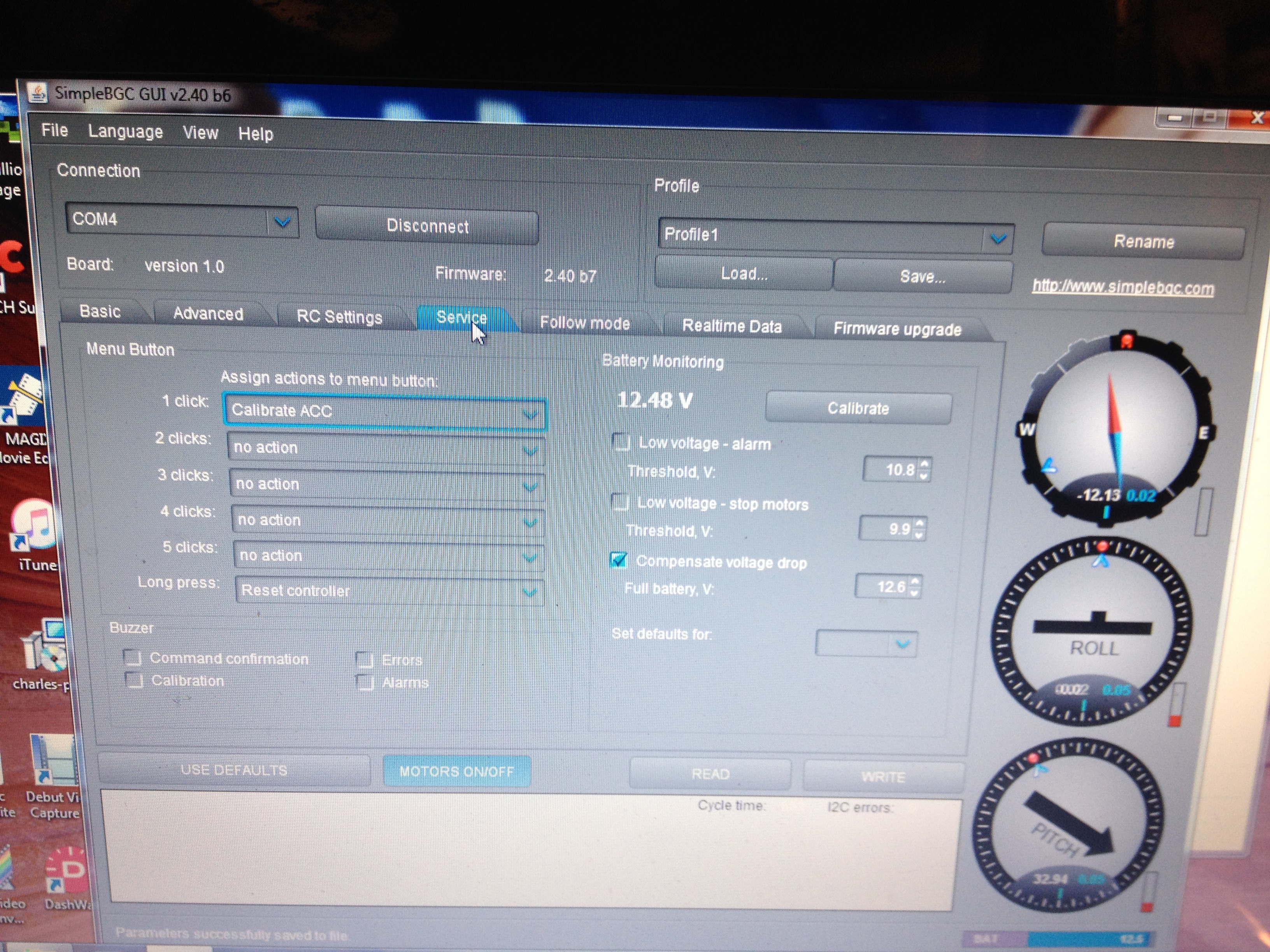

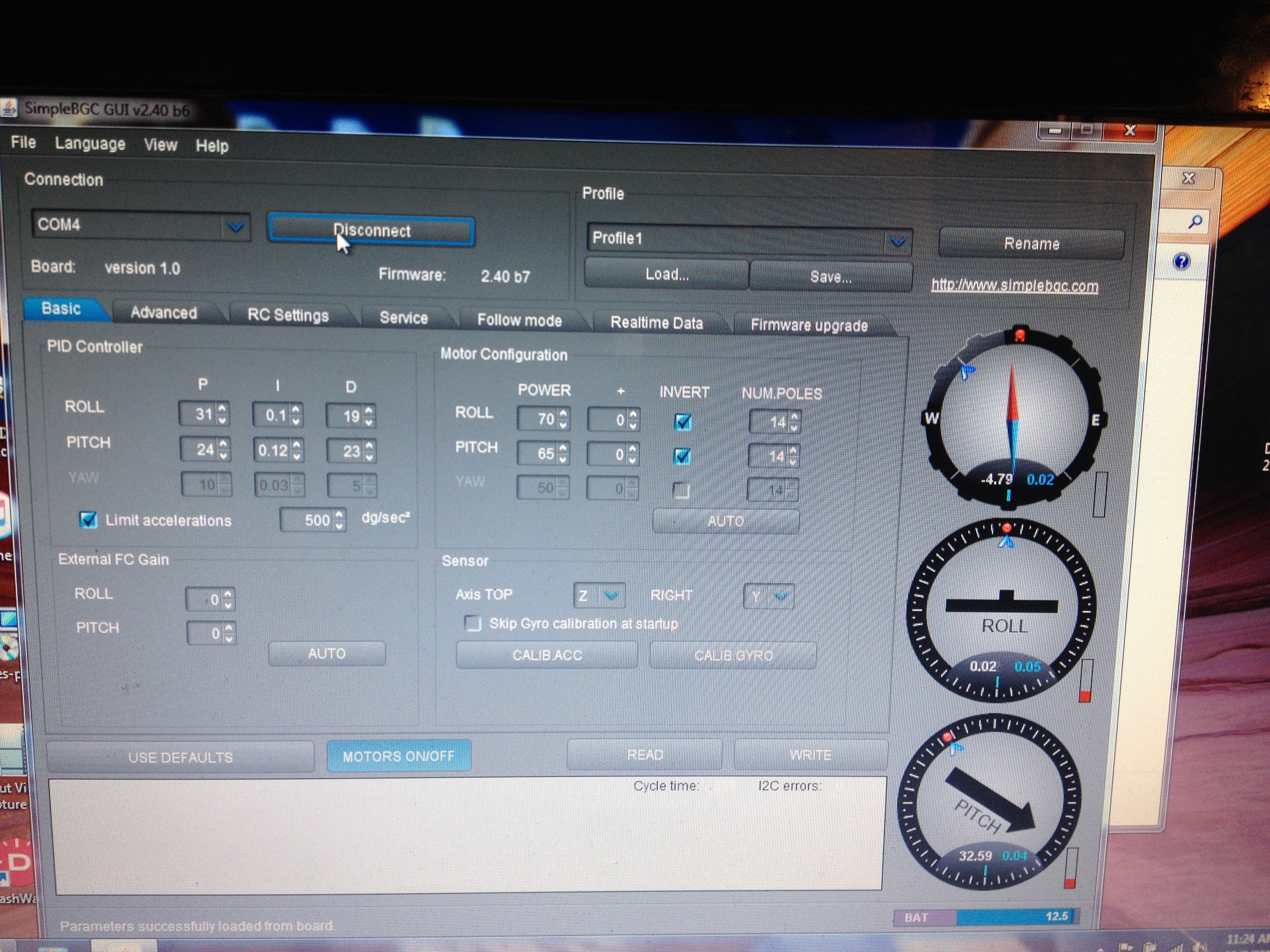

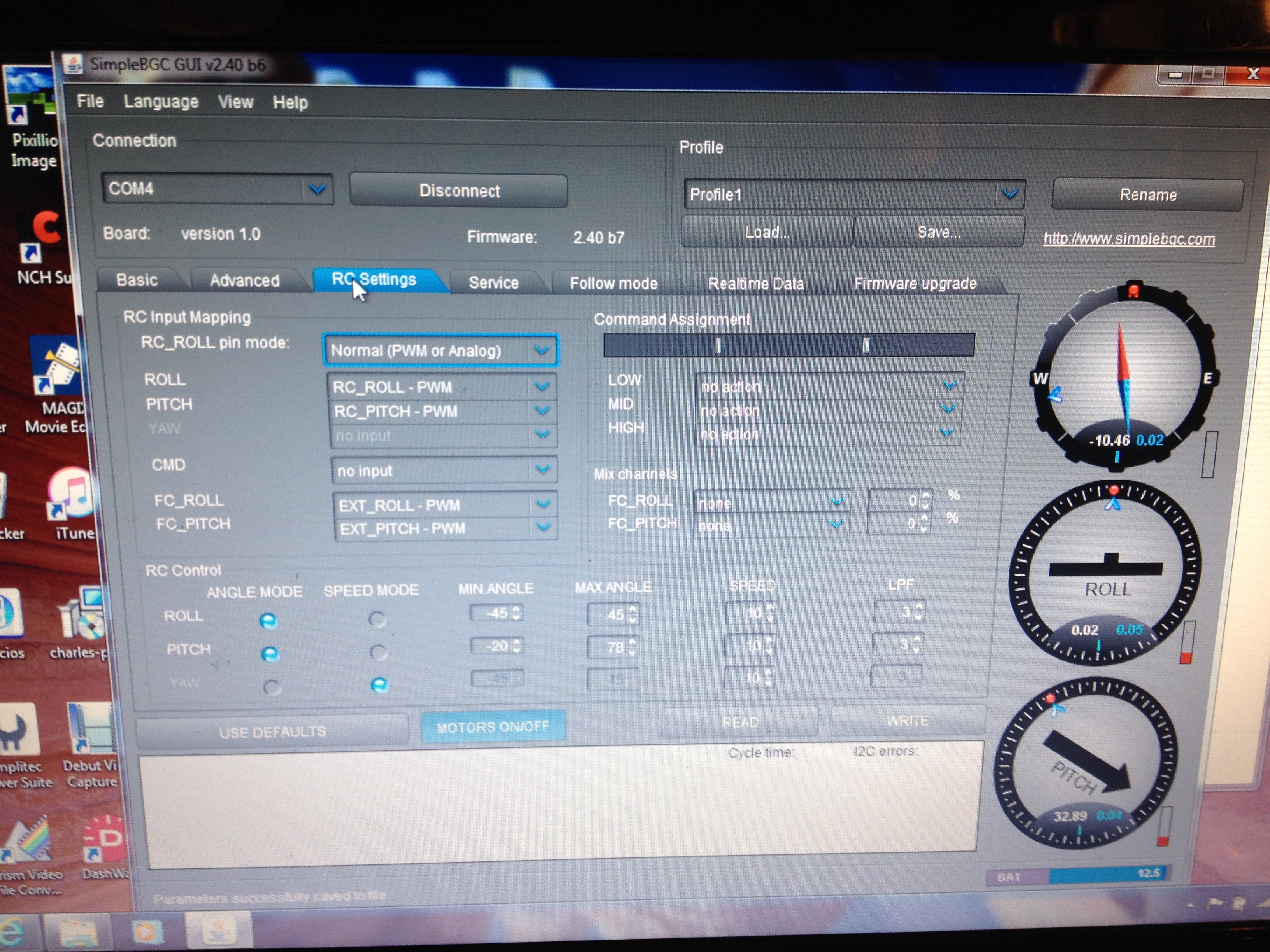

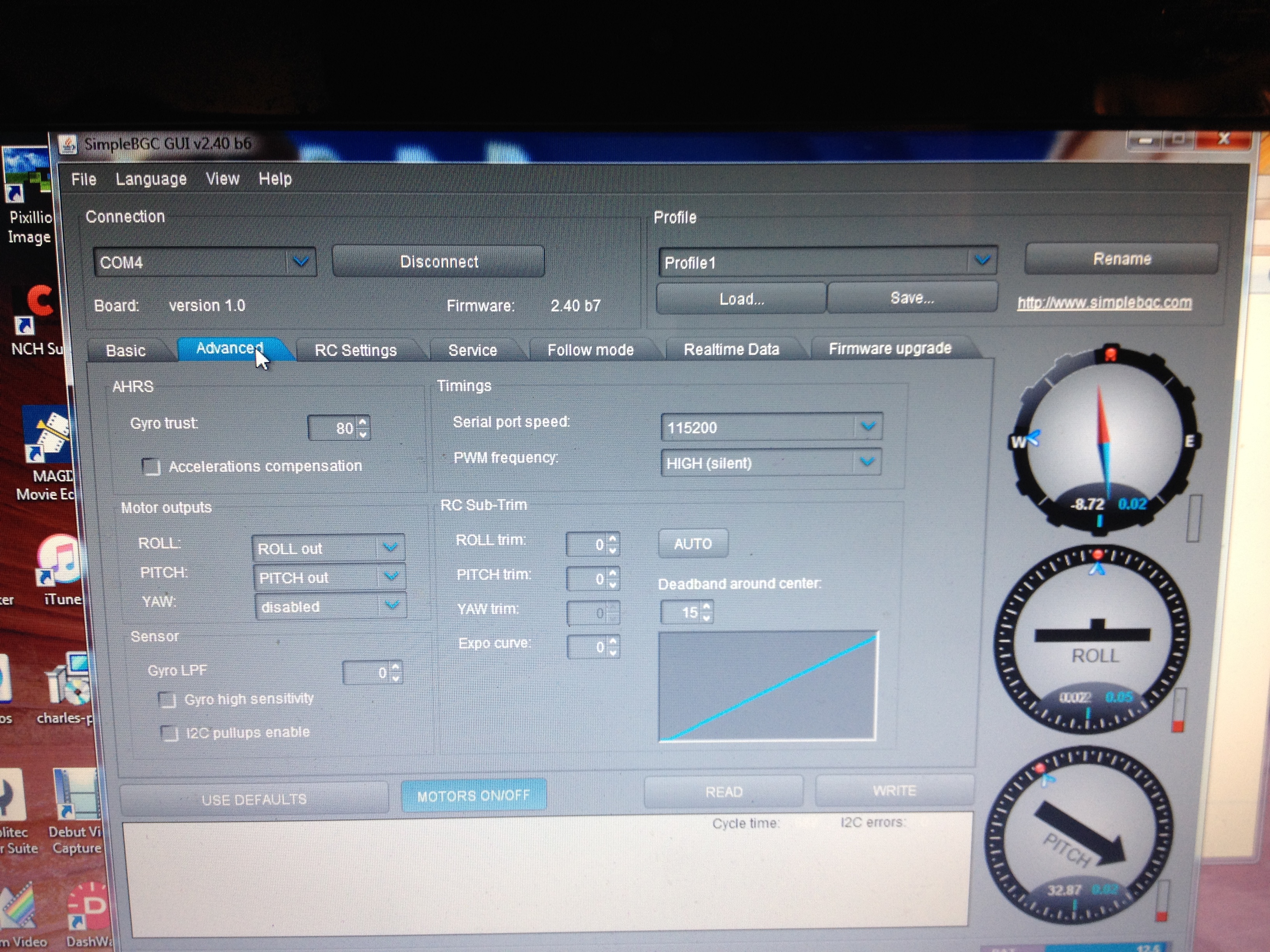

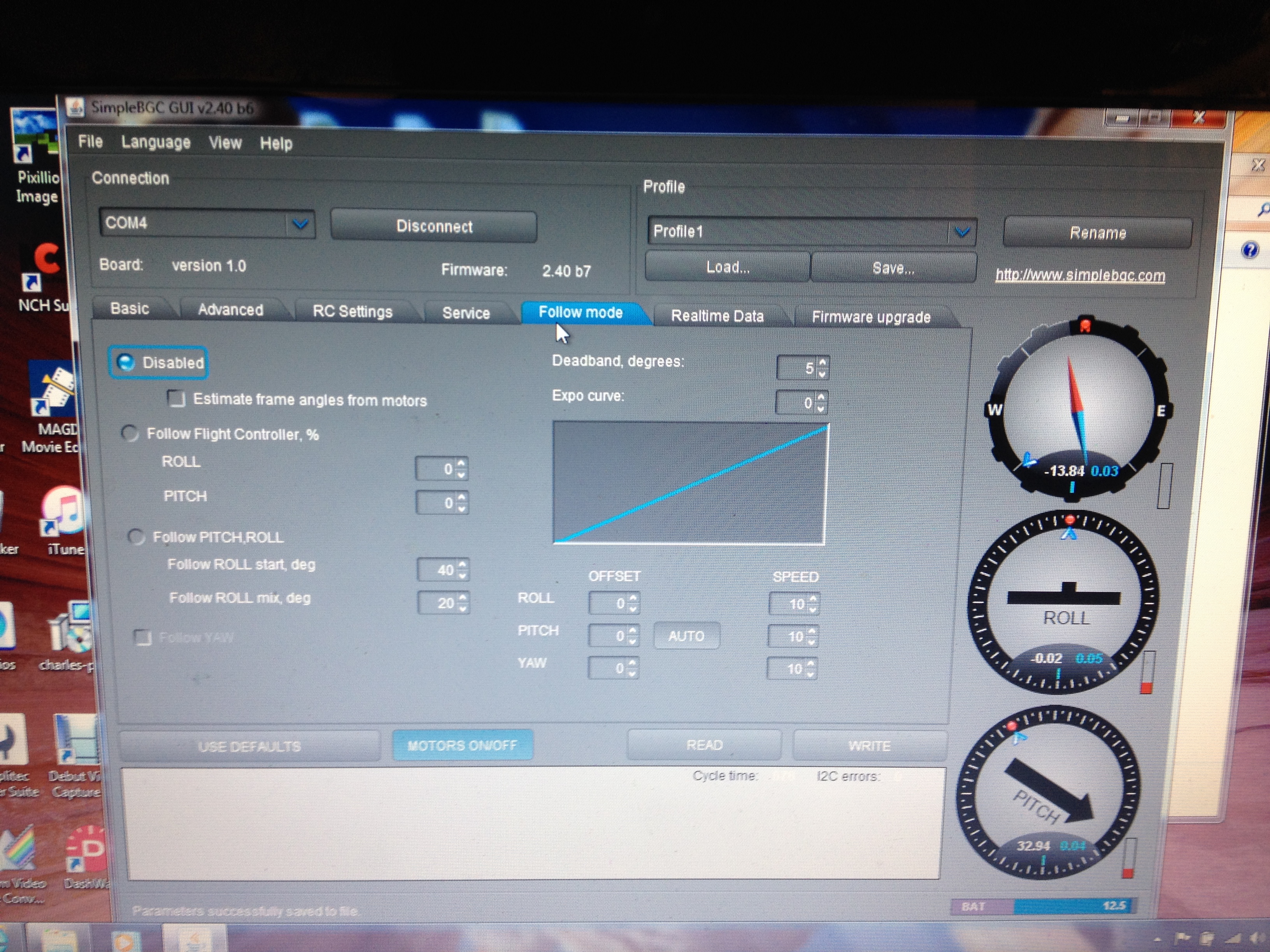

Here are each screenshots:
